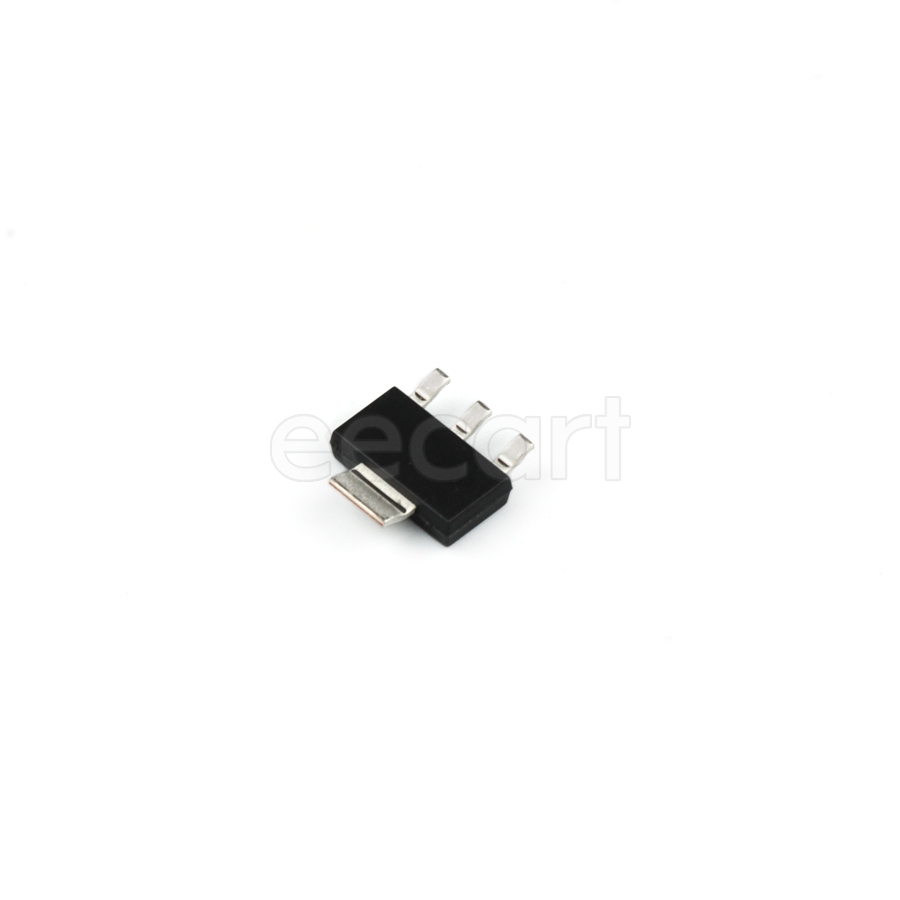

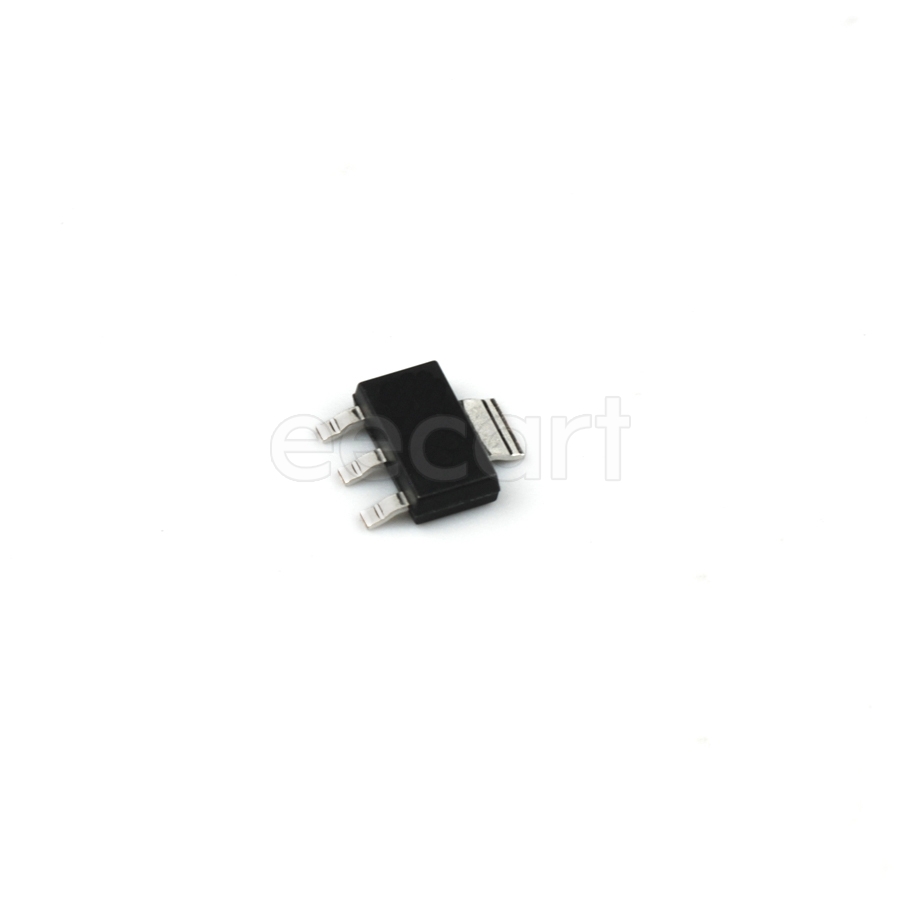

STN9360
Manufacturer:
STMicroelectronics
Mfr.Part #:
STN9360
Datasheet:
Description:
BJTs SOT-223-4 SMD/SMT PNP 1.6 W Collector Emitter Voltage (VCEO):600 V Emitter Base Voltage (VEBO):-7 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 4 |
| Packaging | Reel |
| RoHS | Compliant |
| Polarity | PNP |
| REACH SVHC | No SVHC |
| Number of Elements | 1 |
| Output Current | 1.4 A |
| Lifecycle Status | Production (Last Updated: 6 months ago) |
| Max Power Dissipation | 1.6 W |
| Power Dissipation | 1.6 W |
| Max Collector Current | 500 mA |
| Collector Emitter Breakdown Voltage | 600 V |
| Collector Emitter Voltage (VCEO) | 600 V |
| Max Breakdown Voltage | 600 V |
| Collector Emitter Saturation Voltage | -500 mV |
| Emitter Base Voltage (VEBO) | -7 V |
| hFE Min | 200 |
| Schedule B | 8541290080 |
| Max Cutoff Collector Current | 10 nA |
| Transistor Type | PNP |
Stock: 615
Distributors
pcbx
pcbxUnit Price$0.47011
Ext.Price$0.47011
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.47011 | $0.47011 |
| 10 | $0.44340 | $4.43400 |
| 25 | $0.41821 | $10.45525 |
| 50 | $0.39446 | $19.72300 |
| 100 | $0.35081 | $35.08100 |
| 300 | $0.31199 | $93.59700 |
| 500 | $0.27747 | $138.73500 |
| 1000 | $0.24677 | $246.77000 |
| 3000 | $0.23295 | $698.85000 |
| 5000 | $0.21991 | $1099.55000 |
