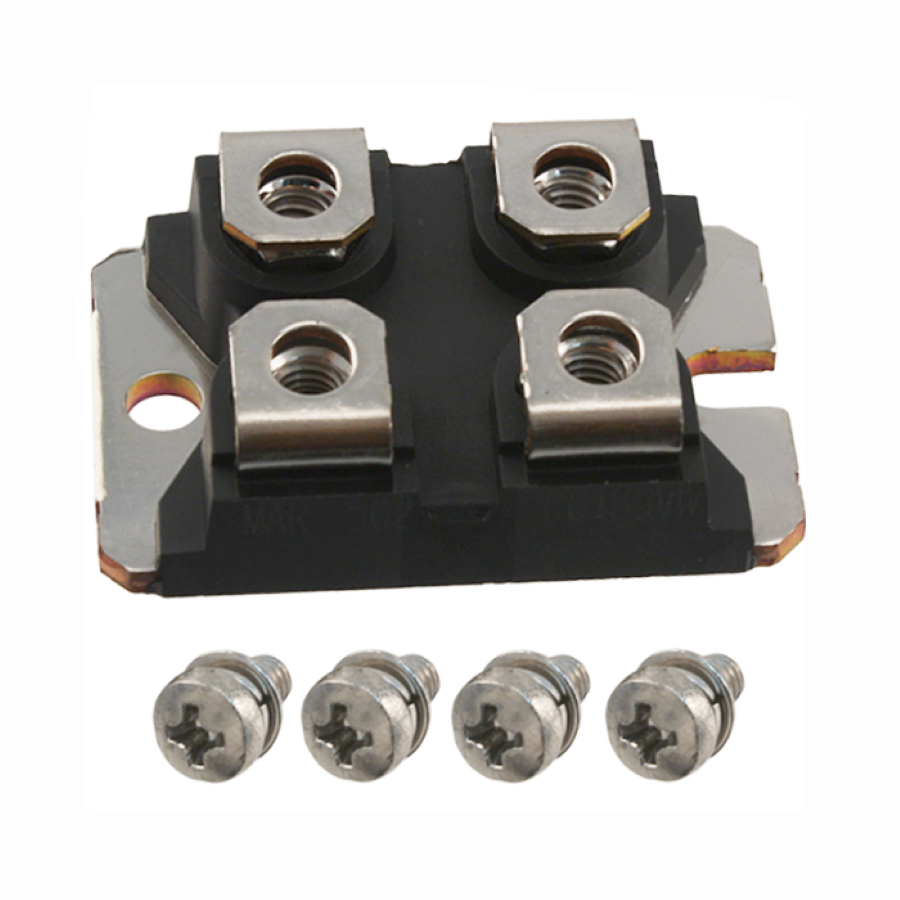

STPS120L15TV
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPS120L15TV
Datasheet:
Description:
Schottky Diodes ISOTOP SMD/SMT Forward Current:60 A Forward Voltage:430 mV Max Repetitive Reverse Voltage (Vrrm):15 V Max Forward Surge Current (Ifsm):1.2 kA
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 15 V |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 4 |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| Current Rating | 60 A |
| Output Current | 1.4 A |
| Forward Current | 60 A |
| Forward Voltage | 430 mV |
| Average Rectified Current | 60 A |
| Max Reverse Voltage (DC) | 15 V |
| Max Reverse Leakage Current | 22 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 15 V |
| Max Surge Current | 1.2 kA |
| Forward Surge Current (Ifsm) | 1.2 kA |
| Peak Non-Repetitive Surge Current | 1.2 kA |
| Reverse Current | 22 mA |
Stock: 74
Distributors
pcbx
pcbxUnit Price$13.10436
Ext.Price$13.10436
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $13.10436 | $13.10436 |
| 10 | $9.46236 | $94.62360 |
| 25 | $8.77306 | $219.32650 |
| 50 | $8.13397 | $406.69850 |
| 100 | $7.54133 | $754.13300 |
| 300 | $7.54020 | $2262.06000 |
| 500 | $7.53907 | $3769.53500 |
| 1000 | $7.53794 | $7537.94000 |
| 3000 | $7.53681 | $22610.43000 |
| 5000 | $7.53568 | $37678.40000 |
| 10000 | $7.53450 | $75345.00000 |
