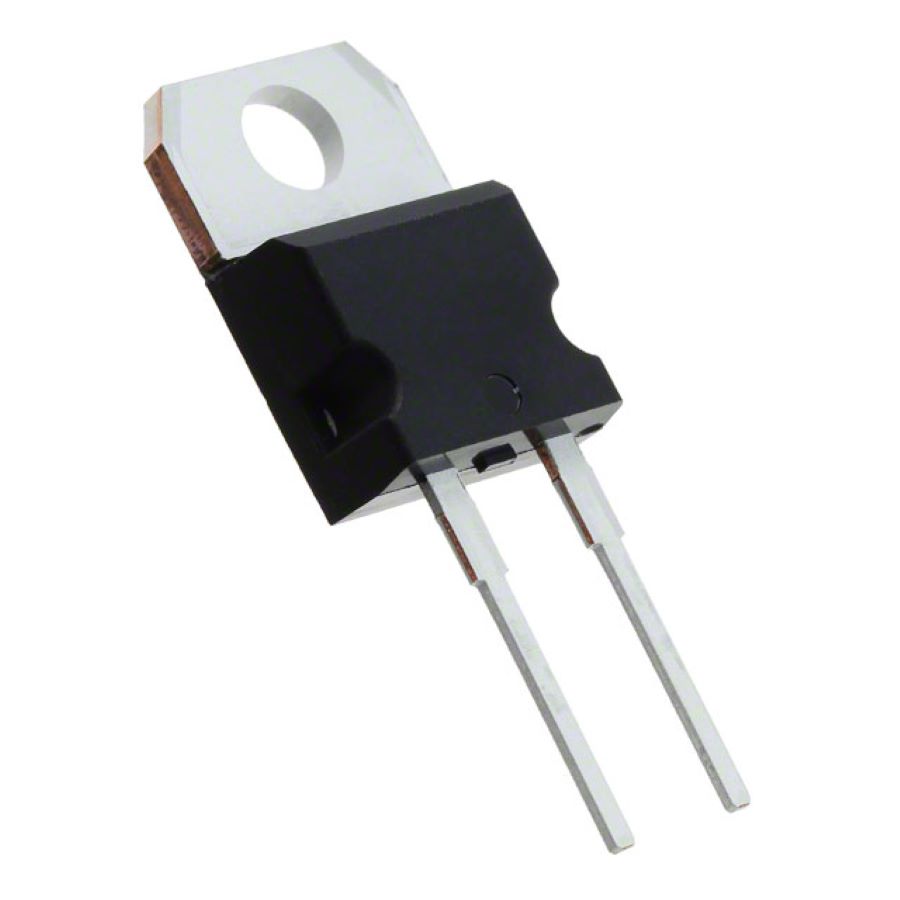

STPS20120D
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPS20120D
Datasheet:
Description:
Rectifier Diodes TO-220AC-2 Through Hole Schottky Diodes Single Forward Current:20 A Forward Voltage:930 mV Reverse Voltage:120 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 120 V |
| Length | 10.4 mm |
| Width | 4.6 mm |
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 2 |
| Height | 15.75 mm |
| Packaging | Tube |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Schottky Diodes |
| Current Rating | 20 A |
| Output Current | 20 A |
| Forward Current | 20 A |
| Forward Voltage | 930 mV |
| Average Rectified Current | 20 A |
| Max Reverse Voltage (DC) | 120 V |
| Max Reverse Leakage Current | 20 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 120 V |
| Element Configuration | Single |
| Max Surge Current | 200 A |
| Forward Surge Current (Ifsm) | 200 A |
| Reverse Voltage | 120 V |
| Peak Non-Repetitive Surge Current | 200 A |
| Reverse Current | 20 µA |
| Schedule B | 8541100080 |
Stock: 470
Distributors
pcbx
pcbxUnit Price$0.81178
Ext.Price$0.81178
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.81178 | $0.81178 |
| 10 | $0.65885 | $6.58850 |
| 25 | $0.60541 | $15.13525 |
| 50 | $0.55630 | $27.81500 |
| 100 | $0.51119 | $51.11900 |
| 300 | $0.48766 | $146.29800 |
| 500 | $0.46521 | $232.60500 |
| 1000 | $0.44077 | $440.77000 |
