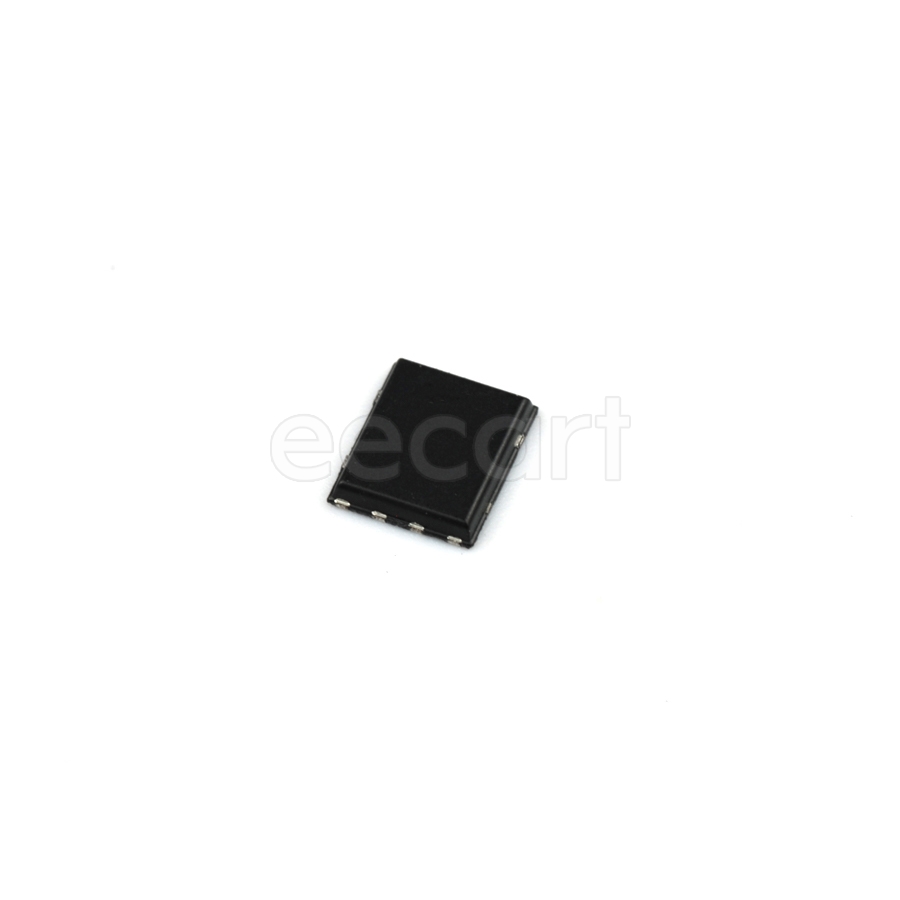

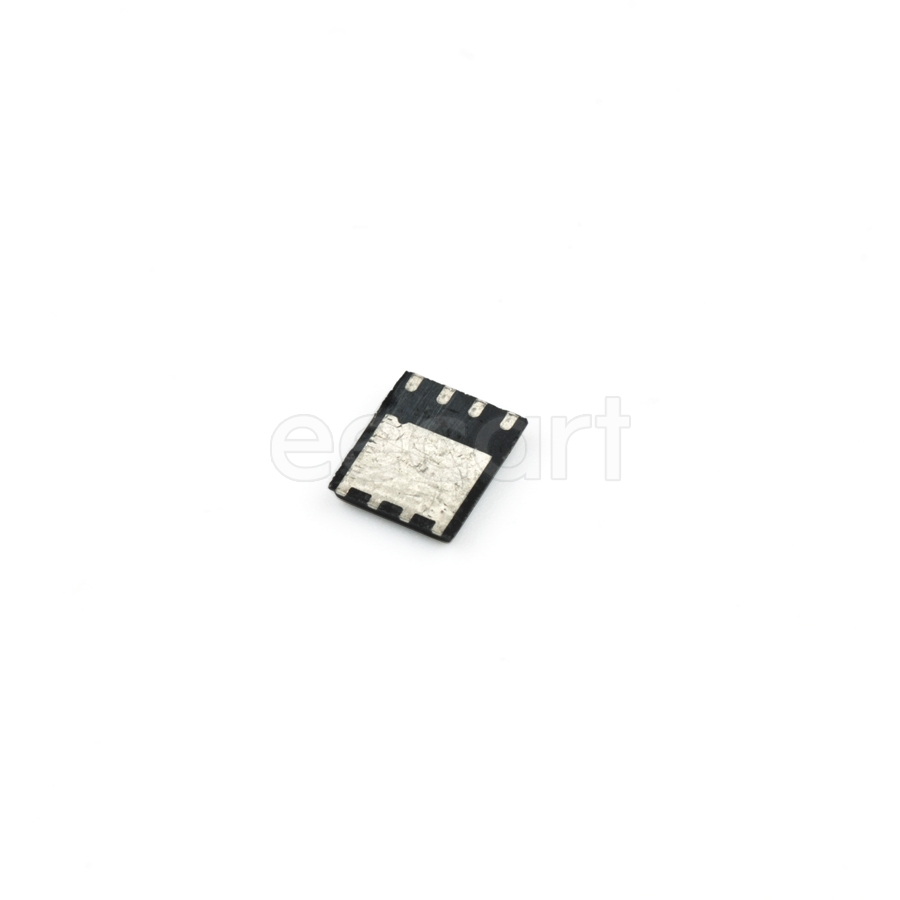

STPS8L30DEE-TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPS8L30DEE-TR
Datasheet:
Description:
Schottky Diodes PowerVDFN-8 SMD/SMT Single Forward Current:8 A Forward Voltage:390 mV Max Repetitive Reverse Voltage (Vrrm):30 V Max Forward Surge Current (Ifsm):100 A
| Parameter | Value |
|---|---|
| Length | 3.4 mm |
| Width | 3.4 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 8 |
| Height | 1.05 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.4 A |
| Forward Current | 8 A |
| Forward Voltage | 390 mV |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Average Rectified Current | 8 A |
| Max Reverse Leakage Current | 1 mA |
| Max Repetitive Reverse Voltage (Vrrm) | 30 V |
| Element Configuration | Single |
| Max Surge Current | 100 A |
| Forward Surge Current (Ifsm) | 100 A |
| Max Junction Temperature (Tj) | 150 °C |
| Peak Non-Repetitive Surge Current | 100 A |
| Reverse Current | 1 mA |
| Schedule B | 8541100080 |
Stock: 2193
Distributors
pcbx
pcbxUnit Price$0.55057
Ext.Price$0.55057
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55057 | $0.55057 |
| 10 | $0.34539 | $3.45390 |
| 25 | $0.34511 | $8.62775 |
| 50 | $0.34483 | $17.24150 |
| 100 | $0.34454 | $34.45400 |
| 300 | $0.33412 | $100.23600 |
| 500 | $0.32402 | $162.01000 |
| 1000 | $0.31120 | $311.20000 |
| 3000 | $0.28640 | $859.20000 |
| 5000 | $0.24793 | $1239.65000 |
