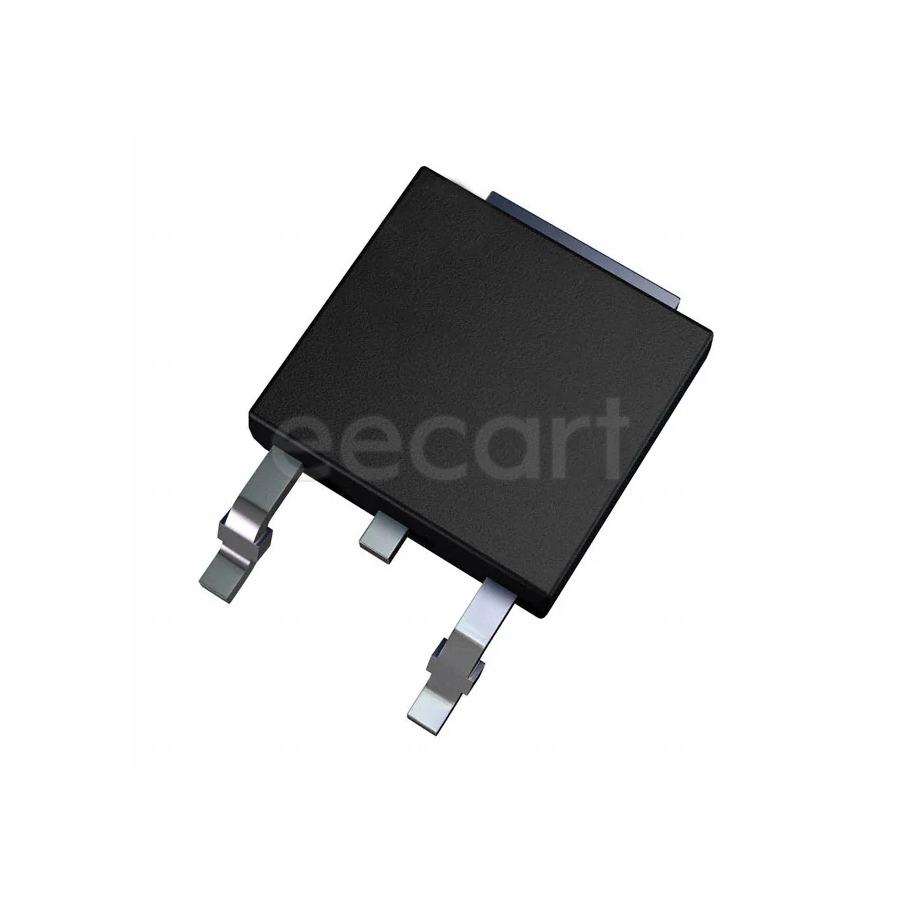

STPSC6H065B-TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPSC6H065B-TR
Datasheet:
Description:
Schottky Diodes TO-252-3 SMD/SMT Single Forward Current:6 A Forward Voltage:1.75 V Max Repetitive Reverse Voltage (Vrrm):650 V Max Forward Surge Current (Ifsm):60 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Output Current | 1.4 A |
| Forward Current | 6 A |
| Forward Voltage | 1.75 V |
| Reverse Recovery Time | 0 s |
| Average Rectified Current | 6 A |
| Max Reverse Voltage (DC) | 650 V |
| Max Reverse Leakage Current | 60 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 650 V |
| Element Configuration | Single |
| Max Surge Current | 60 A |
| Forward Surge Current (Ifsm) | 60 A |
| Peak Non-Repetitive Surge Current | 400 A |
| Reverse Current | 60 µA |
| Schedule B | 8541100080 |
Stock: 2792
Distributors
pcbx
pcbxUnit Price$1.76457
Ext.Price$1.76457
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.76457 | $1.76457 |
| 10 | $0.76944 | $7.69440 |
| 25 | $0.73013 | $18.25325 |
| 50 | $0.69283 | $34.64150 |
| 100 | $0.65744 | $65.74400 |
| 300 | $0.64011 | $192.03300 |
| 500 | $0.62324 | $311.62000 |
| 1000 | $0.61897 | $618.97000 |
| 3000 | $0.58603 | $1758.09000 |
| 5000 | $0.55485 | $2774.25000 |
