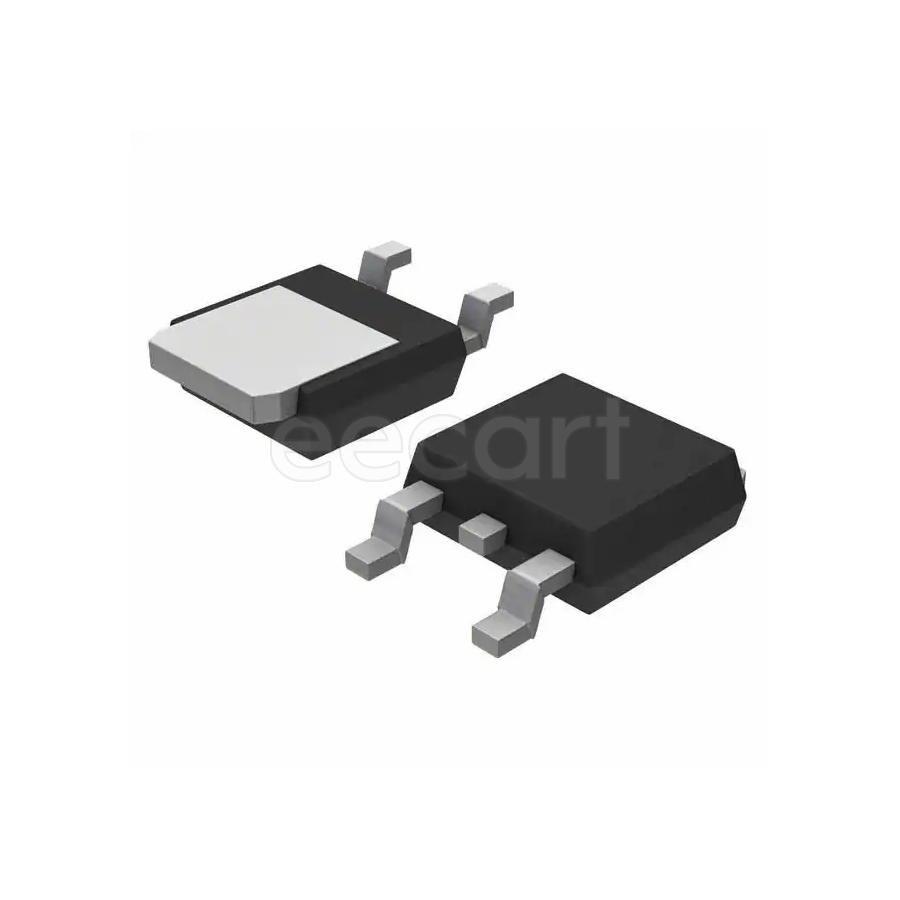

STPSC8H065B-TR
Manufacturer:
STMicroelectronics
Mfr.Part #:
STPSC8H065B-TR
Datasheet:
Description:
Schottky Diodes DPAK SMD/SMT Single Forward Current:8 A Forward Voltage:1.75 V Max Repetitive Reverse Voltage (Vrrm):650 V Max Forward Surge Current (Ifsm):420 A
| Parameter | Value |
|---|---|
| Max Operating Temperature | 175 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 3 |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Type | Schottky Rectifier |
| Forward Current | 8 A |
| Forward Voltage | 1.75 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Reverse Recovery Time | 0 s |
| Average Rectified Current | 8 A |
| Max Reverse Leakage Current | 80 µA |
| Max Repetitive Reverse Voltage (Vrrm) | 650 V |
| Element Configuration | Single |
| Max Surge Current | 75 A |
| Forward Surge Current (Ifsm) | 420 A |
| Reverse Voltage | 650 V |
| Max Junction Temperature (Tj) | 175 °C |
| Peak Non-Repetitive Surge Current | 75 A |
| Reverse Current | 80 µA |
Stock: 4875
Distributors
pcbx
pcbxUnit Price$1.48929
Ext.Price$1.48929
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.48929 | $1.48929 |
| 10 | $1.07636 | $10.76360 |
| 25 | $1.02146 | $25.53650 |
| 50 | $0.96936 | $48.46800 |
| 100 | $0.91990 | $91.99000 |
| 300 | $0.87521 | $262.56300 |
| 500 | $0.83270 | $416.35000 |
| 1000 | $0.77627 | $776.27000 |
| 3000 | $0.74357 | $2230.71000 |
| 5000 | $0.71225 | $3561.25000 |
| 10000 | $0.68223 | $6822.30000 |
