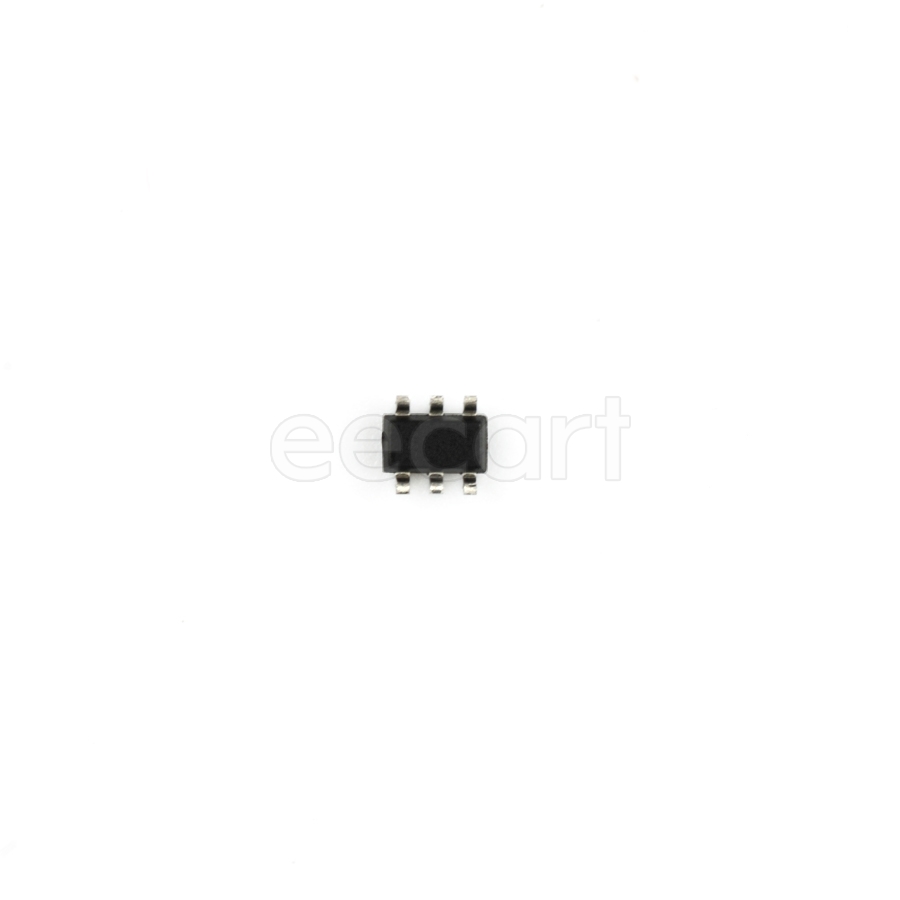

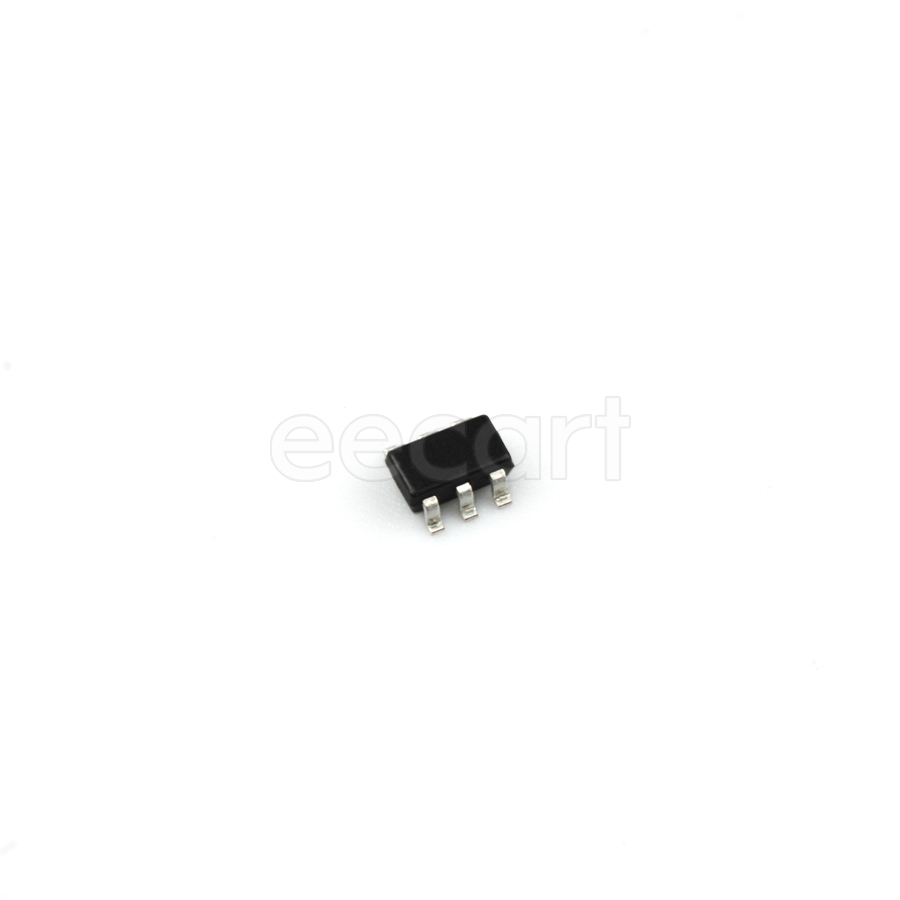

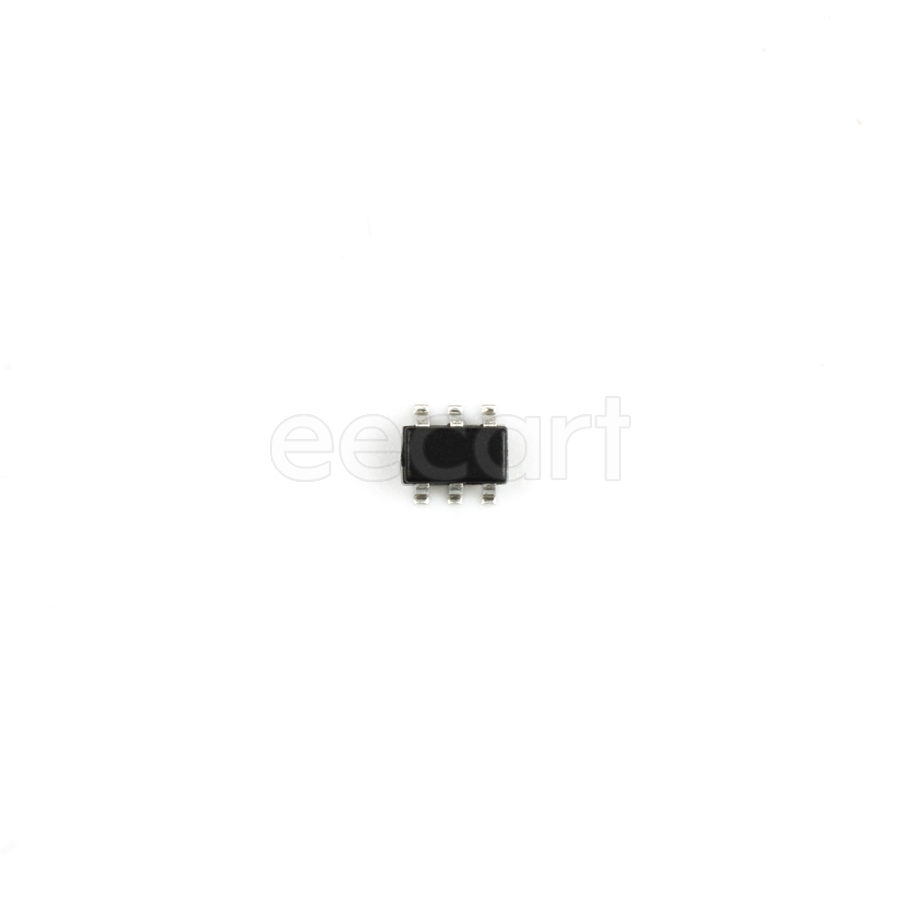

STT818B
Manufacturer:
STMicroelectronics
Mfr.Part #:
STT818B
Datasheet:
Description:
BJTs SOT-23-6 SMD/SMT PNP 1.2 W Collector Base Voltage (VCBO):30 V Collector Emitter Voltage (VCEO):30 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | -30 V |
| Length | 3.05 mm |
| Width | 1.75 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 6 |
| Height | 1.3 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | PNP |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | -3 A |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 1.2 W |
| Power Dissipation | 1.2 W |
| Max Collector Current | 3 A |
| Collector Emitter Breakdown Voltage | 30 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 30 V |
| Max Breakdown Voltage | 30 V |
| Collector Base Voltage (VCBO) | 30 V |
| Collector Emitter Saturation Voltage | -210 mV |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 100 |
| Max Cutoff Collector Current | 100 nA |
| Transistor Type | PNP |
Stock: 1395
Distributors
pcbx
pcbxUnit Price$0.55057
Ext.Price$0.55057
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.55057 | $0.55057 |
| 10 | $0.34368 | $3.43680 |
| 50 | $0.27693 | $13.84650 |
| 100 | $0.22314 | $22.31400 |
| 500 | $0.17099 | $85.49500 |
| 1000 | $0.15474 | $154.74000 |
| 3000 | $0.13251 | $397.53000 |
| 5000 | $0.11805 | $590.25000 |
| 10000 | $0.10516 | $1051.60000 |
