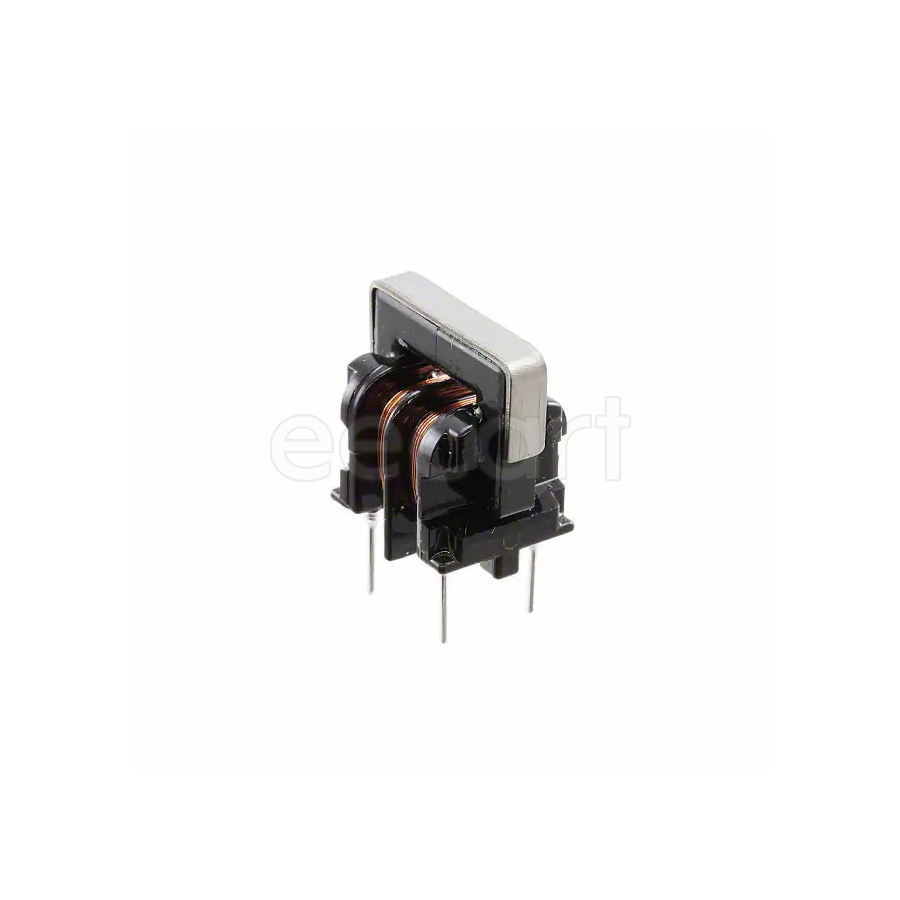

SU9V-07010
Manufacturer:
KEMET
Mfr.Part #:
SU9V-07010
Datasheet:
Description:
Common Mode Chokes Through Hole Max Current Rating:700 mA Number of Lines:2 600 mΩ 1 mH
| Parameter | Value |
|---|---|
| Length | 16.9926 mm |
| Width | 11 mm |
| Termination | Radial |
| Max Operating Temperature | 120 °C |
| Min Operating Temperature | -25 °C |
| Voltage Rating (AC) | 250 V |
| Height | 16.9926 mm |
| Packaging | Tray |
| Depth | 11 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Lead/Base Style | Pin |
| Self Resonant Frequency | 1 kHz |
| Type | Line Filters |
| Current | 700 mA |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 600 mΩ |
| Max Current Rating | 700 mA |
| Test Frequency | 1 kHz |
| Military Standard | Not |
| Number of Lines | 2 |
| Inductance | 1 mH |
| Max DC Current | 700 mA |
| DC Current | 700 mA |
Stock: 2447
Distributors
pcbx
pcbxUnit Price$0.58819
Ext.Price$0.58819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.58819 | $0.58819 |
| 10 | $0.53604 | $5.36040 |
| 25 | $0.50013 | $12.50325 |
| 50 | $0.48229 | $24.11450 |
| 100 | $0.46508 | $46.50800 |
| 300 | $0.43929 | $131.78700 |
| 500 | $0.41493 | $207.46500 |
| 1000 | $0.39192 | $391.92000 |
| 3000 | $0.37019 | $1110.57000 |
| 5000 | $0.34967 | $1748.35000 |
