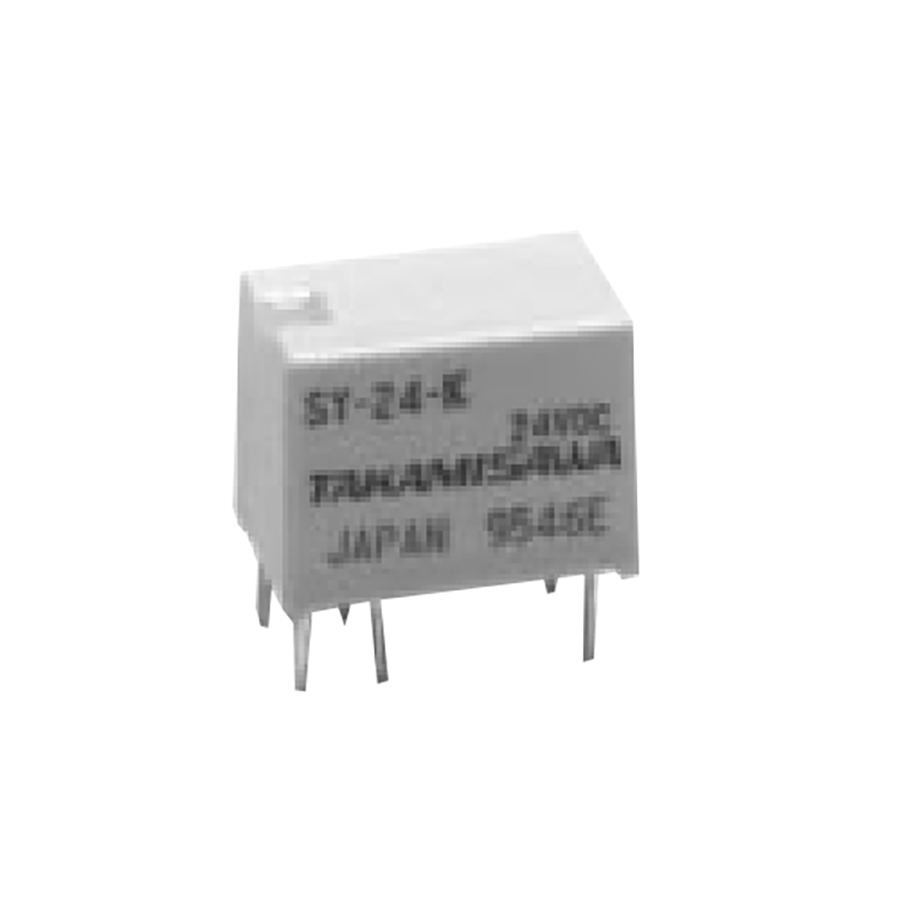

SY-24W-K
Manufacturer:
Fujitsu
Mfr.Part #:
SY-24W-K
Datasheet:
Description:
Signal Relays Through Hole 7.29 mA Non-Latching Coil Voltage (DC):24 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 60 V |
| Length | 12.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 80 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 120 V |
| Number of Pins | 6 |
| Packaging | Tube |
| Depth | 7.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Weight | 1.7 g |
| Contact Material(Contact Finish) | Gold, Silver |
| Max Current Rating | 1 A |
| Max Voltage Rating (DC) | 60 V |
| Throw Configuration | SPDT |
| Max Voltage Rating (AC) | 120 V |
| Coil Voltage (DC) | 24 V |
| Coil Current | 7.29 mA |
| Coil Type | Non-Latching |
| Coil Resistance | 3.29 kΩ |
| Operate Time | 5 ms |
| Contact Current Rating | 1 A |
| Termination Style | Solder Pin |
| Contact Form | SPDT (1 Form C) |
