BTH-030-01-F-D-A
Manufacturer:
Samtec
Mfr.Part #:
BTH-030-01-F-D-A
Datasheet:
Description:

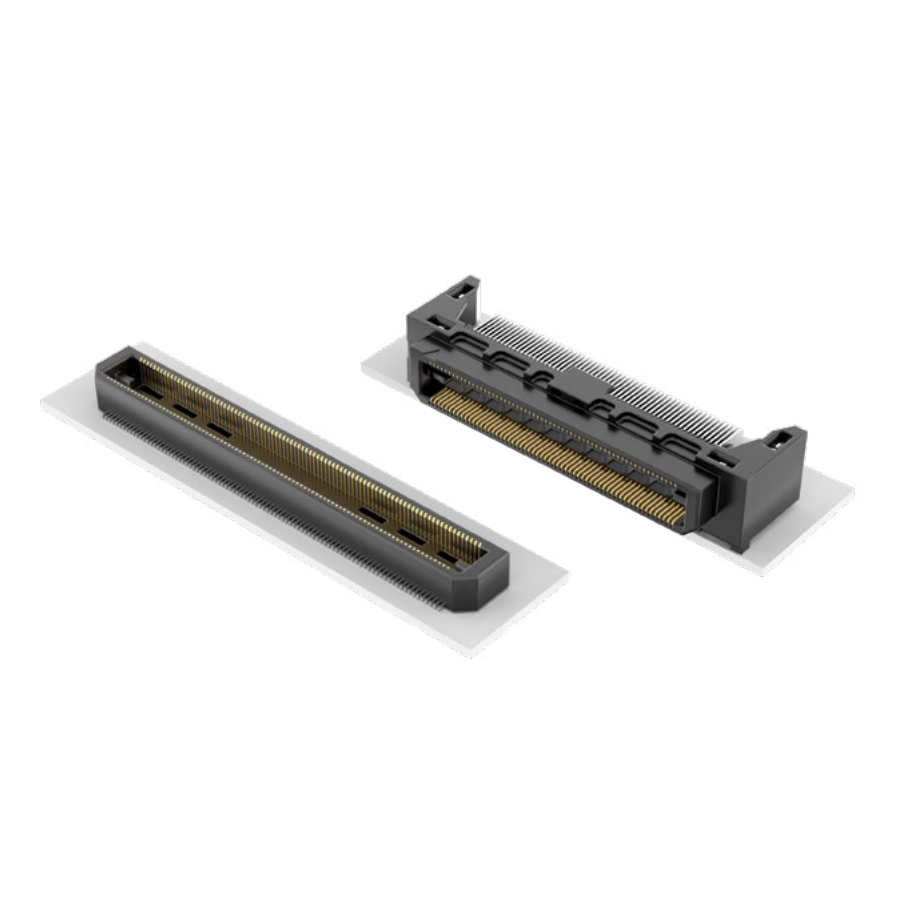

Board to Board Connectors SMD/SMT Outer Shroud Contact Number of Positions:60 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 175 V |
| Depth | 5.97 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 500 µm |
| Current Rating | 2 A |
| Max Current Rating | 1.25 A |
| Orientation | Straight |
| Gender | Male |
| Number of Contacts | 60 |
| Connector Type | Outer Shroud Contact |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 125 V |
| Stack Height | 5 mm |
| Mounting Angle | Vertical |
Stock: 51
Distributors
pcbx
pcbxUnit Price$2.20401
Ext.Price$2.20401
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.20401 | $2.20401 |
| 10 | $2.14246 | $21.42460 |
| 25 | $2.01793 | $50.44825 |
| 50 | $1.90064 | $95.03200 |
| 100 | $1.79017 | $179.01700 |
| 300 | $1.68612 | $505.83600 |
| 500 | $1.58812 | $794.06000 |
| 1000 | $1.49581 | $1495.81000 |
| 3000 | $1.40887 | $4226.61000 |
| 5000 | $1.32698 | $6634.90000 |
| 10000 | $1.24990 | $12499.00000 |
