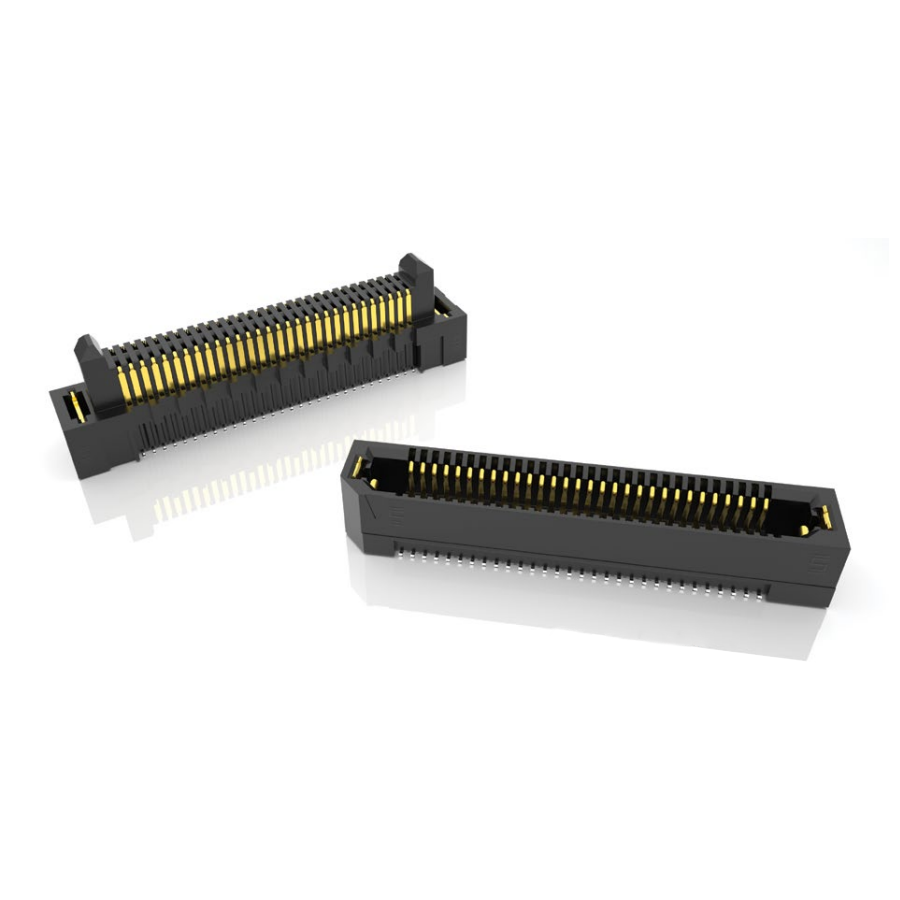

ERF8-020-05.0-L-DV-TR
Manufacturer:
Samtec
Mfr.Part #:
ERF8-020-05.0-L-DV-TR
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:40 Number of Rows:2 Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 22 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 300 V |
| Depth | 5.6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Beryllium Copper |
| Pitch | 800 µm |
| Current Rating | 1.4 A |
| Max Current Rating | 2.1 A |
| Orientation | Straight |
| Gender | Female |
| Number of Contacts | 40 |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 200 V |
| Housing Color | Black |
| Stack Height | 7 mm, 10 mm, 13 mm, 14 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 34
Distributors
pcbx
pcbxUnit Price$4.48944
Ext.Price$4.48944
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.48944 | $4.48944 |
| 10 | $4.38758 | $43.87580 |
| 25 | $4.35639 | $108.90975 |
| 50 | $4.32542 | $216.27100 |
| 100 | $4.29468 | $429.46800 |
