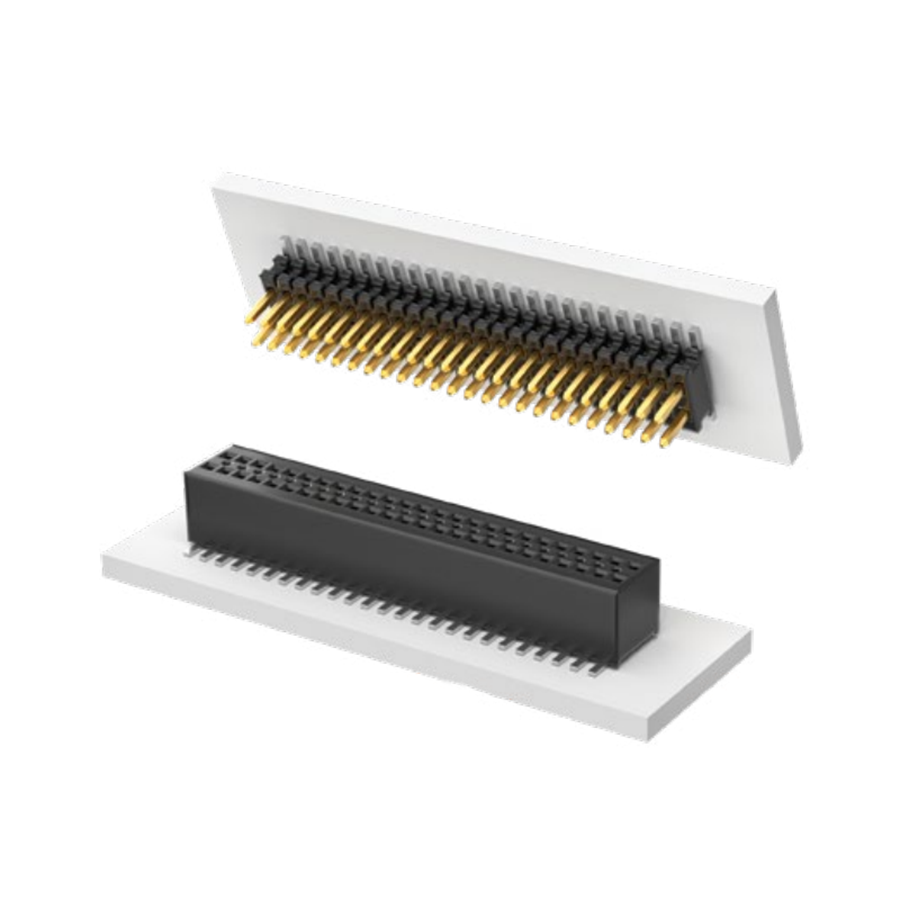

FTE-106-01-G-DV
Manufacturer:
Samtec
Mfr.Part #:
FTE-106-01-G-DV
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:12 Number of Rows:2 Row Spacing:1.1938 mm Pitch:800 µm
| Parameter | Value |
|---|---|
| Length | 4.8 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Bulk |
| Depth | 3.05 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 800 µm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 800 µm |
| Current Rating | 750 mA |
| Orientation | Straight |
| Color | Black |
| Gender | Male |
| Number of Contacts | 12 |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Row Spacing | 1.1938 mm |
| Housing Material | Polymer |
| Housing Color | Black |
| Contact Mating Length | 1.905 mm |
| Mounting Angle | Vertical |
Stock: 321
Distributors
pcbx
pcbxUnit Price$2.17152
Ext.Price$2.17152
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.17152 | $2.17152 |
| 10 | $2.02900 | $20.29000 |
| 25 | $1.89584 | $47.39600 |
| 50 | $1.77141 | $88.57050 |
| 100 | $1.50211 | $150.21100 |
| 300 | $1.21987 | $365.96100 |
| 500 | $0.99066 | $495.33000 |
| 1000 | $0.80452 | $804.52000 |
| 3000 | $0.65335 | $1960.05000 |
| 5000 | $0.53059 | $2652.95000 |
| 10000 | $0.43089 | $4308.90000 |
