GRF1-P-P-02-E-ST-TH1
Manufacturer:
Samtec
Mfr.Part #:
GRF1-P-P-02-E-ST-TH1
Datasheet:
Description:

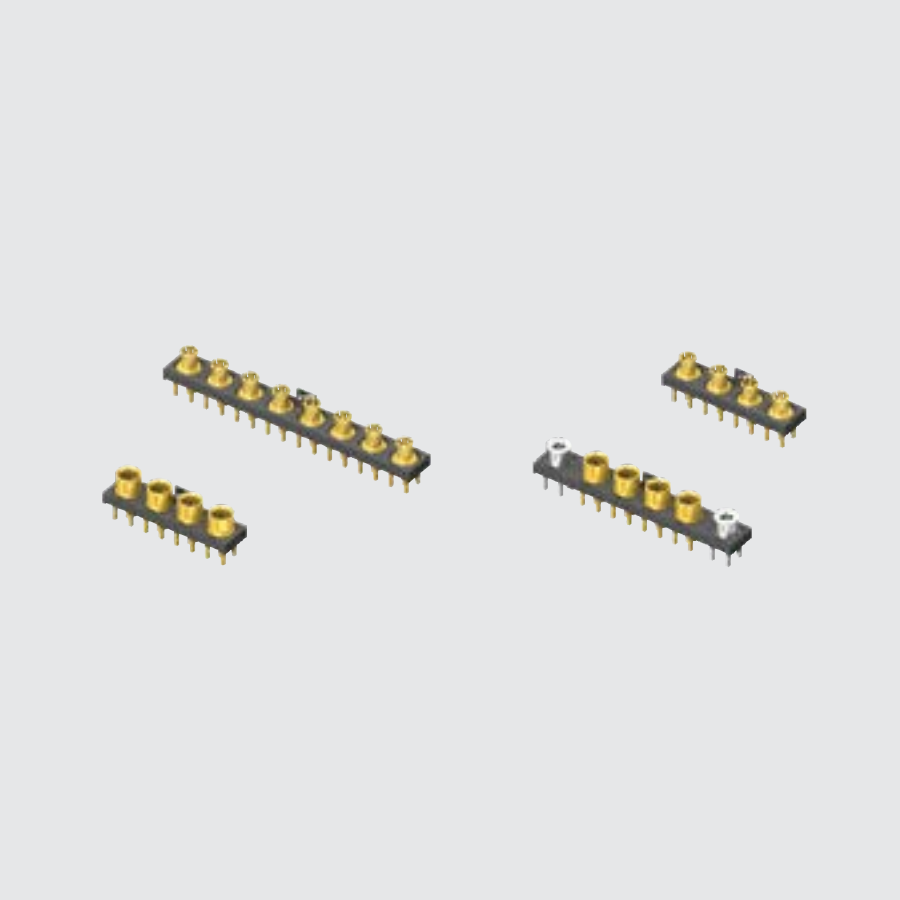

RF / Coaxial Connectors Through Hole Coaxial, MMCX, Male Pin, Plug 50 Ω
| Parameter | Value |
|---|---|
| Length | 10 mm |
| Width | 5 mm |
| Termination | Solder |
| Max Operating Temperature | 90 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Tube |
| Voltage Rating | 500 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 5 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | PTFE |
| Contact Plating | Gold |
| Impedance | 50 Ω |
| Frequency | 6 GHz |
| Orientation | Straight |
| Gender | Plug (Pin) |
| Number of Contacts | 2 |
| Body Material | Brass |
| Connector Type | Coaxial, MMCX, Male Pin, Plug |
| Max Frequency | 6 GHz |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Insulation Material | Teflon |
| Housing Material | Plastic |
| Fastening Type | Snap |
| Housing Color | Gold |
| Body Plating | Gold |
| RF Series | Micro-RF |
| Contact Termination | Solder |
| Shield Termination | Solder |
Stock: 67
Distributors
pcbx
pcbxUnit Price$7.21560
Ext.Price$7.21560
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.21560 | $7.21560 |
| 10 | $6.50858 | $65.08580 |
| 25 | $5.80155 | $145.03875 |
| 50 | $5.21300 | $260.65000 |
| 100 | $4.68416 | $468.41600 |
| 300 | $4.20897 | $1262.69100 |
| 500 | $3.78198 | $1890.99000 |
| 1000 | $3.39834 | $3398.34000 |
