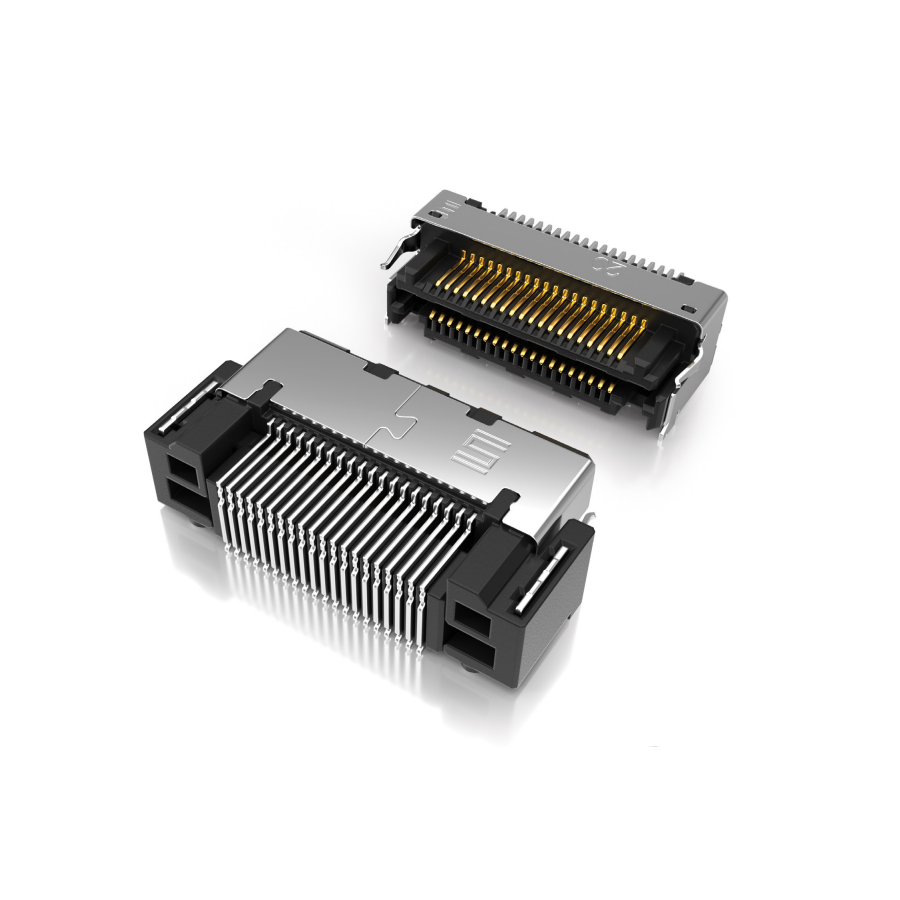

LSHM-130-04.0-L-DV-A-S-K-TR
Manufacturer:
Samtec
Mfr.Part #:
LSHM-130-04.0-L-DV-A-S-K-TR
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:60 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Length | 34.7 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Reel |
| Voltage Rating | 160 V |
| Depth | 4.98 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Manufacturer Package Identifier | LSHM-130-04.0-L-DV-A-S-K-TR |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 500 µm |
| Current Rating | 2 A |
| Orientation | Straight |
| Gender | Hermaphroditic |
| Number of Contacts | 60 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Housing Color | Black |
| Stack Height | 6.5 mm, 7 mm, 8 mm, 10 mm |
| Schedule B | 8536694040 |
| Mounting Angle | Vertical |
Stock: 1279
Distributors
pcbx
pcbxUnit Price$3.51718
Ext.Price$3.51718
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.51718 | $3.51718 |
| 10 | $3.41630 | $34.16300 |
| 25 | $3.31831 | $82.95775 |
| 50 | $3.22309 | $161.15450 |
| 100 | $3.02303 | $302.30300 |
| 300 | $2.76285 | $828.85500 |
| 500 | $2.52506 | $1262.53000 |
| 1000 | $2.30774 | $2307.74000 |
| 3000 | $2.10911 | $6327.33000 |
