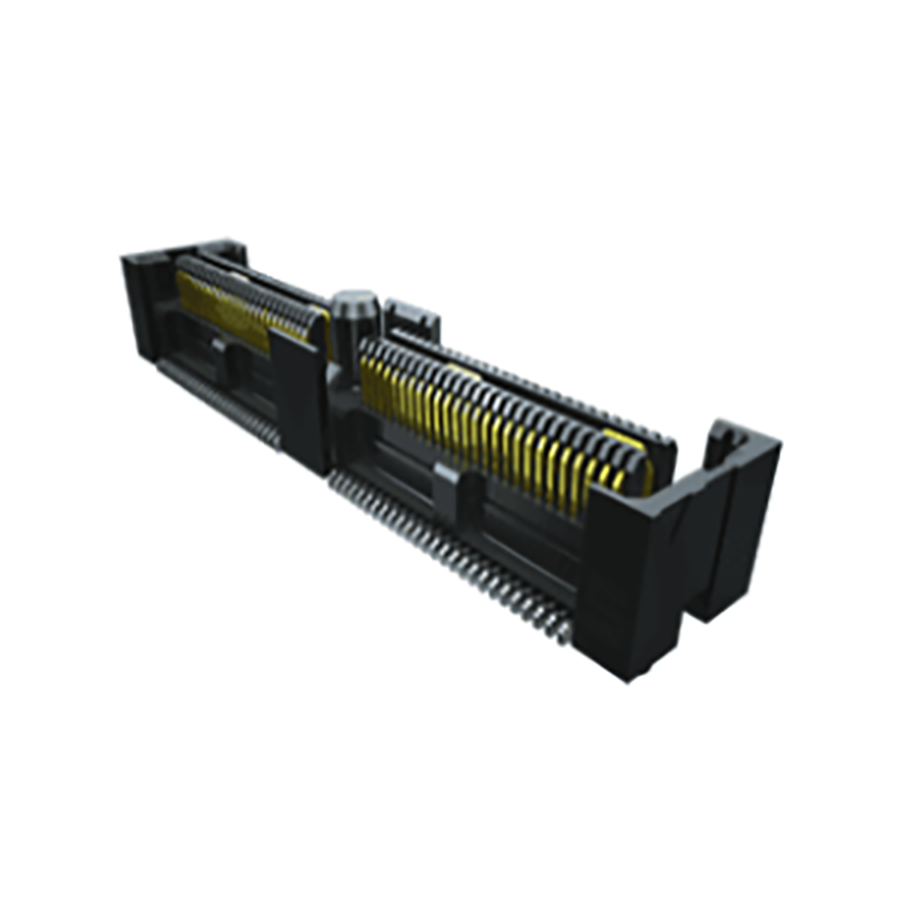

QFS-026-04.25-L-D-PC4
Manufacturer:
Samtec
Mfr.Part #:
QFS-026-04.25-L-D-PC4
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:60 Number of Rows:2 Pitch:635 µm
| Parameter | Value |
|---|---|
| Length | 34.21 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 300 V |
| Depth | 8.13 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 635 µm |
| Current Rating | 2.6 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 52 |
| Number of Positions | 60 |
| Number of Rows | 2 |
| Housing Material | Liquid Crystal Polymer (LCP) |
| Max Voltage Rating (AC) | 300 V |
| Housing Color | Black |
| Stack Height | 10 mm, 12 mm, 14 mm |
| Mounting Angle | Vertical |
Stock: 183
Distributors
pcbx
pcbxUnit Price$7.35923
Ext.Price$7.35923
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.35923 | $7.35923 |
| 10 | $6.97260 | $69.72600 |
| 25 | $6.60628 | $165.15700 |
| 50 | $6.25921 | $312.96050 |
| 100 | $5.93037 | $593.03700 |
| 300 | $5.61881 | $1685.64300 |
| 500 | $5.32362 | $2661.81000 |
| 1000 | $5.04409 | $5044.09000 |
