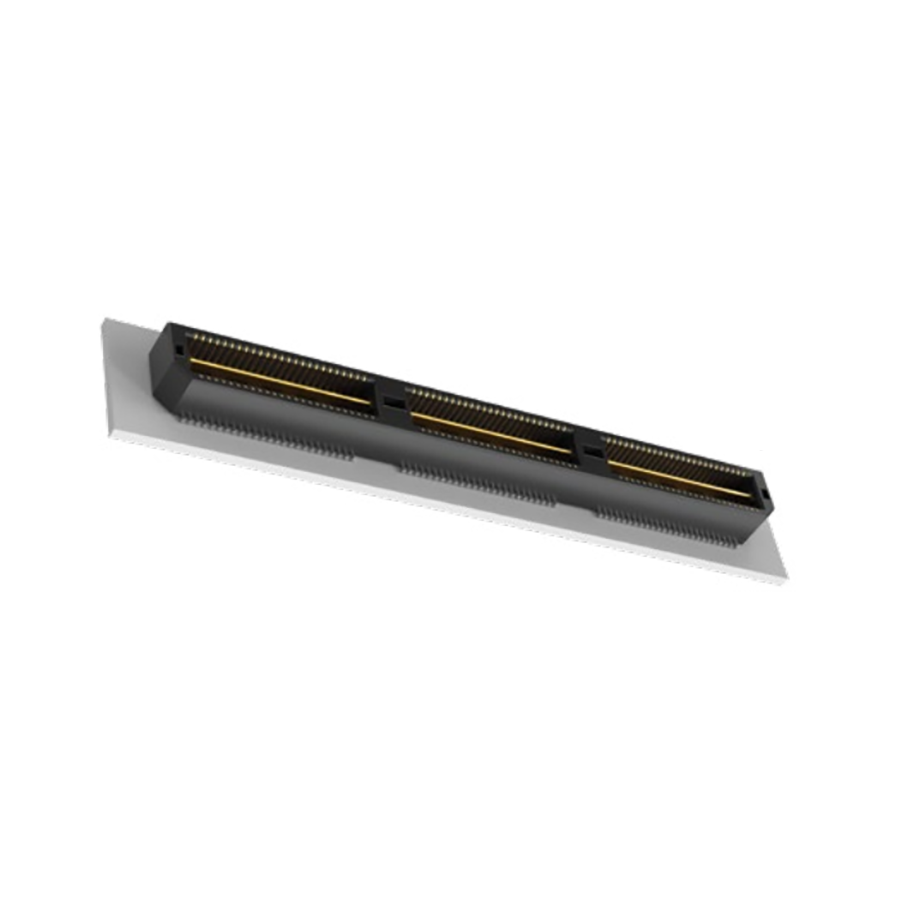

QSS-075-01-L-D-A-GP
Manufacturer:
Samtec
Mfr.Part #:
QSS-075-01-L-D-A-GP
Datasheet:
Description:
Board to Board Connectors SMD/SMT Socket, Center Strip Contacts Number of Positions:150 Number of Rows:2 Pitch:635 µm
| Parameter | Value |
|---|---|
| Length | 70.9 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 285 V |
| Depth | 7.24 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 635 µm |
| Current Rating | 1.8 A |
| Max Current Rating | 1.1 A |
| Orientation | Straight |
| Gender | Receptacle |
| Number of Contacts | 150 |
| Connector Type | Socket, Center Strip Contacts |
| Number of Positions | 150 |
| Number of Rows | 2 |
| Housing Material | Polymer |
| Max Voltage Rating (AC) | 285 V |
| Mounting Angle | Vertical |
Stock: 51
Distributors
pcbx
pcbxUnit Price$7.85424
Ext.Price$7.85424
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $7.85424 | $7.85424 |
| 10 | $7.62255 | $76.22550 |
| 25 | $7.42848 | $185.71200 |
| 50 | $6.37610 | $318.80500 |
| 100 | $5.47281 | $547.28100 |
| 300 | $4.69749 | $1409.24700 |
| 500 | $4.03201 | $2016.00500 |
| 1000 | $3.46076 | $3460.76000 |
