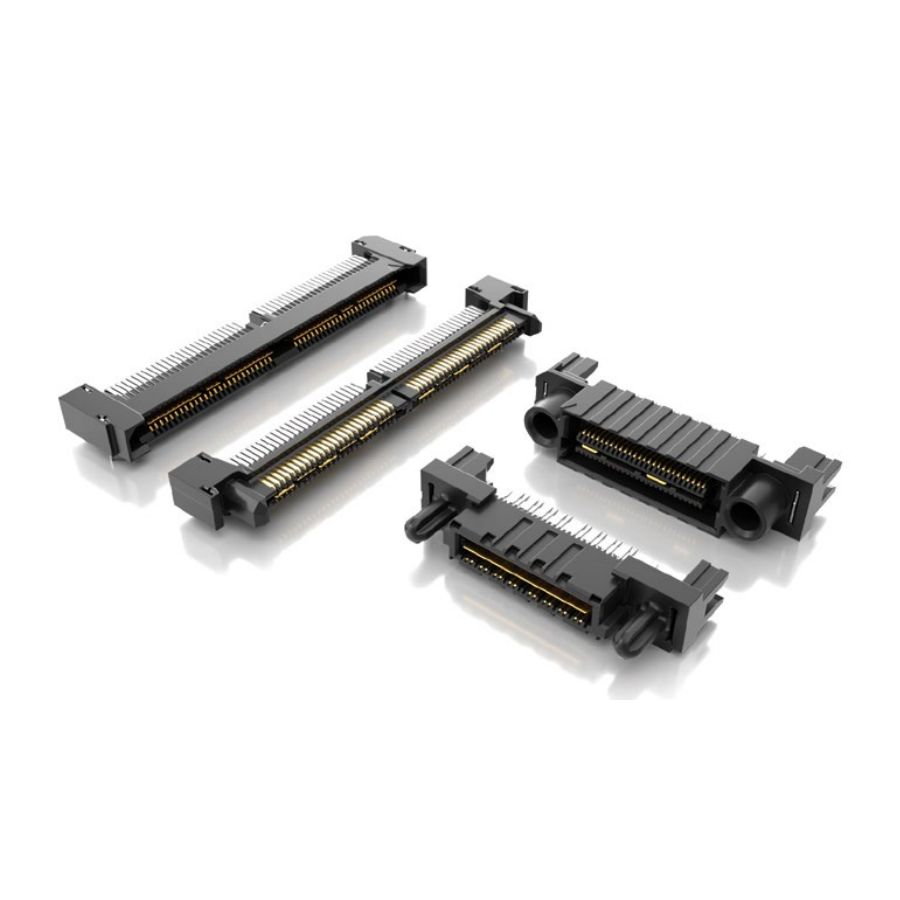

QTH-060-01-L-D-A
Manufacturer:
Samtec
Mfr.Part #:
QTH-060-01-L-D-A
Datasheet:
Description:
Board to Board Connectors SMD/SMT Number of Positions:120 Number of Rows:2 Pitch:500 µm
| Parameter | Value |
|---|---|
| Termination | Solder Pin |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Packaging | Tray |
| Voltage Rating | 175 V |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 500 µm |
| Current Rating | 1 A |
| Gender | Male |
| Number of Contacts | 120 |
| Mounting Style | Surface Mount, Vertical |
| lead free status | Lead Free |
| operating temperature | 125 °C |
| rohs status | Compliant |
| reach svhc compliance | No SVHC |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Housing Material | Plastic |
| size width | 5.97 mm |
| size length | 40.0 mm |
| size height | 4.06 mm |
| voltage rating ac | 125 V |
| Housing Color | Black |
| pin pitch | 500 µm |
| number of mating cycles | 100 |
| Stack Height | 5 mm |
| Mounting Angle | Vertical |
Stock: 3147
Distributors
pcbx
pcbxUnit Price$3.79247
Ext.Price$3.79247
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.79247 | $3.79247 |
| 10 | $3.66366 | $36.63660 |
| 25 | $3.53922 | $88.48050 |
| 50 | $3.41901 | $170.95050 |
| 100 | $3.30288 | $330.28800 |
| 300 | $3.19070 | $957.21000 |
| 500 | $3.08233 | $1541.16500 |
| 1000 | $2.97764 | $2977.64000 |
| 3000 | $2.87650 | $8629.50000 |
| 5000 | $2.77880 | $13894.00000 |
| 10000 | $2.68448 | $26844.80000 |
