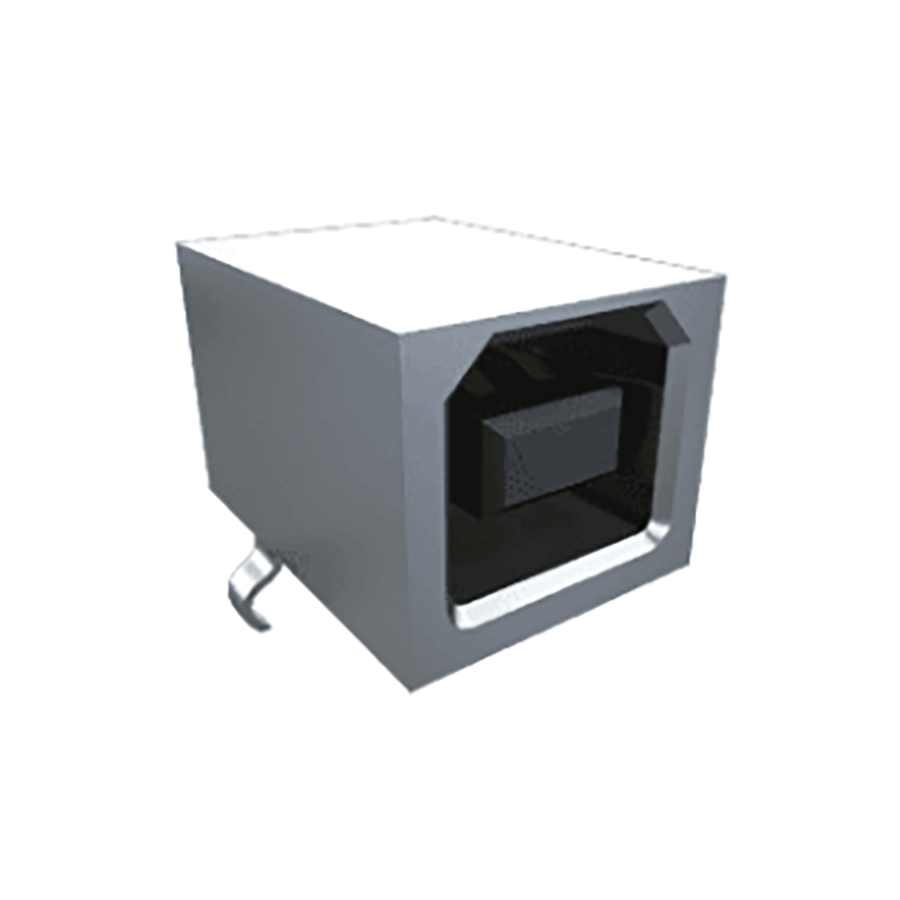

USB-B-S-F-B-TH
Manufacturer:
Samtec
Mfr.Part #:
USB-B-S-F-B-TH
Datasheet:
Description:
USB Connectors Through Hole USB-B (USB TYPE-B) Receptacle USB 2.0
| Parameter | Value |
|---|---|
| Length | 12.1 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -50 °C |
| Packaging | Bulk |
| Depth | 16.2 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.5 mm |
| Type | USB-B (USB TYPE-B) |
| Number of Terminals | 4 |
| Orientation | Right Angle |
| Gender | Receptacle |
| Number of Contacts | 4 |
| USB Standard | USB 2.0 |
| Connector Type | USB |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Max Voltage Rating (AC) | 30 V |
Stock: 928
Distributors
pcbx
pcbxUnit Price$0.70104
Ext.Price$0.70104
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.70104 | $0.70104 |
| 10 | $0.64747 | $6.47470 |
| 25 | $0.59799 | $14.94975 |
| 50 | $0.55229 | $27.61450 |
| 100 | $0.44456 | $44.45600 |
| 300 | $0.41172 | $123.51600 |
| 500 | $0.38130 | $190.65000 |
| 1000 | $0.29837 | $298.37000 |
| 3000 | $0.27524 | $825.72000 |
| 5000 | $0.25391 | $1269.55000 |
