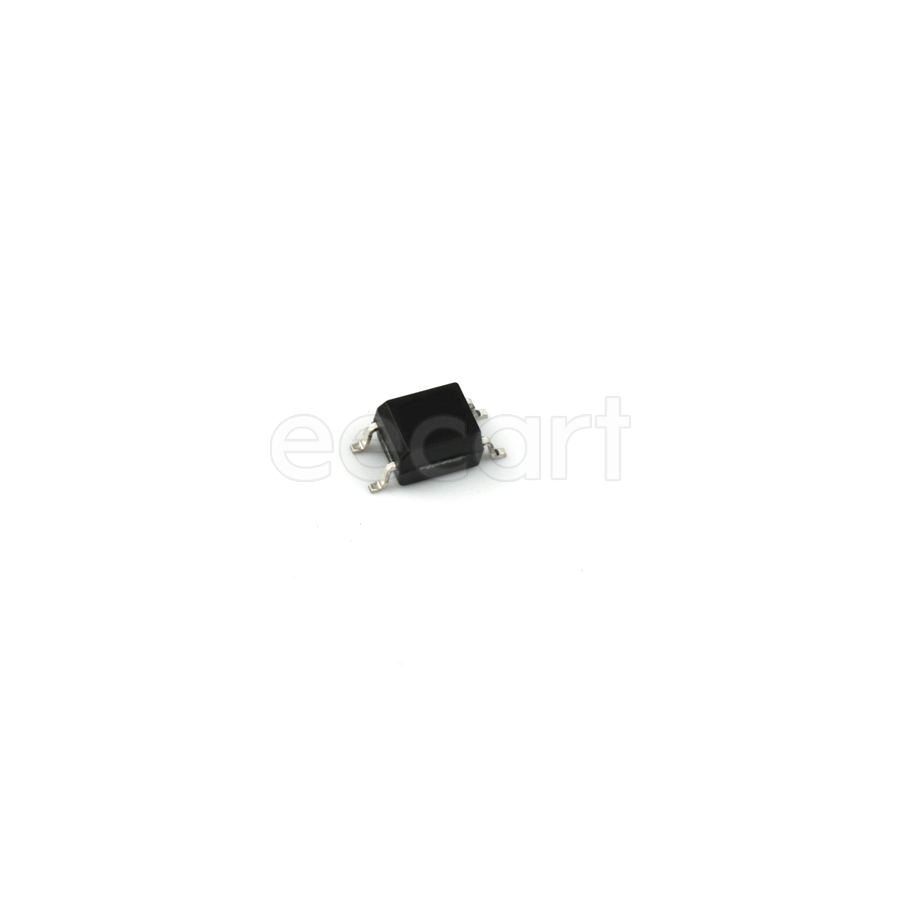

PC357N1J000F
Manufacturer:
Sharp
Mfr.Part #:
PC357N1J000F
Datasheet:
Description:
Optocouplers Mini-Flat-4 SMD/SMT number of channels:1 Transistor 50 mA 1.2 V Rise Time:18 µs Fall Time :3 µs
| Parameter | Value |
|---|---|
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -30 °C |
| Number of Pins | 4 |
| Height | 3 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 6 V |
| Number of Elements | 1 |
| Output Current | 50 mA |
| Output Voltage | 80 V |
| Number of Circuits | 1 |
| Forward Current | 50 mA |
| Forward Voltage | 1.2 V |
| Output Type | Transistor |
| Max Power Dissipation | 170 mW |
| Power Dissipation | 170 mW |
| Number of Channels | 1 |
| Max Collector Current | 50 mA |
| Collector Emitter Breakdown Voltage | 80 V |
| Fall Time | 3 µs |
| Rise Time | 18 µs |
| Collector Emitter Voltage (VCEO) | 80 V |
| Isolation Voltage | 3.8 V |
| Current Transfer Ratio | 600 % |
| Output Current per Channel | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Max Input Current | 50 mA |
| Max Output Voltage | 80 V |
| Collector Emitter Saturation Voltage | 100 mV |
Stock: 19575
Distributors
pcbx
pcbxUnit Price$0.14208
Ext.Price$0.14208
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14208 | $0.14208 |
| 10 | $0.12557 | $1.25570 |
| 50 | $0.11098 | $5.54900 |
| 100 | $0.09532 | $9.53200 |
| 500 | $0.08187 | $40.93500 |
| 1000 | $0.07845 | $78.45000 |
| 3000 | $0.07517 | $225.51000 |
| 5000 | $0.07056 | $352.80000 |
