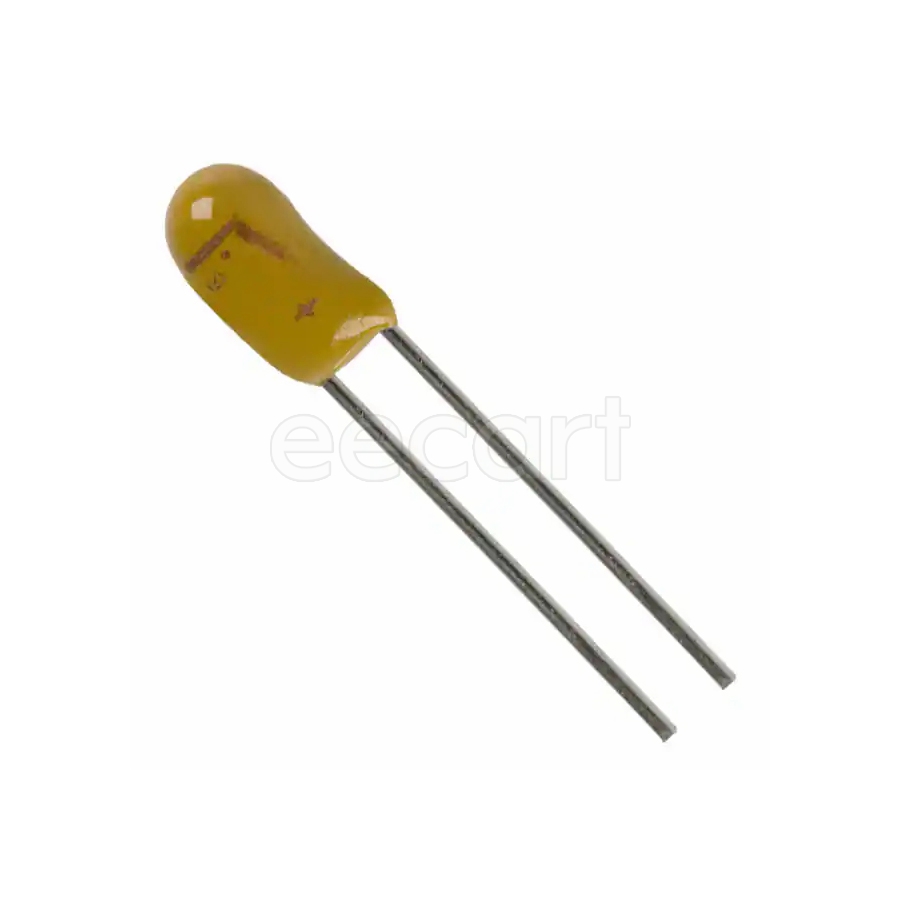

T350B475K016AT
Manufacturer:
KEMET
Mfr.Part #:
T350B475K016AT
Datasheet:
Description:
Tantalum Capacitors 4.50mmD×7.60mmH Through Hole 4.7 µF 10 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 4.7 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 5 Ω |
| Height - Seated (Max) | 7.6 mm |
| Termination | Radial |
| Diameter | 4.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 16 V |
| Number of Pins | 2 |
| Leakage Current | 600 nA |
| Dissipation Factor | 5 % |
| Height | 7.6 mm |
| Packaging | Bulk |
| Voltage Rating | 16 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.54 mm |
| Voltage | 16 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210040 |
| Type | Conformal Coated |
Stock: 1259
Distributors
pcbx
pcbxUnit Price$2.25274
Ext.Price$2.25274
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.25274 | $2.25274 |
| 10 | $1.33882 | $13.38820 |
| 25 | $1.29797 | $32.44925 |
| 50 | $1.25837 | $62.91850 |
| 100 | $1.21999 | $121.99900 |
| 300 | $1.16891 | $350.67300 |
| 500 | $1.11996 | $559.98000 |
| 1000 | $1.11397 | $1113.97000 |
| 3000 | $1.05288 | $3158.64000 |
| 5000 | $0.99514 | $4975.70000 |
