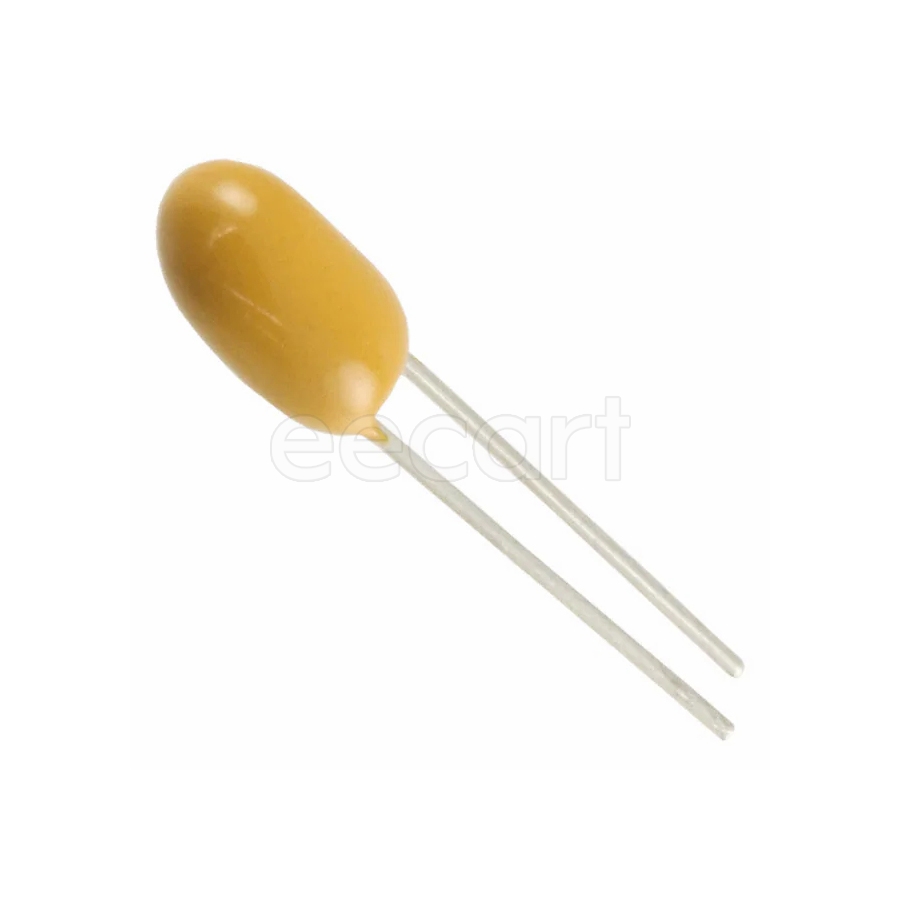

T350C106K010AT
Manufacturer:
KEMET
Mfr.Part #:
T350C106K010AT
Datasheet:
Description:
Tantalum Capacitors 5mmD×8.4mmH Through Hole 10 µF 10 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 5 Ω |
| Height - Seated (Max) | 8.4 mm |
| Termination | Radial |
| Diameter | 5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Voltage Rating (AC) | 10 V |
| Number of Pins | 2 |
| Leakage Current | 800 nA |
| Dissipation Factor | 6 % |
| Height | 8.4 mm |
| Packaging | Bulk |
| Voltage Rating | 10 V |
| Depth | 5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Type | Conformal Coated |
Stock: 527
Distributors
pcbx
pcbxUnit Price$2.48443
Ext.Price$2.48443
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.48443 | $2.48443 |
| 10 | $1.48330 | $14.83300 |
| 25 | $1.45335 | $36.33375 |
| 50 | $1.42400 | $71.20000 |
| 100 | $1.39524 | $139.52400 |
| 300 | $1.31832 | $395.49600 |
| 500 | $1.24563 | $622.81500 |
| 1000 | $1.08234 | $1082.34000 |
