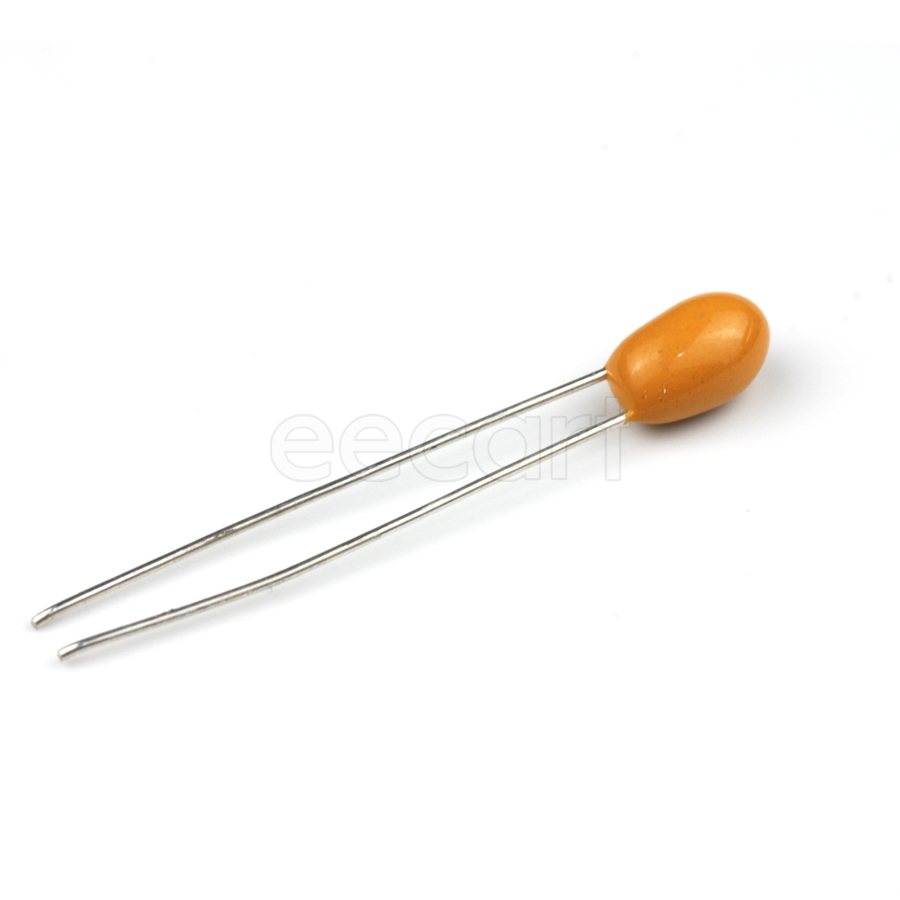

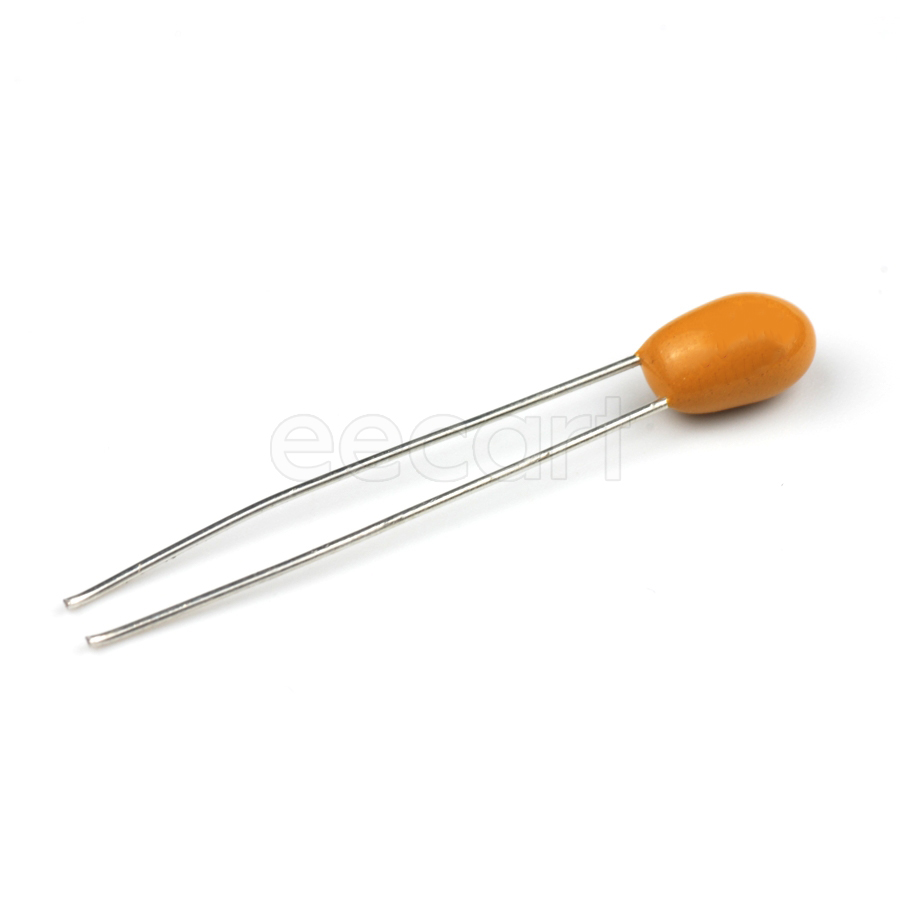

T350E106K025AT
Manufacturer:
KEMET
Mfr.Part #:
T350E106K025AT
Datasheet:
Description:
Tantalum Capacitors 5.50mmD×8.90mmH Through Hole 10 µF 10 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 10 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 2.5 Ω |
| Height - Seated (Max) | 8.9 mm |
| Length | 8.9 mm |
| Termination | Radial |
| Diameter | 5.5 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 2 µA |
| Dissipation Factor | 6 % |
| Height | 8.9 mm |
| Packaging | Bulk |
| Voltage Rating | 25 V |
| Depth | 5.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 2.54 mm |
| Voltage | 25 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210040 |
| Type | Conformal Coated |
Stock: 500
Distributors
pcbx
pcbxUnit Price$3.05980
Ext.Price$3.05980
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $3.05980 | $3.05980 |
| 10 | $1.79023 | $17.90230 |
| 25 | $1.78393 | $44.59825 |
| 50 | $1.77765 | $88.88250 |
| 100 | $1.77141 | $177.14100 |
| 300 | $1.67788 | $503.36400 |
| 500 | $1.58931 | $794.65500 |
| 1000 | $1.52690 | $1526.90000 |
