T356K226K035AT
Manufacturer:
KEMET
Mfr.Part #:
T356K226K035AT
Datasheet:
Description:

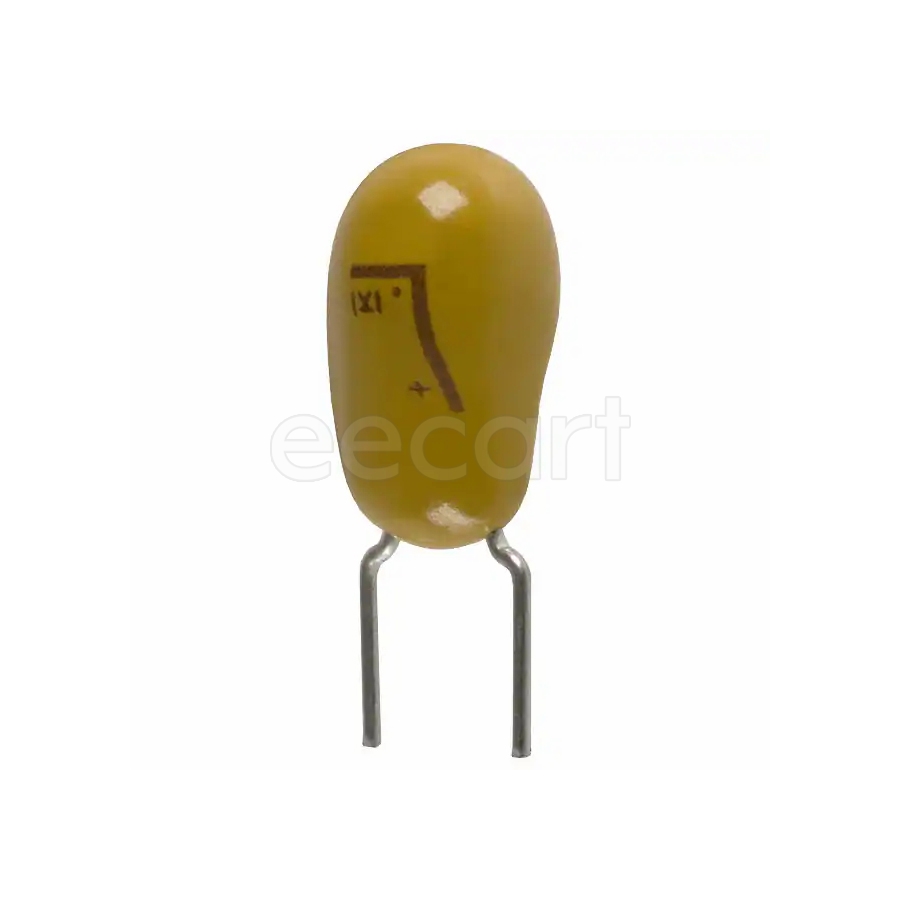

Tantalum Capacitors 8.90mmD×15.50mmH Through Hole 22 µF 10 % 35 V
| Parameter | Value |
|---|---|
| Capacitance | 22 µF |
| Voltage Rating (DC) | 35 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 1.3 Ω |
| Height - Seated (Max) | 15.5 mm |
| Length | 15.5 mm |
| Termination | Radial |
| Diameter | 8.9 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 2 |
| Leakage Current | 6.2 µA |
| Dissipation Factor | 8 % |
| Height | 15.5 mm |
| Packaging | Bulk |
| Voltage Rating | 35 V |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Diameter | 500 µm |
| Lead Pitch | 5.08 mm |
| Voltage | 35 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210040 |
| Type | Conformal Coated |
Stock: 1
Distributors
pcbx
pcbxUnit Price$6.50858
Ext.Price$6.50858
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.50858 | $6.50858 |
| 10 | $4.74999 | $47.49990 |
| 25 | $4.68644 | $117.16100 |
| 50 | $4.62374 | $231.18700 |
| 100 | $4.56190 | $456.19000 |
| 300 | $4.55894 | $1367.68200 |
| 500 | $4.55592 | $2277.96000 |
| 1000 | $4.09939 | $4099.39000 |
