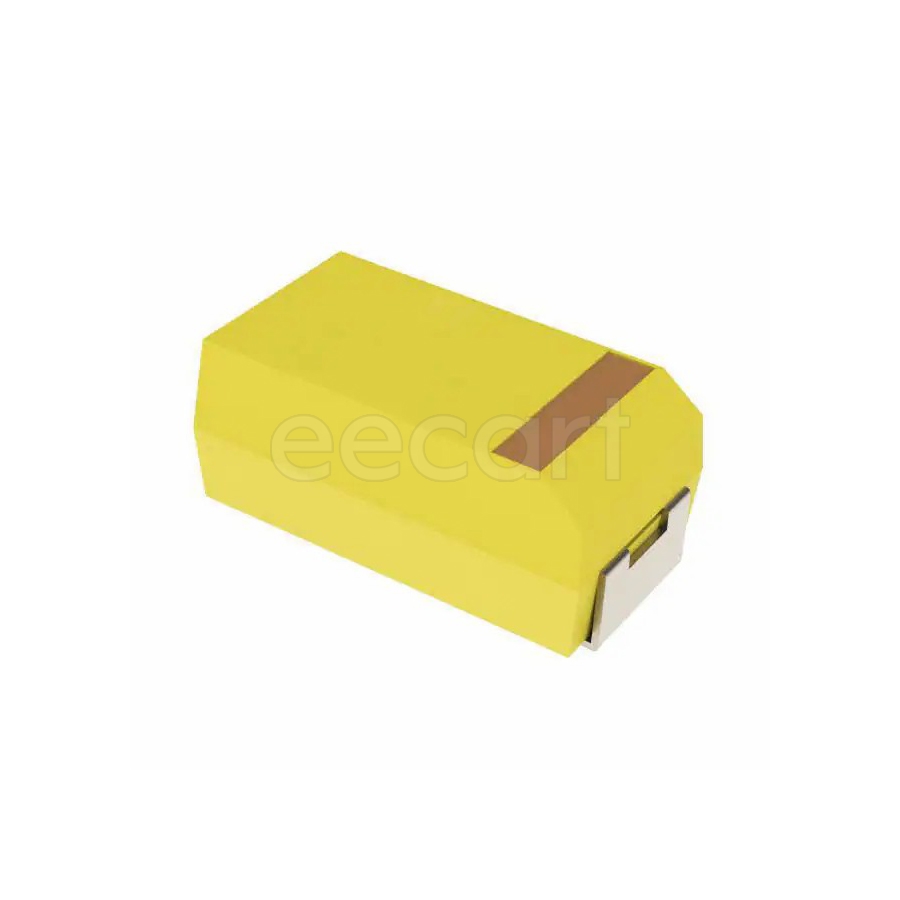

T491C476K020AT
Manufacturer:
KEMET
Mfr.Part #:
T491C476K020AT
Datasheet:
Description:
Tantalum Capacitors CASE-C_6032 SMD/SMT 47 µF 10 % 20 V
| Parameter | Value |
|---|---|
| Capacitance | 47 µF |
| Voltage Rating (DC) | 20 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 900 mΩ |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 2.8 mm |
| Length | 6 mm |
| Width | 3.2004 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2412 |
| Case Code (Metric) | 6032 |
| Number of Pins | 2 |
| Leakage Current | 9.4 µA |
| Dissipation Factor | 10 % |
| Height | 2.8 mm |
| Packaging | Reel |
| Voltage Rating | 20 V |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Type | Molded |
| Schedule B | 8532210050 |
Stock: 1619
Distributors
pcbx
pcbxUnit Price$1.02591
Ext.Price$1.02591
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.02591 | $1.02591 |
| 10 | $0.61983 | $6.19830 |
| 25 | $0.60702 | $15.17550 |
| 50 | $0.59448 | $29.72400 |
| 100 | $0.58220 | $58.22000 |
| 300 | $0.52748 | $158.24400 |
| 500 | $0.47790 | $238.95000 |
| 1000 | $0.45397 | $453.97000 |
| 3000 | $0.44359 | $1330.77000 |
| 5000 | $0.43345 | $2167.25000 |
| 10000 | $0.41635 | $4163.50000 |
