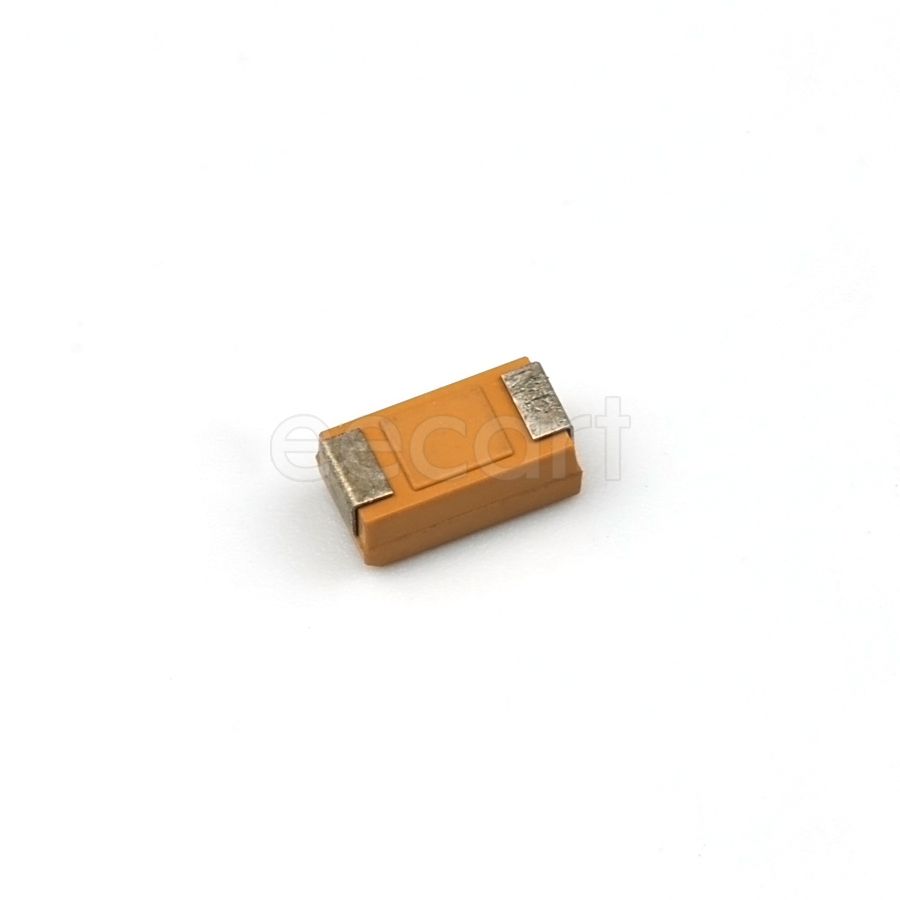

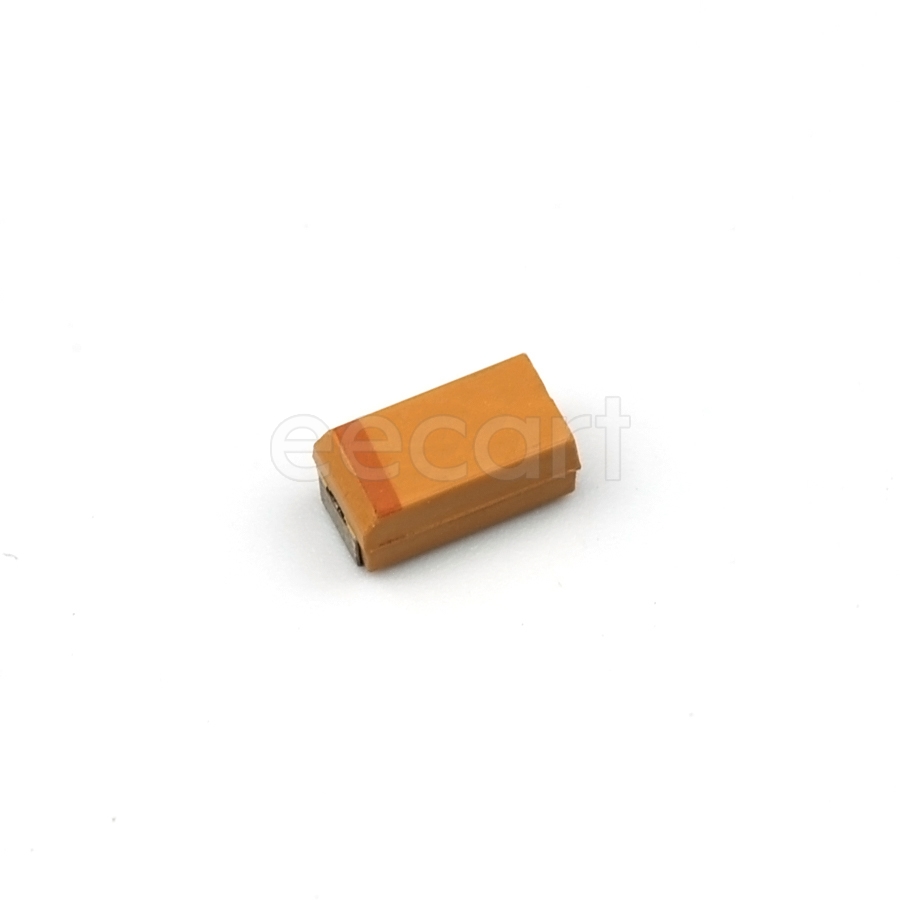

T491C686K006AT
Manufacturer:
KEMET
Mfr.Part #:
T491C686K006AT
Datasheet:
Description:
Tantalum Capacitors CASE-C_6032 SMD/SMT 68 µF 10 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 68 µF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 1.2 Ω |
| Life (Hours) | 2000 Hours |
| Ripple Current | 303 mA |
| Height - Seated (Max) | 2.8 mm |
| Length | 6 mm |
| Width | 3.2004 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2312 |
| Case Code (Metric) | 6032 |
| Number of Pins | 2 |
| Leakage Current | 4.1 µA |
| Dissipation Factor | 6 % |
| Height | 2.5 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 3.2 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Lead Pitch | 2.9 mm |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210050 |
| Type | Molded |
Stock: 6300
Distributors
pcbx
pcbxUnit Price$0.46337
Ext.Price$0.46337
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.46337 | $0.46337 |
| 10 | $0.26760 | $2.67600 |
| 25 | $0.25876 | $6.46900 |
| 50 | $0.25021 | $12.51050 |
| 100 | $0.24194 | $24.19400 |
| 300 | $0.22094 | $66.28200 |
| 500 | $0.20176 | $100.88000 |
| 1000 | $0.18809 | $188.09000 |
| 3000 | $0.17817 | $534.51000 |
| 5000 | $0.16877 | $843.85000 |
| 10000 | $0.15987 | $1598.70000 |
