T495E107K025ATE100
Manufacturer:
KEMET
Mfr.Part #:
T495E107K025ATE100
Datasheet:
Description:

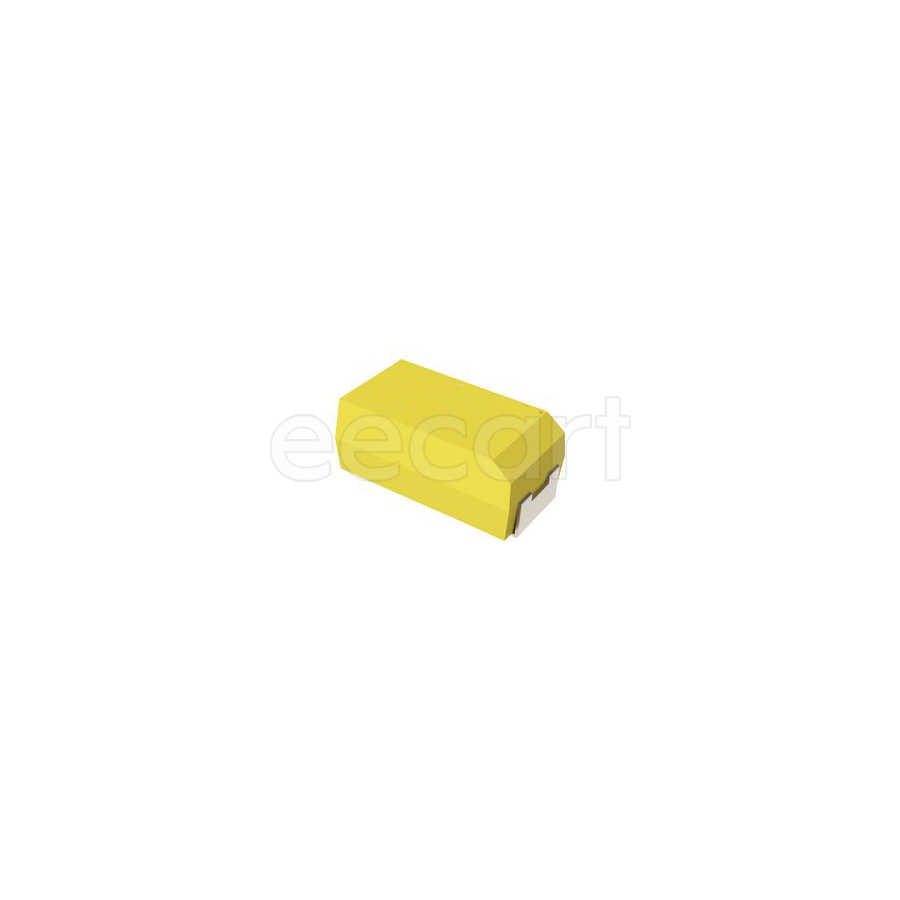

Tantalum Capacitors CASE-E-7360 SMD/SMT 100 µF 10 % 25 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 25 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 100 mΩ |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 3.8 mm |
| Length | 7.3 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2924 |
| Case Code (Metric) | 7360 |
| Dissipation Factor | 8 % |
| Resistance | 100 mΩ |
| Height | 6 mm |
| Packaging | Reel |
| Voltage Rating | 25 V |
| Depth | 6 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Features | General Purpose |
| Schedule B | 8532210050 |
| Type | Molded |
