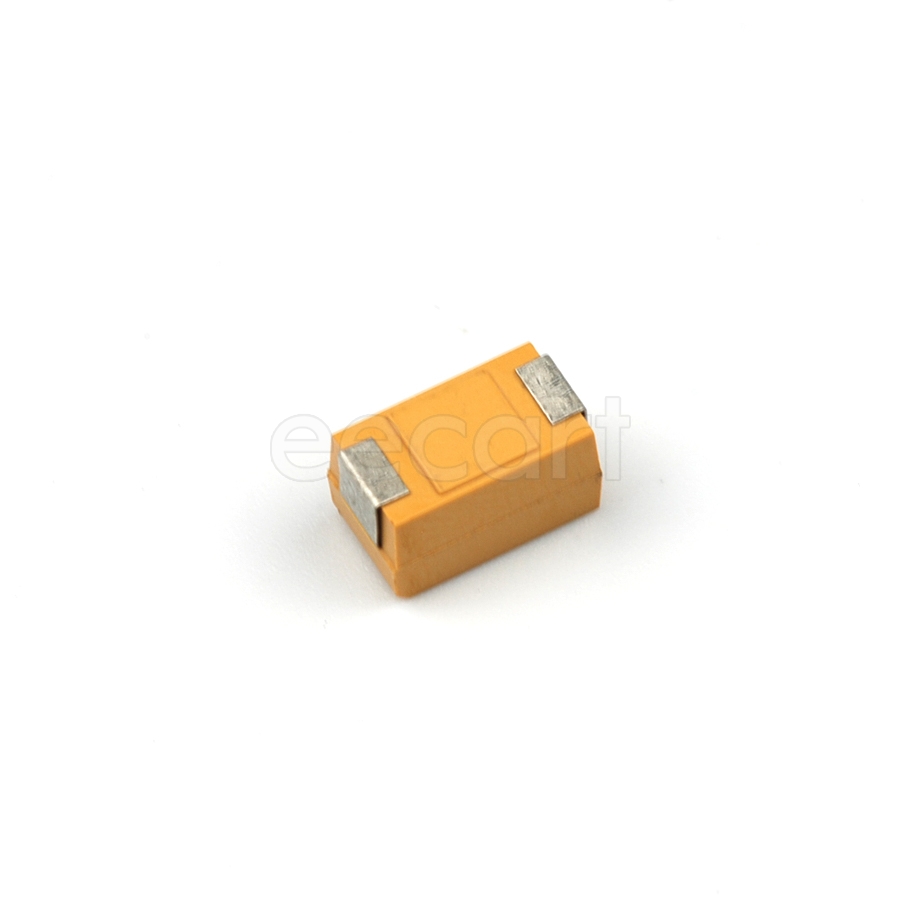

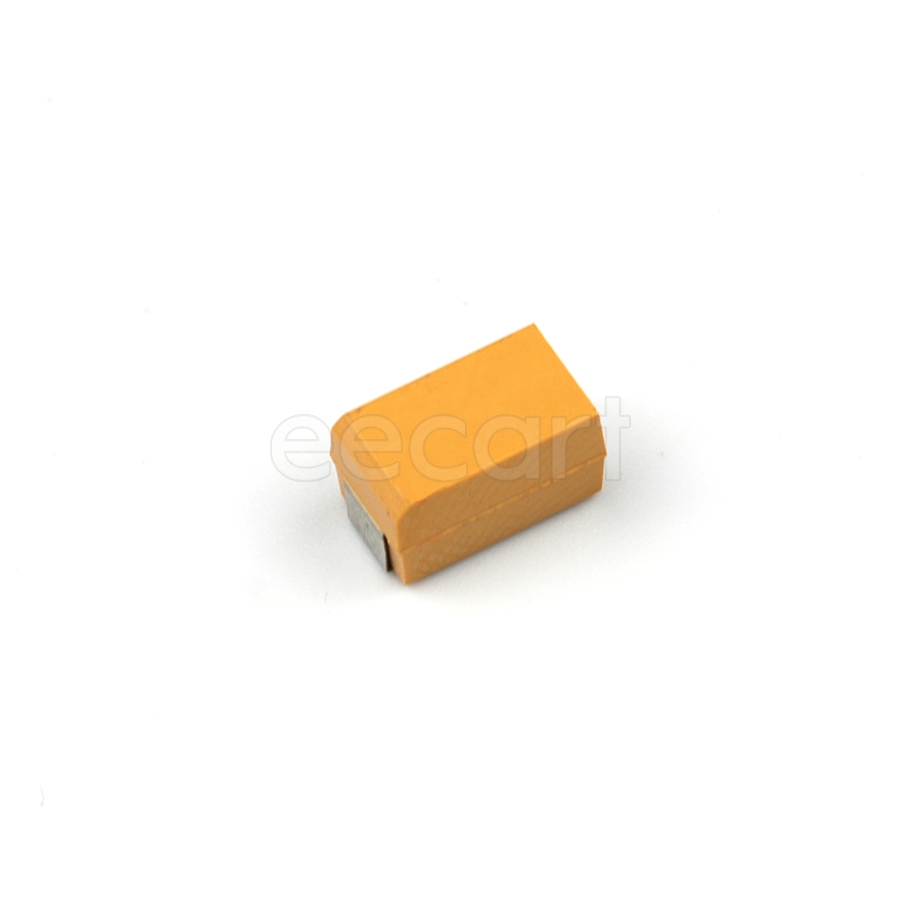

T495X337K010ATE060
Manufacturer:
KEMET
Mfr.Part #:
T495X337K010ATE060
Datasheet:
Description:
Tantalum Capacitors 2917(7343 Metric) SMD/SMT 330 µF 10 % 10 V
| Parameter | Value |
|---|---|
| Capacitance | 330 µF |
| Voltage Rating (DC) | 10 V |
| Tolerance | 10 % |
| ESR (Equivalent Series Resistance) | 60 mΩ |
| Life (Hours) | 2000 Hours |
| Height - Seated (Max) | 4.3 mm |
| Length | 7.3 mm |
| Width | 4.2926 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Number of Pins | 2 |
| Dissipation Factor | 10 % |
| Height | 4.3 mm |
| Packaging | Reel |
| Voltage Rating | 10 V |
| Depth | 4.3 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| REACH SVHC | No SVHC |
| Weight | 670.01263 mg |
| Features | General Purpose |
| Schedule B | 8532210050 |
| Type | Molded |
Stock: 1515
Distributors
pcbx
pcbxUnit Price$2.02790
Ext.Price$2.02790
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.02790 | $2.02790 |
| 10 | $1.18237 | $11.82370 |
| 25 | $1.15704 | $28.92600 |
| 50 | $1.13225 | $56.61250 |
| 100 | $1.10799 | $110.79900 |
| 300 | $1.03323 | $309.96900 |
| 500 | $0.96350 | $481.75000 |
| 1000 | $0.88827 | $888.27000 |
| 3000 | $0.85027 | $2550.81000 |
| 5000 | $0.81390 | $4069.50000 |
