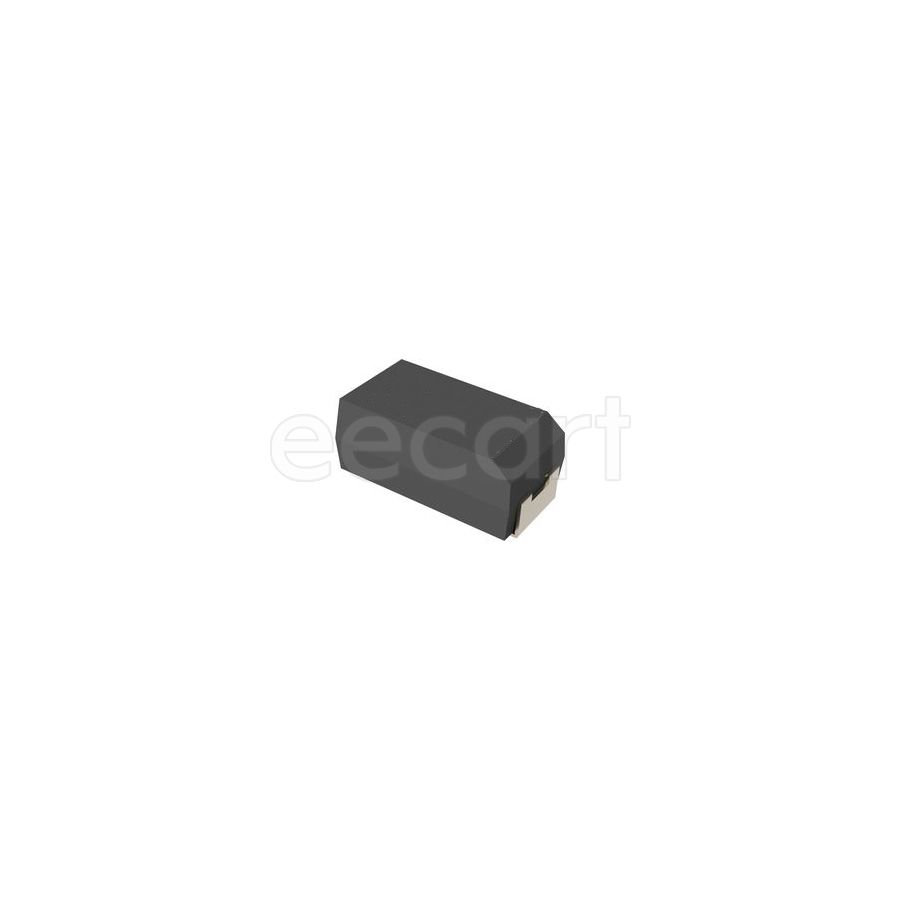

T521V107M016ATE050
Manufacturer:
KEMET
Mfr.Part #:
T521V107M016ATE050
Datasheet:
Description:
Tantalum Capacitors 2917(7343 Metric) SMD/SMT 100 µF 20 % 16 V
| Parameter | Value |
|---|---|
| Capacitance | 100 µF |
| Voltage Rating (DC) | 16 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 50 mΩ |
| Life (Hours) | 2000 Hours |
| Ripple Current | 1.9 A |
| Height - Seated (Max) | 2 mm |
| Length | 7.3 mm |
| Width | 4.3 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Leakage Current | 160 µA |
| Dissipation Factor | 10 % |
| Height | 1.9 mm |
| Packaging | Reel |
| Voltage Rating | 16 V |
| Depth | 4.3 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Features | General Purpose |
| Type | Molded |
| Schedule B | 8532210050 |
Stock: 489
Distributors
pcbx
pcbxUnit Price$1.06819
Ext.Price$1.06819
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.06819 | $1.06819 |
| 10 | $0.87427 | $8.74270 |
| 25 | $0.79418 | $19.85450 |
| 50 | $0.72142 | $36.07100 |
| 100 | $0.65533 | $65.53300 |
| 300 | $0.62713 | $188.13900 |
| 500 | $0.60014 | $300.07000 |
| 1000 | $0.57725 | $577.25000 |
