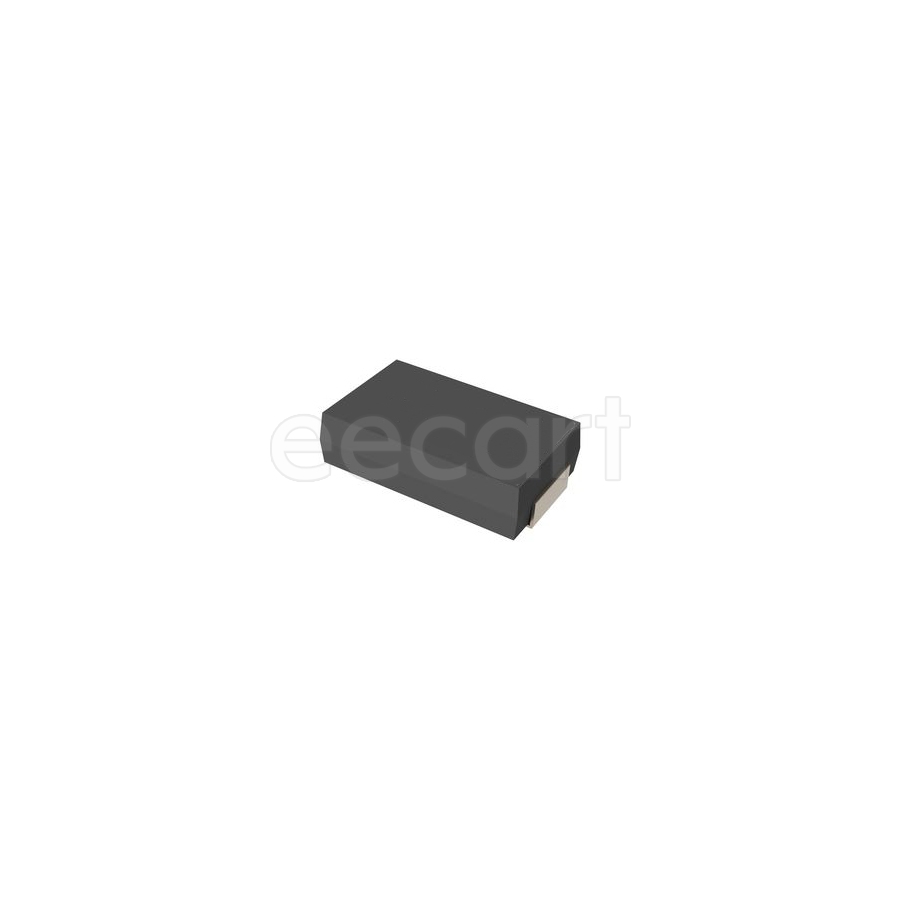

T545H158M006ATE035
Manufacturer:
KEMET
Mfr.Part #:
T545H158M006ATE035
Datasheet:
Description:
Tantalum Capacitors 2924(7361 Metric) SMD/SMT 1.5 mF 20 % 6.3 V
| Parameter | Value |
|---|---|
| Capacitance | 1.5 mF |
| Voltage Rating (DC) | 6.3 V |
| Tolerance | 20 % |
| ESR (Equivalent Series Resistance) | 35 mΩ |
| Ripple Current | 2.3 A |
| Height - Seated (Max) | 2 mm |
| Length | 7.3 mm |
| Width | 6 mm |
| Termination | SMD/SMT |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Case Code (Imperial) | 2924 |
| Case Code (Metric) | 7360 |
| Leakage Current | 945 µA |
| Dissipation Factor | 20 % |
| Height | 2 mm |
| Packaging | Reel |
| Voltage Rating | 6.3 V |
| Depth | 6 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Polar |
| Voltage | 6.3 V |
| REACH SVHC | No SVHC |
| Dielectric Material | Tantalum |
| Features | General Purpose |
| Schedule B | 8532210050 |
| Type | Molded |
Stock: 1612
Distributors
pcbx
pcbxUnit Price$2.99140
Ext.Price$2.99140
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.99140 | $2.99140 |
| 10 | $2.19631 | $21.96310 |
| 25 | $2.15597 | $53.89925 |
| 50 | $2.11637 | $105.81850 |
| 100 | $2.07748 | $207.74800 |
| 300 | $1.97492 | $592.47600 |
| 500 | $1.87743 | $938.71500 |
| 1000 | $1.77740 | $1777.40000 |
| 3000 | $1.74592 | $5237.76000 |
| 5000 | $1.71499 | $8574.95000 |
