TB6560AHQ,8
Manufacturer:
Toshiba
Mfr.Part #:
TB6560AHQ,8
Datasheet:
Description:

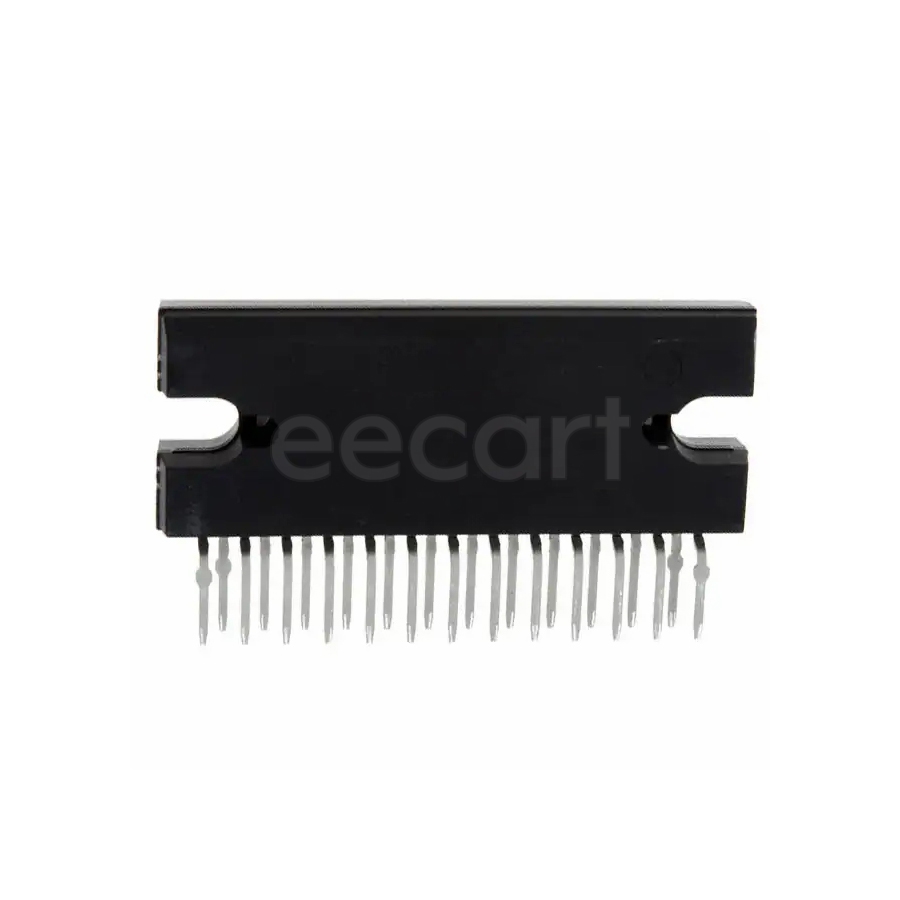

Motor Drivers HZIP-25 Through Hole Parallel Load voltage:4.5 V to 34 V Half Bridge (4)
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| RoHS | Compliant |
| Interface | Parallel |
| Output Current | 3 A |
| Logic Function | AND |
| Schedule B | 8542390000 |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Operating Supply Voltage | 4.5 V to 5.5 V |
| Load Voltage | 4.5 V to 34 V |
| Motor Type - Stepper | Bipolar |
| Applications | General Purpose |
| Chemistry/Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Packaging | Tube |
| Output Configuration | Half Bridge (4) |
Stock: 1316
Distributors
pcbx
pcbxUnit Price$4.52205
Ext.Price$4.52205
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.52205 | $4.52205 |
| 10 | $4.19108 | $41.91080 |
| 25 | $3.88433 | $97.10825 |
| 50 | $3.60004 | $180.00200 |
| 100 | $3.33655 | $333.65500 |
| 300 | $3.09235 | $927.70500 |
| 500 | $2.86602 | $1433.01000 |
| 1000 | $2.65632 | $2656.32000 |
