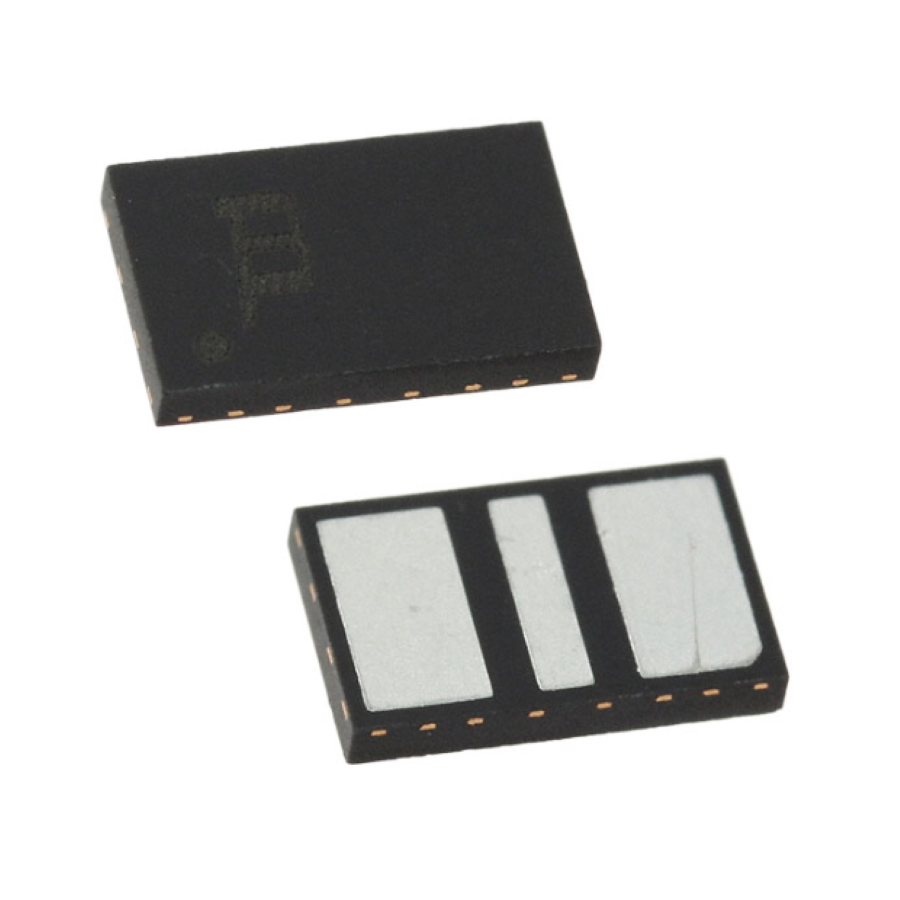

TBU-CA065-100-WH
Manufacturer:
Bourns
Mfr.Part #:
TBU-CA065-100-WH
Datasheet:
Description:
Surge Suppressors 6.50mmL×4.00mmW×0.80mmH SMD/SMT High Speed Protector 650 V 2
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 650 V |
| Length | 6.5 mm |
| Width | 4 mm |
| Termination | Solder |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 12 |
| Resistance | 11.5 Ω |
| Height | 850 µm |
| Packaging | Reel |
| Voltage Rating | 650 V |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 2.154564 g |
| Contact Plating | Tin |
| Type | High Speed Protector |
| Current Rating | 100 mA |
| Working Voltage | 300 V |
| Number of Circuits | 2 |
| Operating Supply Voltage | 650 V |
| Peak Pulse Current | 200 mA |
| Response Time | 1 µs |
| Element Configuration | Single |
| Direction(Counting Sequence) | Bidirectional |
| Reverse Standoff Voltage | 20 V |
| Clamping Voltage | 650 V |
| ESD Protection | Yes |
| Max Junction Temperature (Tj) | 125 °C |
Stock: 2078
Distributors
pcbx
pcbxUnit Price$1.85972
Ext.Price$1.85972
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.85972 | $1.85972 |
| 10 | $1.58095 | $15.80950 |
| 25 | $1.45311 | $36.32775 |
| 50 | $1.33560 | $66.78000 |
| 100 | $1.22760 | $122.76000 |
| 300 | $1.18633 | $355.89900 |
| 500 | $1.14645 | $573.22500 |
| 1000 | $1.11242 | $1112.42000 |
