TC1232COA713
Manufacturer:
Microchip
Mfr.Part #:
TC1232COA713
Datasheet:
Description:

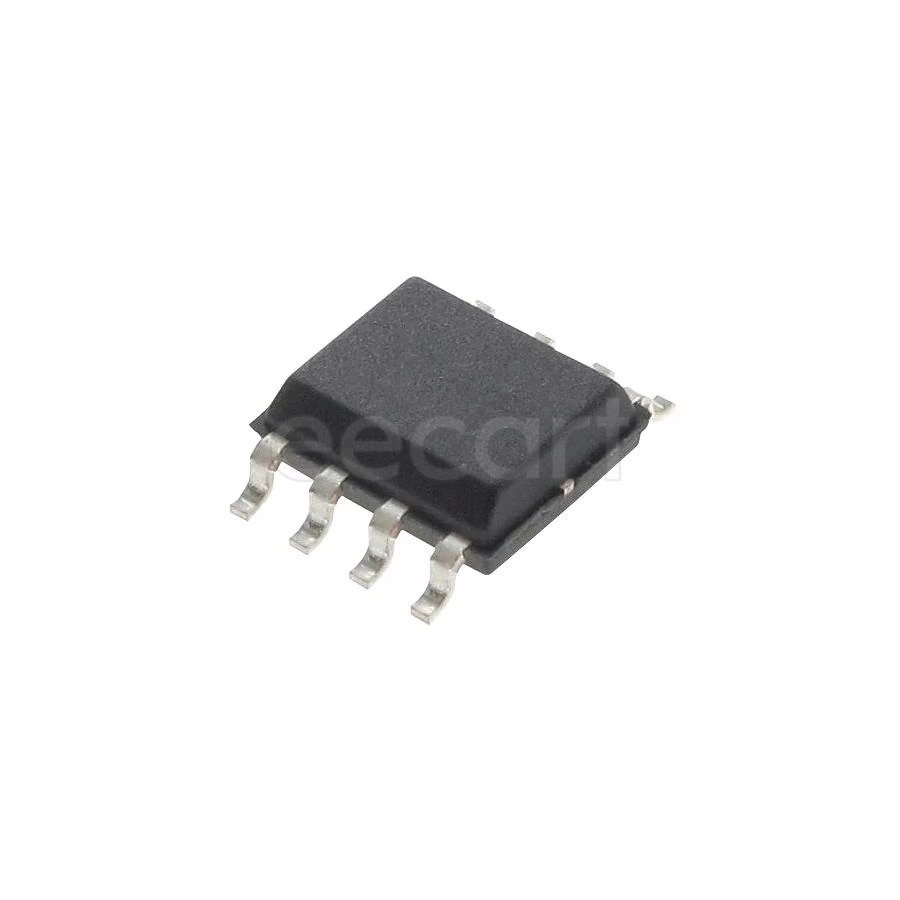

Voltage Supervisors SOIC-8 Narrow SMD/SMT 4.62 V Active High, Active Low, Open Drain, Push-Pull
| Parameter | Value |
|---|---|
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 8 |
| Packaging | Reel |
| Radiation Hardening | No |
| RoHS | Compliant |
| Type | Simple Reset/Power-On Reset |
| Number of Elements | 1 |
| Operating Supply Voltage | 5 V |
| Output Type | Active High, Active Low, Open Drain, Push-Pull |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4 V |
| Threshold Voltage | 4.62 V |
| Operating Supply Current | 200 µA |
| Quiescent Current | 50 µA |
| Max Supply Current | 200 µA |
| Reset | Active High , Active Low |
| Reset Timeout | 250 ms |
| Nominal Supply Current | 200 µA |
| Number of Voltages Monitored | 1 |
| Overvoltage Threshold | 4.49 V |
| Undervoltage Threshold | 4.25 V |
| Schedule B | 8542390000 |
| Watchdog Timer | Watchdog |
Stock: 10
Distributors
pcbx
pcbxUnit Price$1.44106
Ext.Price$1.44106
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.44106 | $1.44106 |
| 10 | $1.40986 | $14.09860 |
| 25 | $1.40037 | $35.00925 |
| 50 | $1.39094 | $69.54700 |
| 100 | $1.38157 | $138.15700 |
