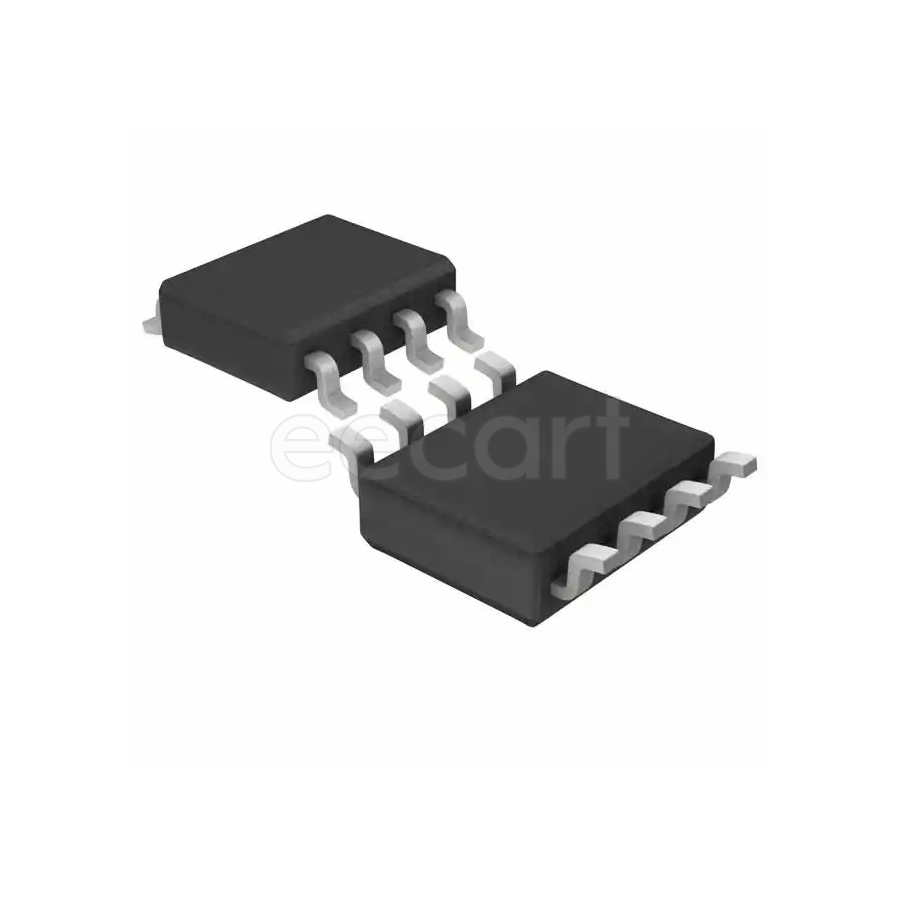

TC4427AVOA
Manufacturer:
Microchip
Mfr.Part #:
TC4427AVOA
Datasheet:
Description:
Gate Drivers SOIC-8 Narrow SMD/SMT Non-Inverting N-Channel, P-Channel MOSFET Independent
| Parameter | Value |
|---|---|
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 8 |
| Radiation Hardening | No |
| Max Power Dissipation | 470 mW |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 4.5 V |
| Power Dissipation | 470 mW |
| Max Output Current | 1.5 A |
| Turn-On Delay Time | 35 ns |
| Propagation Delay | 35 ns |
| Max Supply Current | 2 mA |
| Number of Outputs | 2 |
| Fall Time | 35 ns |
| Rise Time | 35 ns |
| Nominal Supply Current | 4.5 mA |
| Number of Drivers | 2 |
| Schedule B | 8542390000 |
| Logic Voltage | 0.8 V, 2.4 V |
| Peak Output Current | 1.5 A, 1.5 A |
| Gate Type | N-Channel, P-Channel MOSFET |
| Configuration | Non-Inverting |
| Output Current | 1.5 A |
| Channel Type | Independent |
| RoHS | Compliant |
| Packaging | Tube |
| Type | Low Side |
Stock: 3563
Distributors
pcbx
pcbxUnit Price$1.01394
Ext.Price$1.01394
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.01394 | $1.01394 |
| 10 | $0.92544 | $9.25440 |
| 25 | $0.84467 | $21.11675 |
| 50 | $0.80303 | $40.15150 |
| 100 | $0.76345 | $76.34500 |
