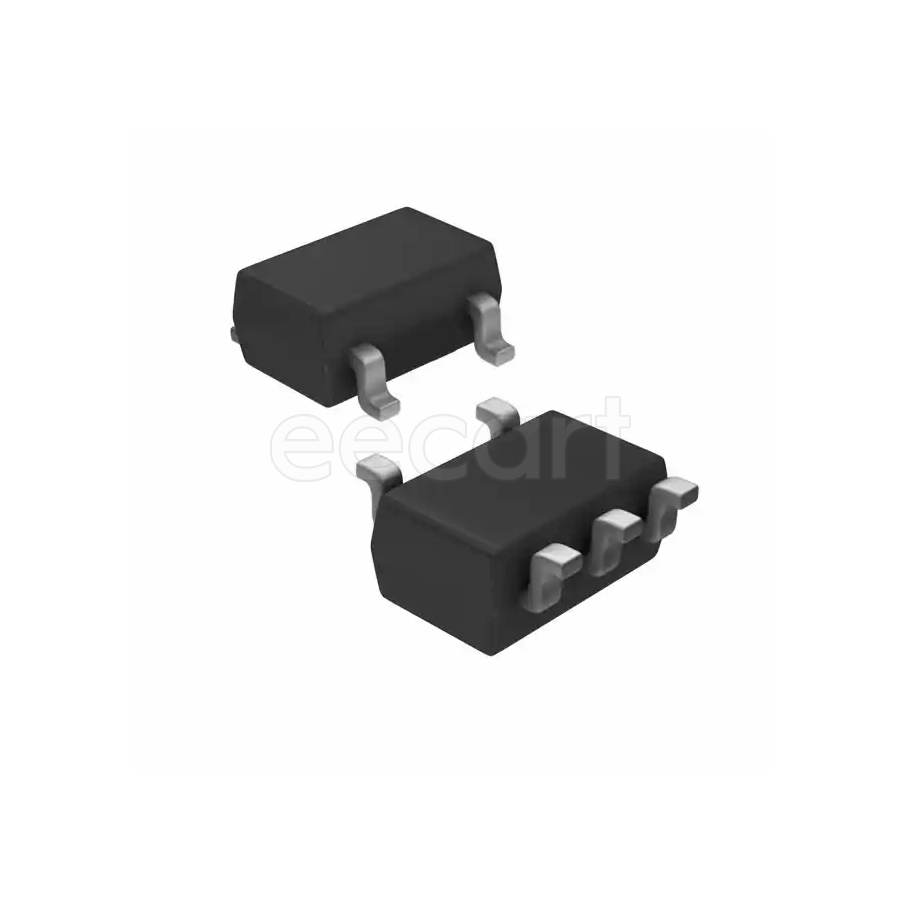

TC7SET08F,LJ(CT
Manufacturer:
Toshiba
Mfr.Part #:
TC7SET08F,LJ(CT
Datasheet:
Description:
Logic Gates, Inverters SMV SMD/SMT AND, NAND Low Level Output Current:8 mA High Level Output Current:8 mA Logic Level - Low:0.8 V Logic Level - High:2 V
| Parameter | Value |
|---|---|
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Number of Circuits | 1 |
| Max Power Dissipation | 200 mW |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 4.5 V |
| Quiescent Current | 2 µA |
| Propagation Delay | 9 ns |
| High Level Output Current | 8 mA |
| Low Level Output Current | 8 mA |
| Logic Function | AND, NAND |
| Number of Inputs | 2 |
| Number of Gates | 2 |
| Schedule B | 8542390000 |
| Logic Level - Low | 0.8 V |
| Logic Level - High | 2 V |
Stock: 1854
Distributors
pcbx
pcbxUnit Price$0.19104
Ext.Price$0.19104
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.19104 | $0.19104 |
| 10 | $0.16915 | $1.69150 |
| 50 | $0.14976 | $7.48800 |
| 100 | $0.12613 | $12.61300 |
| 500 | $0.10622 | $53.11000 |
| 1000 | $0.10162 | $101.62000 |
| 3000 | $0.09722 | $291.66000 |
| 5000 | $0.09124 | $456.20000 |
