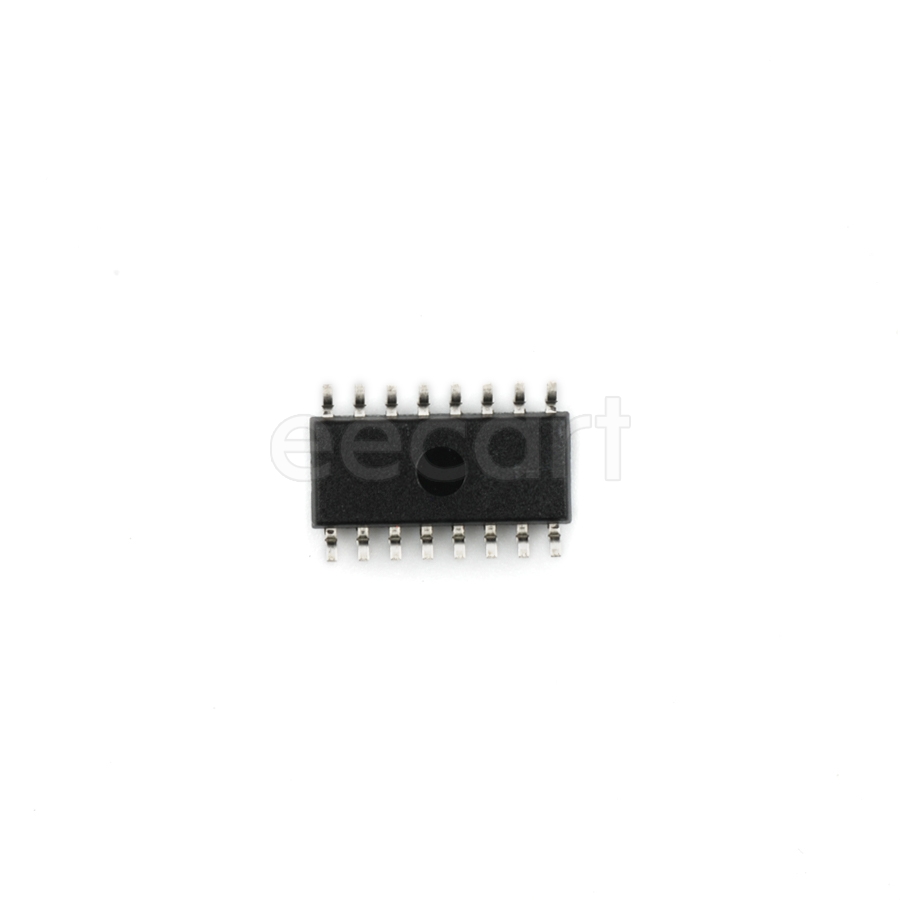

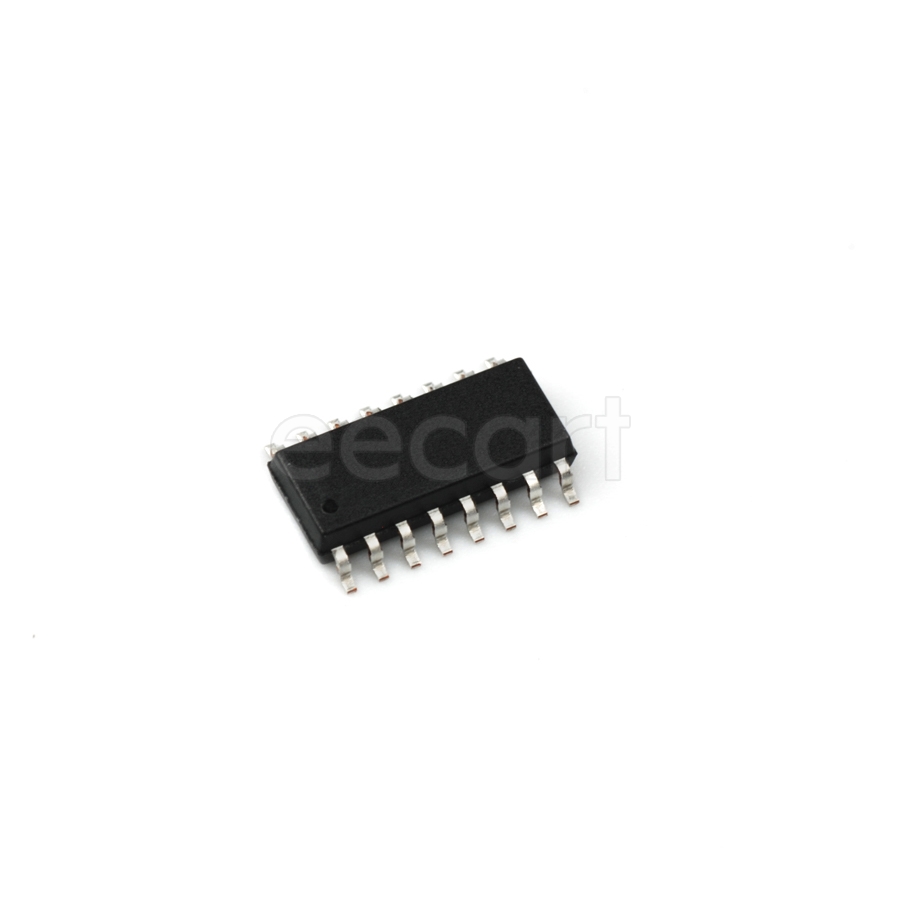

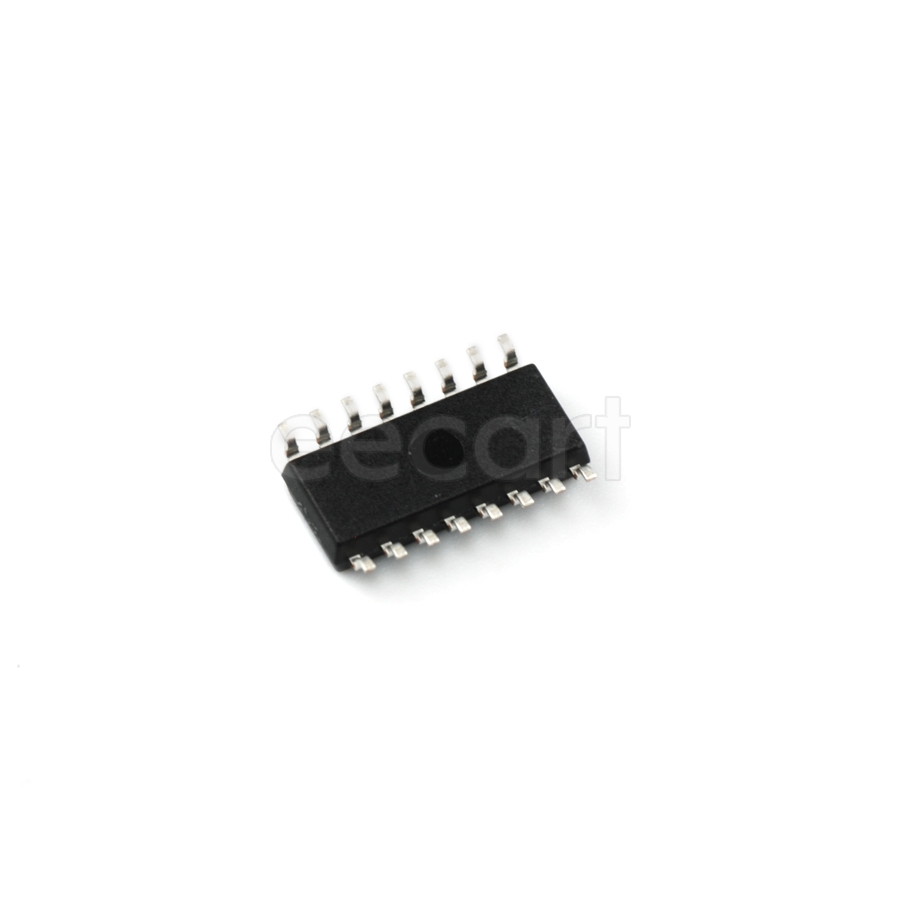

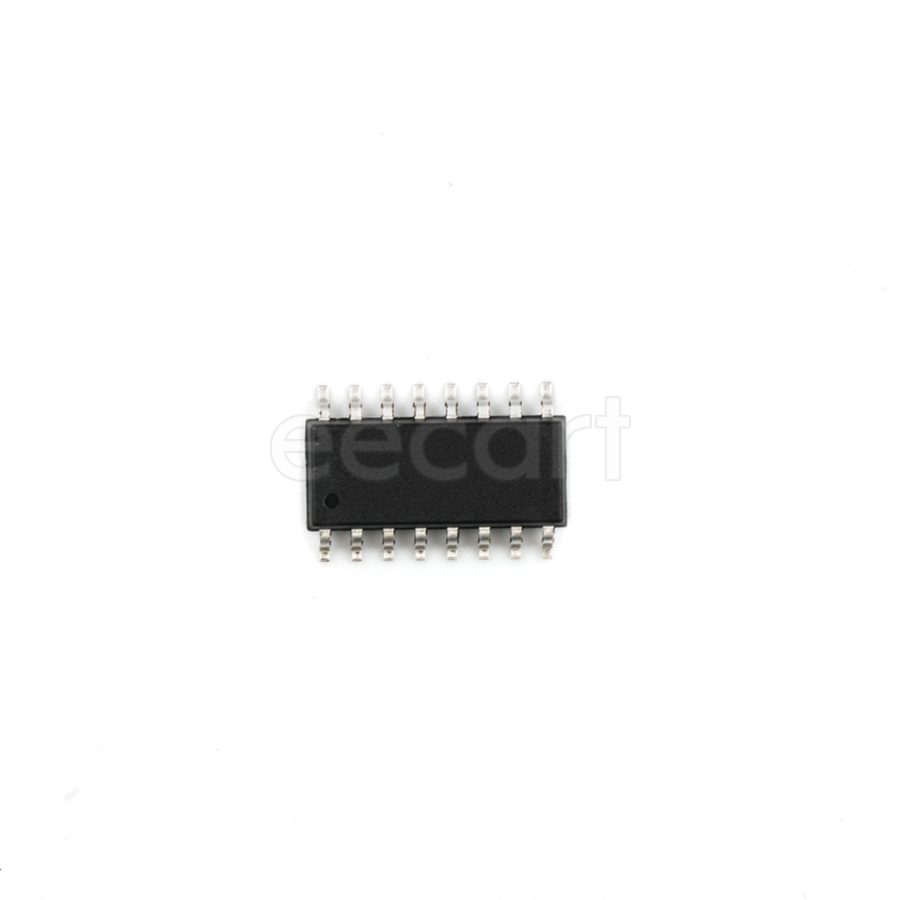

TCMT4100
Manufacturer:
Vishay
Mfr.Part #:
TCMT4100
Datasheet:
Description:
Optocouplers SOP-16 SMD/SMT number of channels:4 NPN Phototransistor 60 mA 1.6 V Rise Time:3 µs Fall Time :4.7 µs
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.25 V |
| Length | 10.4 mm |
| Width | 4.4 mm |
| Max Operating Temperature | 100 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 16 |
| Height | 1.9 mm |
| Packaging | Reel |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Weight | 477.009076 mg |
| Contact Plating | Tin |
| Number of Elements | 4 |
| Output Voltage | 70 V |
| Forward Current | 60 mA |
| Forward Voltage | 1.6 V |
| Output Type | NPN Phototransistor |
| Max Power Dissipation | 250 mW |
| Power Dissipation | 250 mW |
| Number of Channels | 4 |
| Max Collector Current | 50 mA |
| Collector Emitter Breakdown Voltage | 70 V |
| Fall Time | 4.7 µs |
| Rise Time | 3 µs |
| Collector Emitter Voltage (VCEO) | 70 V |
| Isolation Voltage | 3.75 kV |
| Current Transfer Ratio | 600 % |
| Output Current per Channel | 50 mA |
| Input Current | 50 mA |
| Reverse Breakdown Voltage | 6 V |
| Max Input Current | 60 mA |
| Max Output Voltage | 70 V |
| Reverse Voltage (DC) | 6 V |
| Collector Emitter Saturation Voltage | 300 mV |
| Schedule B | 8541408000 |
Stock: 1065
Distributors
pcbx
pcbxUnit Price$1.17859
Ext.Price$1.17859
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.17859 | $1.17859 |
| 10 | $0.96835 | $9.68350 |
| 25 | $0.84888 | $21.22200 |
| 50 | $0.74415 | $37.20750 |
| 100 | $0.65233 | $65.23300 |
| 300 | $0.62204 | $186.61200 |
| 500 | $0.59316 | $296.58000 |
| 1000 | $0.56735 | $567.35000 |
