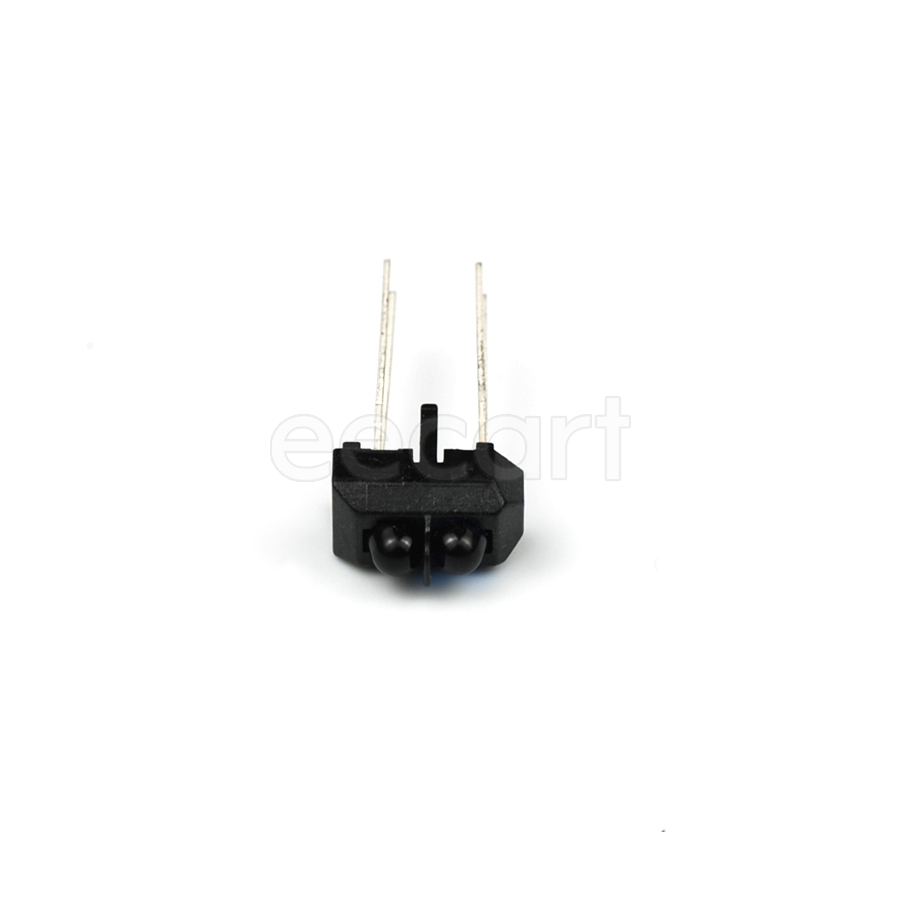

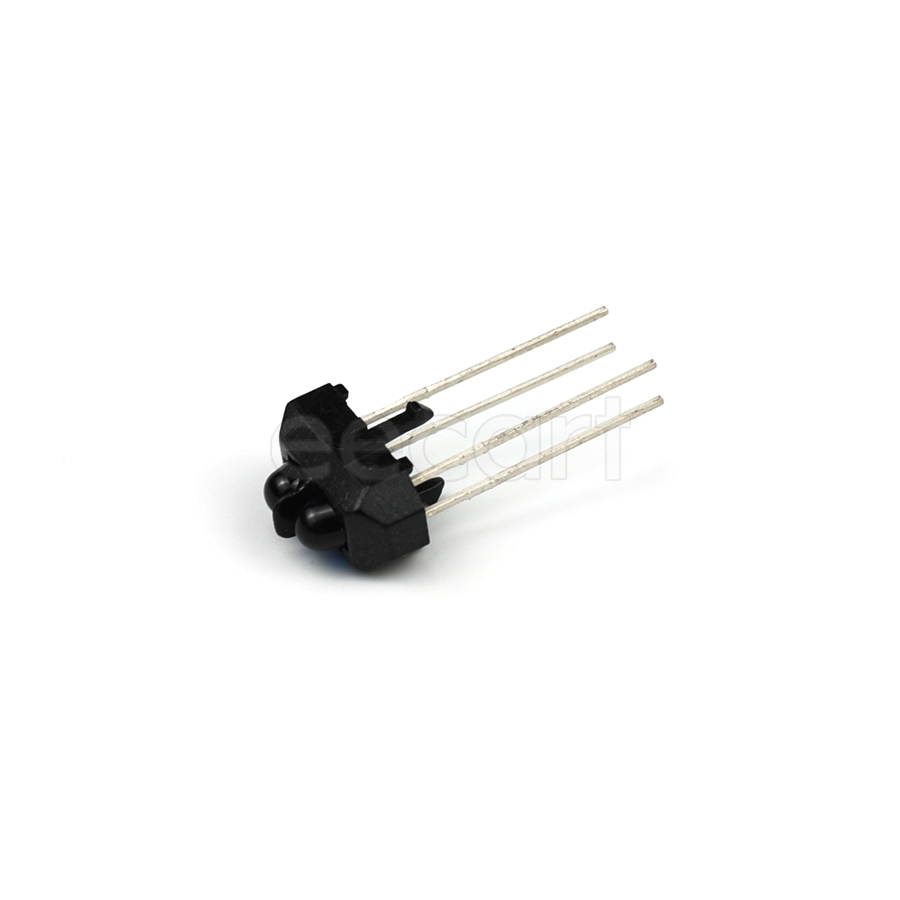

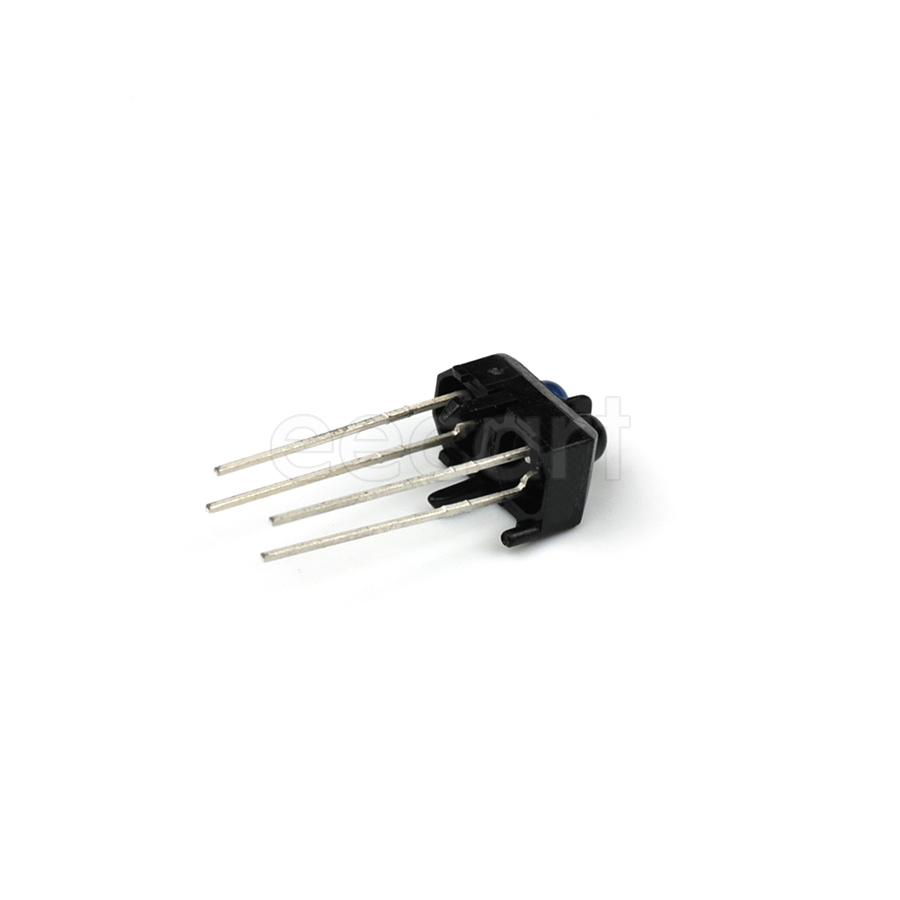

TCRT5000L
Manufacturer:
Vishay
Mfr.Part #:
TCRT5000L
Datasheet:
Description:
Optocouplers 10.20mmL×5.80mmW×7.00mmH Through Hole number of channels:1 Phototransistor 60 mA 1.25 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 1.25 V |
| Length | 10.2 mm |
| Width | 5.8 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Number of Pins | 4 |
| Height | 7 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Tin, Silver |
| Number of Elements | 1 |
| Output Voltage | 70 V |
| Forward Current | 60 mA |
| Forward Voltage | 1.25 V |
| Output Type | Phototransistor |
| Max Power Dissipation | 200 mW |
| Power Dissipation | 200 mW |
| Number of Channels | 1 |
| Max Collector Current | 100 mA |
| Collector Emitter Breakdown Voltage | 70 V |
| Wavelength | 950 nm |
| Collector Emitter Voltage (VCEO) | 70 V |
| Input Current | 60 mA |
| Reverse Breakdown Voltage | 5 V |
| Sensing Distance | 15 mm |
| Reverse Voltage (DC) | 5 V |
| Packaging | Bulk |
Stock: 2469
Distributors
pcbx
pcbxUnit Price$1.11408
Ext.Price$1.11408
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.11408 | $1.11408 |
| 10 | $0.92669 | $9.26690 |
| 25 | $0.83850 | $20.96250 |
| 50 | $0.75869 | $37.93450 |
| 100 | $0.64845 | $64.84500 |
| 300 | $0.60939 | $182.81700 |
| 500 | $0.57269 | $286.34500 |
