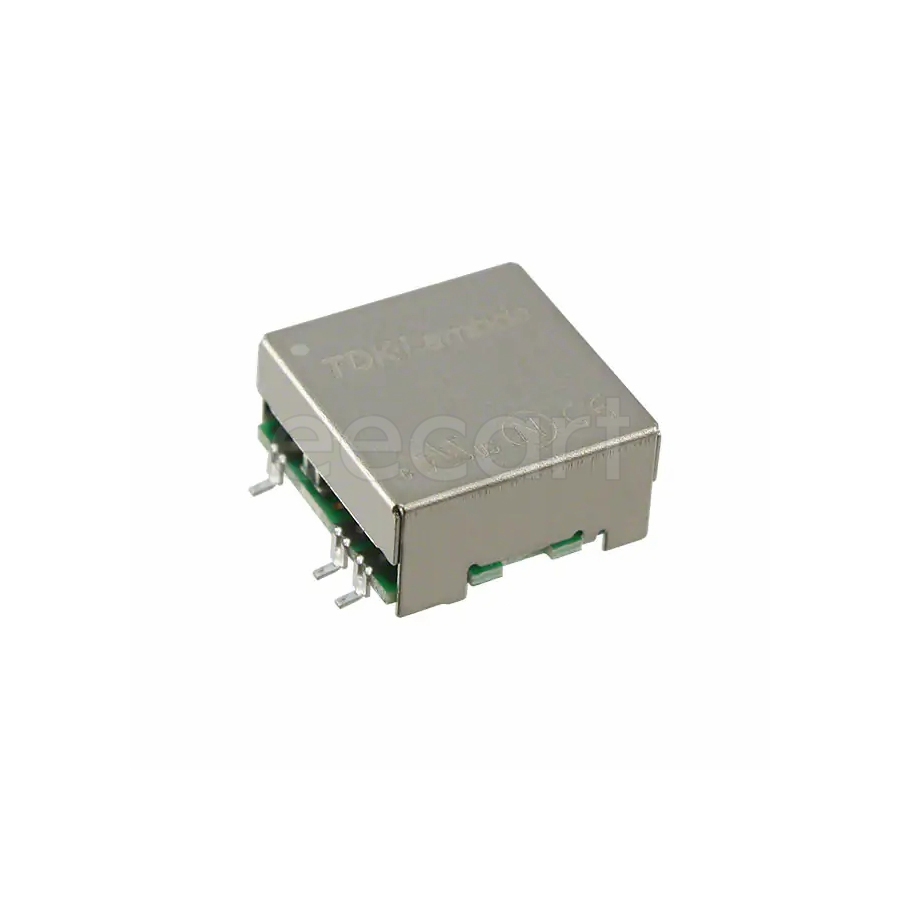

CC1R5-2412DR-E
Manufacturer:
TDK-Lambda
Mfr.Part #:
CC1R5-2412DR-E
Datasheet:
Description:
Board Mount Modules SMD-7 PCB Current - Output 2:60 mA Voltage - Output 2:-12 V Current - Output 1:60 mA Voltage - Output 1:12 V
| Parameter | Value |
|---|---|
| Length | 38.86 mm |
| Width | 22.6 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 7 |
| Power Rating | 1.5 W |
| Height | 8.89 mm |
| Packaging | Tray |
| Depth | 16.51 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Weight | 3.2 g |
| Min Input Voltage | 18 V |
| Output Current | 60 mA |
| Output Voltage | 12 V |
| Lifecycle Status | Production (Last Updated: 1 year ago) |
| Max Power Dissipation | 1.5 W |
| Power Dissipation | 1.5 W |
| Max Output Current | 60 mA |
| Max Input Voltage | 36 V |
| Number of Outputs | 2 |
| Isolation Voltage | 500 V |
| Output Power | 1.5 W |
| Current - Output 1 | 60 mA |
| Voltage - Output 1 | 12 V |
| Max Input Voltage (DC) | 36 V |
| Nominal Input Voltage | 24 V |
| Max Output Power | 1.5 W |
| Min Input Voltage (DC) | 18 V |
| Current - Output 2 | 60 mA |
| Voltage - Output 2 | -12 V |
| Isolation | Isolated |
| Schedule B | 8504409510 |
Stock: 178
Distributors
pcbx
pcbxUnit Price$6.72744
Ext.Price$6.72744
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $6.72744 | $6.72744 |
| 10 | $5.99562 | $59.95620 |
| 25 | $5.85590 | $146.39750 |
| 50 | $5.71948 | $285.97400 |
| 100 | $5.71350 | $571.35000 |
