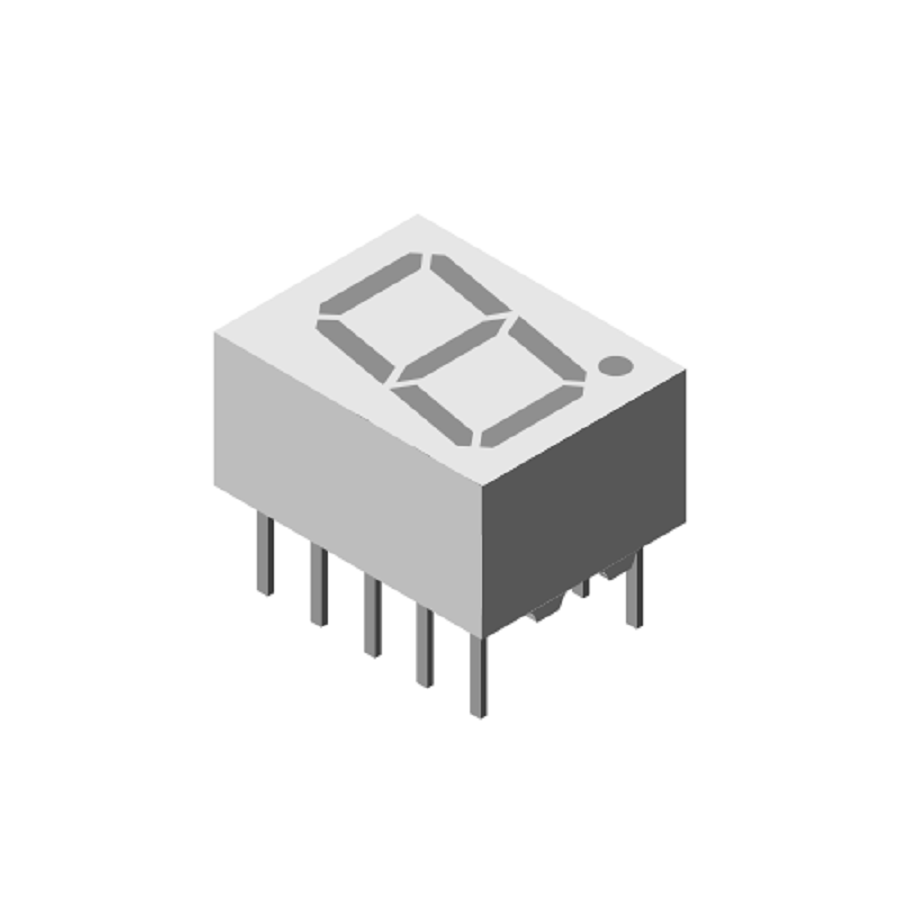

TDSG3150-M
Manufacturer:
Vishay
Mfr.Part #:
TDSG3150-M
Datasheet:
Description:
LED Displays Through Hole 7-Segment 10 mm Number of Characters:1
| Parameter | Value |
|---|---|
| Length | 12.8 mm |
| Width | 9.4488 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Height | 12.7 mm |
| Packaging | Bulk |
| Depth | 9.7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Number of Elements | 8 |
| Forward Current | 20 mA |
| Forward Voltage | 2.4 V |
| Max Power Dissipation | 480 mW |
| Color | Green |
| Luminous Intensity | 9 mcd |
| Power Dissipation | 480 mW |
| Element Configuration | Common Anode |
| Wavelength | 565 nm |
| Display Type | 7-Segment |
| Dominant Wavelength/CCT (K) | 575 nm |
| Reverse Voltage | 15 V |
| Test Current | 10 mA |
| Character Height | 10 mm |
| Number of Characters | 1 |
| Viewing Area (height) | 10 mm |
| Character Size | 10 mm |
Stock: 151
Distributors
pcbx
pcbxUnit Price$1.24563
Ext.Price$1.24563
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $1.24563 | $1.24563 |
| 10 | $0.75063 | $7.50630 |
| 25 | $0.72252 | $18.06300 |
| 50 | $0.69546 | $34.77300 |
| 100 | $0.66941 | $66.94100 |
| 300 | $0.63398 | $190.19400 |
| 500 | $0.60042 | $300.21000 |
| 1000 | $0.56864 | $568.64000 |
| 3000 | $0.53854 | $1615.62000 |
| 5000 | $0.51003 | $2550.15000 |
| 10000 | $0.48303 | $4830.30000 |
