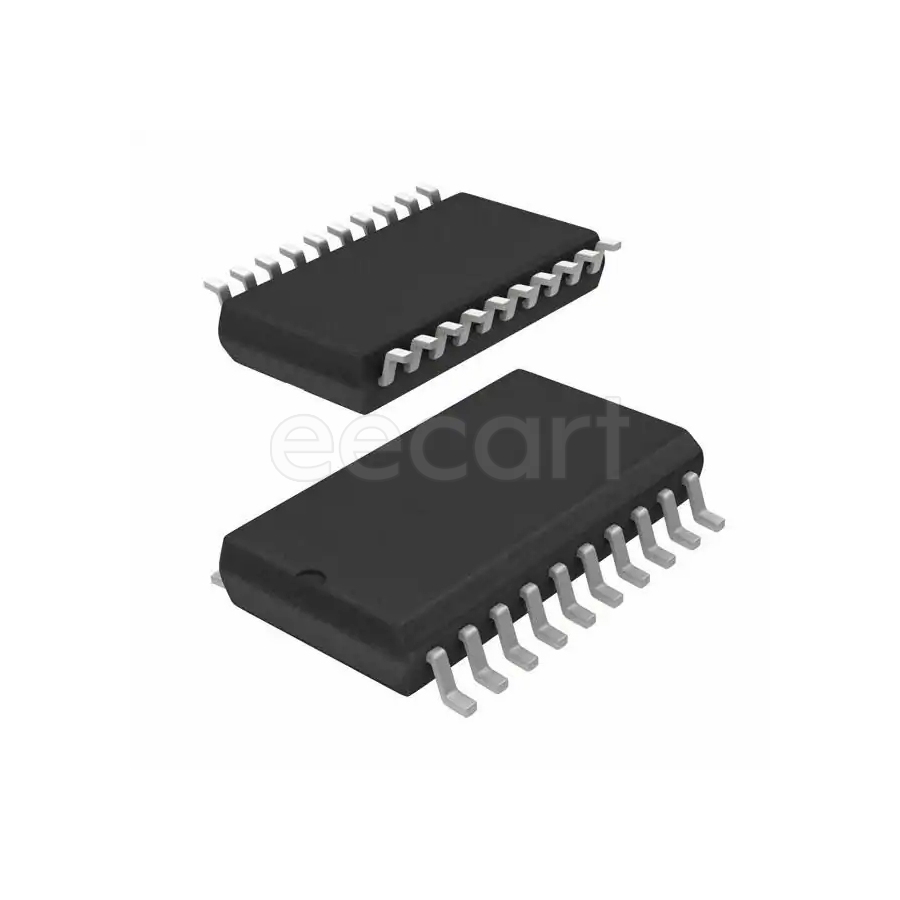

TEA3718SFP
Manufacturer:
STMicroelectronics
Mfr.Part #:
TEA3718SFP
Datasheet:
Description:
Motor Drivers SO-20 SMD/SMT Parallel Load voltage:10 V to 45 V Half Bridge (2)
| Parameter | Value |
|---|---|
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 20 |
| Radiation Hardening | No |
| RoHS | Compliant |
| Interface | Parallel |
| Output Current | 1.5 A |
| Operating Supply Voltage | 50 V |
| Number of Channels | 2 |
| Logic Function | AND |
| Nominal Supply Current | 25 mA |
| Max Supply Voltage | 5.25 V |
| Load Voltage | 10 V to 45 V |
| Motor Type - Stepper | Bipolar |
| Applications | General Purpose |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Chemistry/Technology | Bipolar |
| Step Resolution | 1, 1/2 |
| Min Supply Voltage | 4.75 V |
| Packaging | Tube |
| Output Configuration | Half Bridge (2) |
Out of Stock
