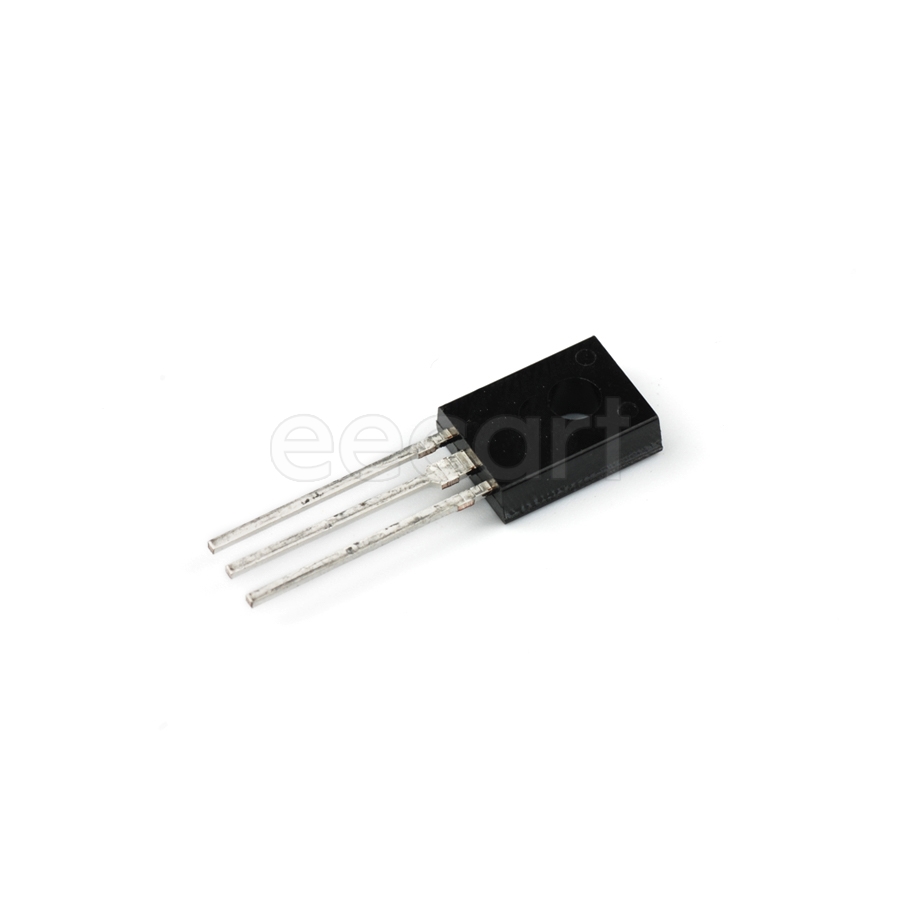

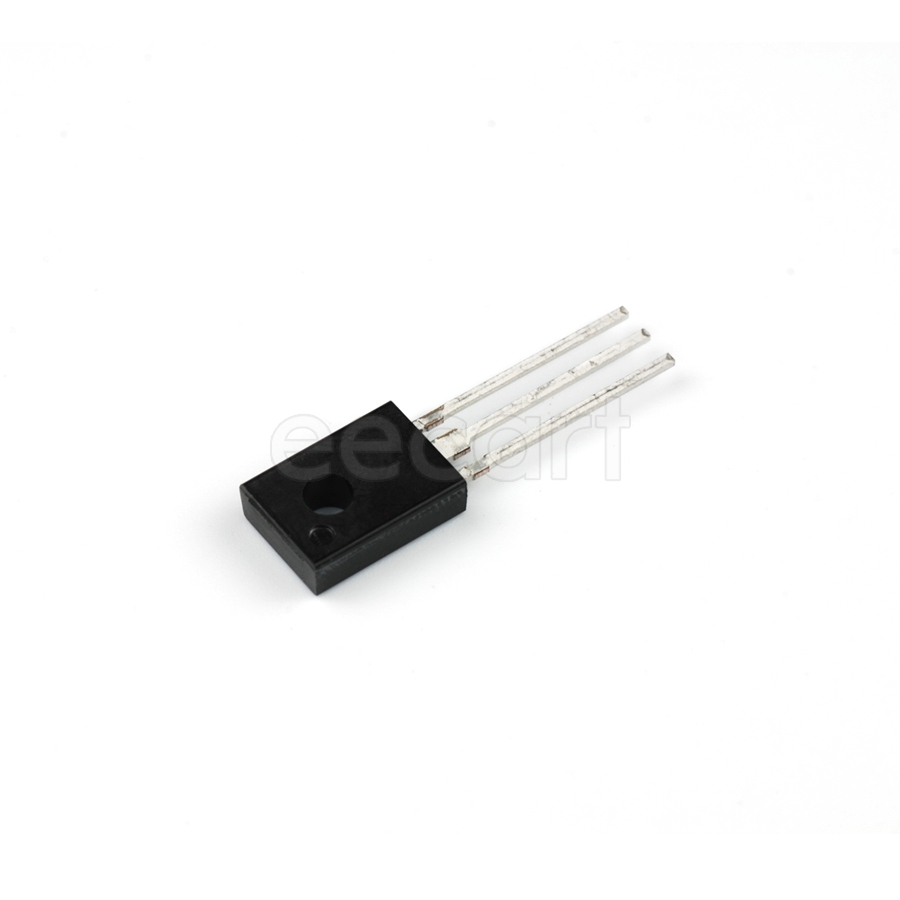

TIP122
Manufacturer:
STMicroelectronics
Mfr.Part #:
TIP122
Datasheet:
Description:
BJTs TO-126 Through Hole NPN 2 W Collector Base Voltage (VCBO):100 V Collector Emitter Voltage (VCEO):100 V Emitter Base Voltage (VEBO):5 V
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Length | 10.4 mm |
| Width | 4.6 mm |
| Max Operating Temperature | 150 °C |
| Min Operating Temperature | -65 °C |
| Number of Pins | 3 |
| Height | 9.15 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | NPN |
| REACH SVHC | No SVHC |
| Weight | 6 g |
| Contact Plating | Tin |
| Number of Elements | 1 |
| Current Rating | 5 A |
| Lifecycle Status | Production (Last Updated: 2 months ago) |
| Max Power Dissipation | 65 W |
| Power Dissipation | 2 W |
| Max Collector Current | 5 A |
| Collector Emitter Breakdown Voltage | 100 V |
| Element Configuration | Single |
| Collector Emitter Voltage (VCEO) | 100 V |
| Max Junction Temperature (Tj) | 150 °C |
| Collector Base Voltage (VCBO) | 100 V |
| Collector Emitter Saturation Voltage | 2 V |
| Emitter Base Voltage (VEBO) | 5 V |
| hFE Min | 1000 |
| Schedule B | 8541290080 |
| Max Cutoff Collector Current | 500 µA |
| Transistor Type | NPN |
Stock: 8612
Distributors
pcbx
pcbxUnit Price$0.29472
Ext.Price$0.29472
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.29472 | $0.29472 |
| 10 | $0.26020 | $2.60200 |
| 50 | $0.22973 | $11.48650 |
| 100 | $0.19849 | $19.84900 |
| 500 | $0.17150 | $85.75000 |
| 1000 | $0.16776 | $167.76000 |
| 3000 | $0.16410 | $492.30000 |
| 5000 | $0.16052 | $802.60000 |
