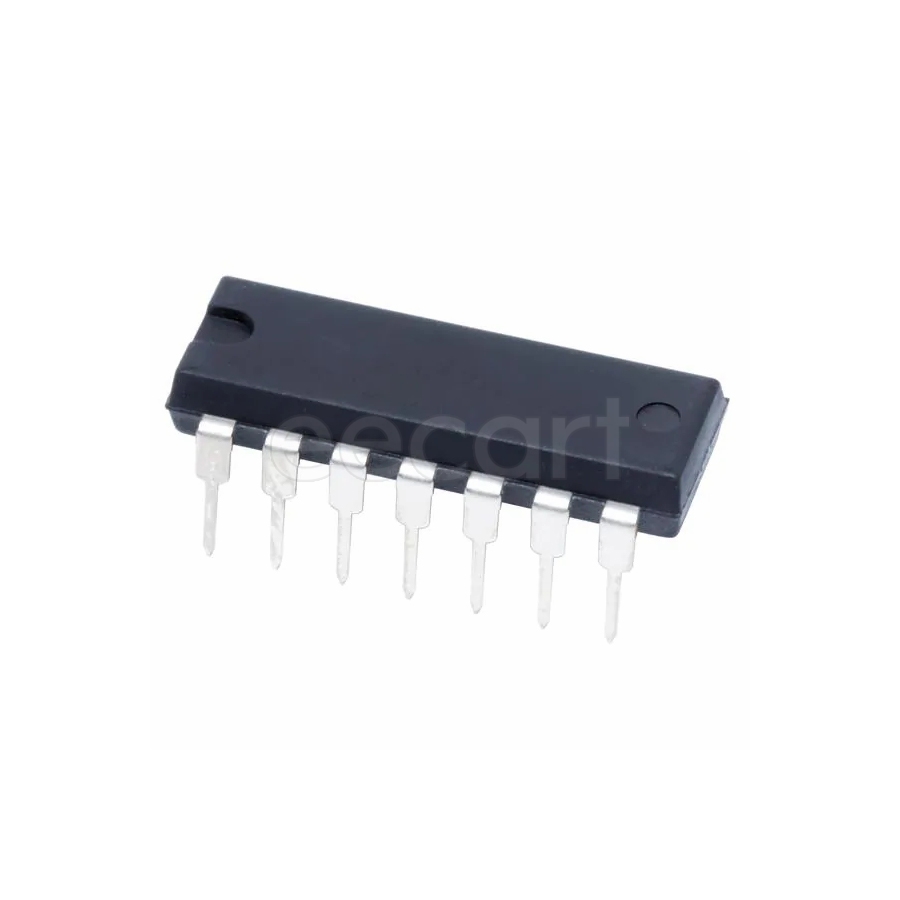

TL074CN
Manufacturer:
STMicroelectronics
Mfr.Part #:
TL074CN
Datasheet:
Description:
Amplifiers - Op Amps, Buffer, Instrumentation DIP-14 Through Hole JFET Amplifier Number of Circuits:4
| Parameter | Value |
|---|---|
| Length | 20 mm |
| Width | 7.1 mm |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 14 |
| Height | 5.1 mm |
| Packaging | Tube |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| REACH SVHC | No SVHC |
| Number of Elements | 4 |
| Min Input Voltage | -12 V |
| Output Current | 40 mA |
| Number of Circuits | 4 |
| Bandwidth | 3 MHz |
| Operating Supply Voltage | 6 V to 36 V |
| Max Supply Voltage | 18 V |
| Min Supply Voltage | 3 V |
| Power Dissipation | 680 mW |
| Number of Channels | 4 |
| Slew Rate | 13 V/µs |
| Common Mode Rejection Ratio (CMRR) | 70 dB |
| Operating Supply Current | 1.4 mA |
| Input Bias Current | 200 pA |
| Max Input Voltage | 15 V |
| Rise Time | 100 ns |
| Dual Supply Voltage | 9 V |
| Nominal Supply Current | 2.5 mA |
| Output Current per Channel | 40 mA |
| Gain Bandwidth Product | 3 MHz |
| Input Offset Voltage (Vos) | 10 mV (10000 µV) |
| Max Dual Supply Voltage | 18 V |
| Min Dual Supply Voltage | 3 V |
| Voltage Gain | 106.02 dB |
| Number of Amplifiers | 4 |
| Amplifier Type | JFET Amplifier |
| RoHS | Compliant |
