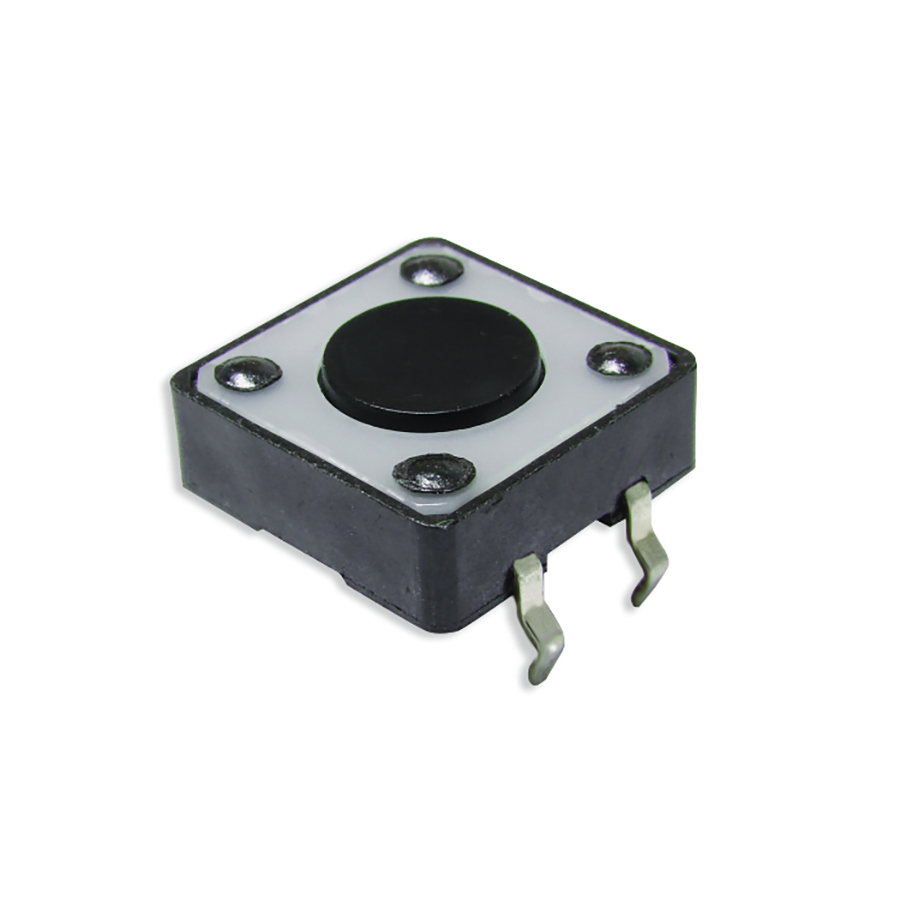

TL1100EF160Q
Manufacturer:
E-Switch
Mfr.Part #:
TL1100EF160Q
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 12 mm |
| Width | 12 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Voltage Rating | 12 V |
| RoHS | Compliant |
| Insulation Resistance | 100 MΩ |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 50 V |
| Orientation | Straight |
| Color | Black |
| Actuator Length | 3.5 mm |
| Throw Configuration | SPST |
| Housing Material | Polybutylene |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Switch Travel | 300 µm |
| Actuator Material | Polyester |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 637
Distributors
pcbx
pcbxUnit Price$0.33171
Ext.Price$0.33171
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.33171 | $0.33171 |
| 10 | $0.27870 | $2.78700 |
| 25 | $0.26161 | $6.54025 |
| 50 | $0.24800 | $12.40000 |
| 100 | $0.23510 | $23.51000 |
| 300 | $0.22125 | $66.37500 |
| 500 | $0.20822 | $104.11000 |
| 1000 | $0.19596 | $195.96000 |
| 3000 | $0.18442 | $553.26000 |
| 5000 | $0.17355 | $867.75000 |
