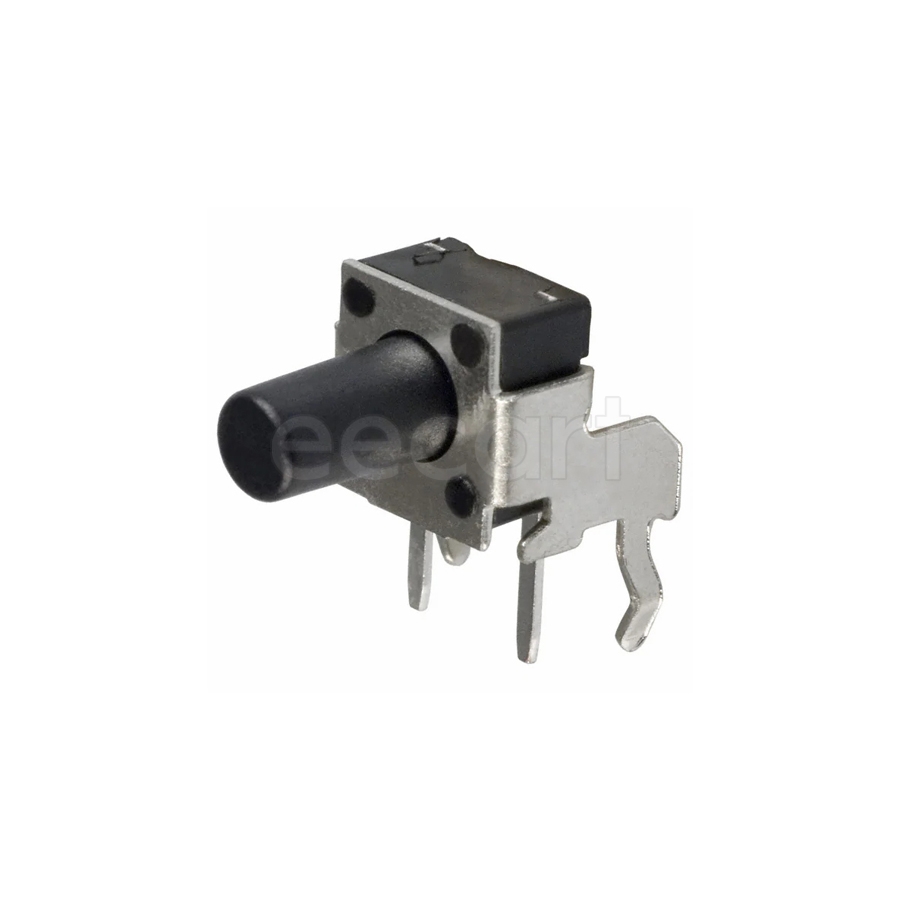

TL1105SF160Q
Manufacturer:
E-Switch
Mfr.Part #:
TL1105SF160Q
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.6 N Right Angle
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 50 V |
| Orientation | Right Angle |
| Color | Black |
| Actuator Length | 4.75 mm |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 50 mA |
| Mounting Direction | Right Angle |
| Operating Force | 1.6 N |
| Actuator Type | Standard |
Stock: 3093
Distributors
pcbx
pcbxUnit Price$0.26930
Ext.Price$0.26930
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.26930 | $0.26930 |
| 10 | $0.23169 | $2.31690 |
| 25 | $0.20347 | $5.08675 |
| 50 | $0.19563 | $9.78150 |
| 100 | $0.18809 | $18.80900 |
| 300 | $0.17843 | $53.52900 |
| 500 | $0.16927 | $84.63500 |
| 1000 | $0.16158 | $161.58000 |
| 3000 | $0.14586 | $437.58000 |
| 5000 | $0.13166 | $658.30000 |
