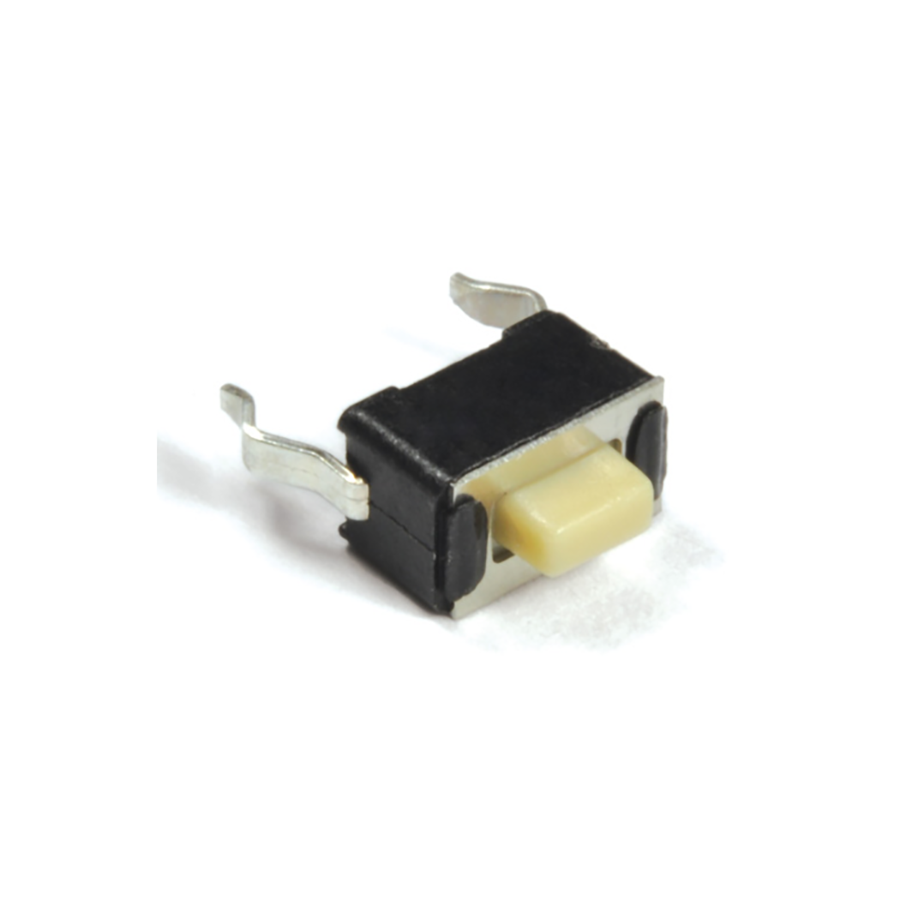

TL1107AF180WQ
Manufacturer:
E-Switch
Mfr.Part #:
TL1107AF180WQ
Datasheet:
Description:
Tactile Switches Through Hole SPST-NO Off-Mom 1.8 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Width | 3.5 mm |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Bulk |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 1.21 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 50 kcycles |
| Operating Force | 1.8 N |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 50 kcycles |
| Contact Current Rating | 50 mA |
| Actuator Type | Rectangular Button |
| Mounting Direction | Straight |
Stock: 1602
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.20347 | $2.03470 |
| 50 | $0.18652 | $9.32600 |
| 100 | $0.17099 | $17.09900 |
| 500 | $0.15047 | $75.23500 |
| 1000 | $0.12226 | $122.26000 |
| 3000 | $0.11790 | $353.70000 |
| 5000 | $0.11370 | $568.50000 |
