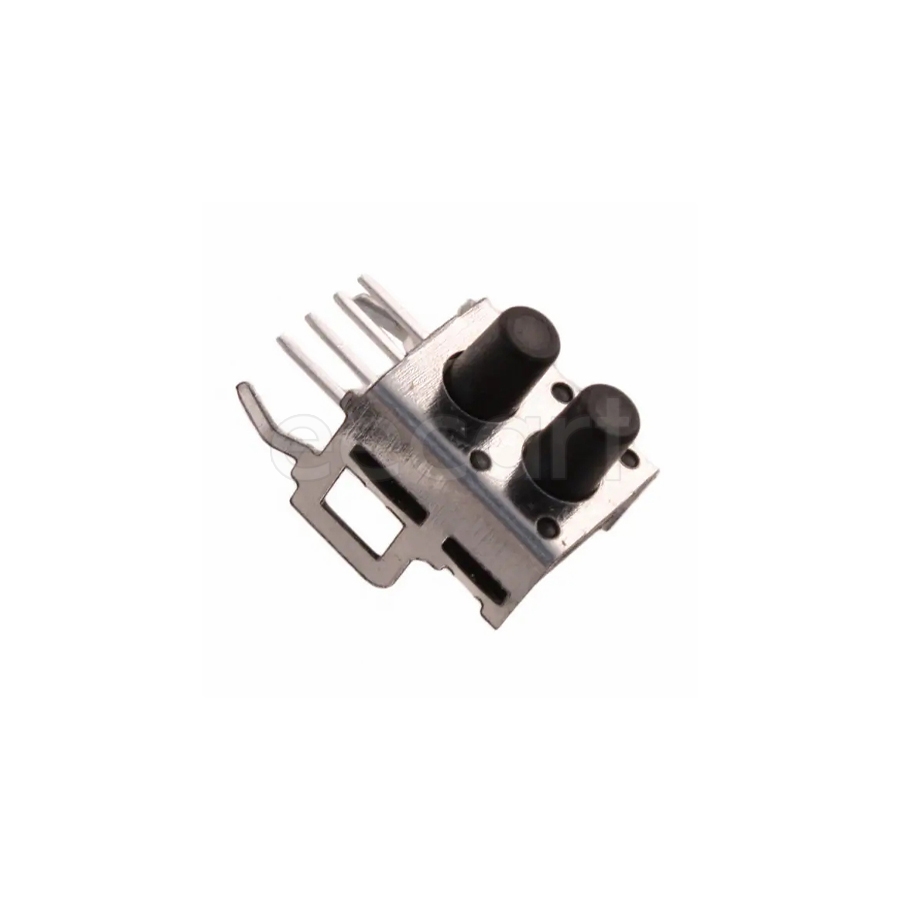

TL2243
Manufacturer:
E-Switch
Mfr.Part #:
TL2243
Datasheet:
Description:
Tactile Switches Through Hole Off-Mom
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 100 V |
| Termination | PC Pin |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Right Angle |
| Actuator Length | 3.8 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 30 kcycles |
| Switch Travel | 250 µm |
| Mechanical Life | 30 kcycles |
| Packaging | Tray |
| Actuator Type | Round |
Stock: 971
Distributors
pcbx
pcbxUnit Price$0.42576
Ext.Price$0.42576
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.42576 | $0.42576 |
| 10 | $0.36933 | $3.69330 |
| 25 | $0.32744 | $8.18600 |
| 50 | $0.32314 | $16.15700 |
| 100 | $0.31889 | $31.88900 |
| 300 | $0.30072 | $90.21600 |
| 500 | $0.28359 | $141.79500 |
| 1000 | $0.26743 | $267.43000 |
| 3000 | $0.25220 | $756.60000 |
| 5000 | $0.25135 | $1256.75000 |
