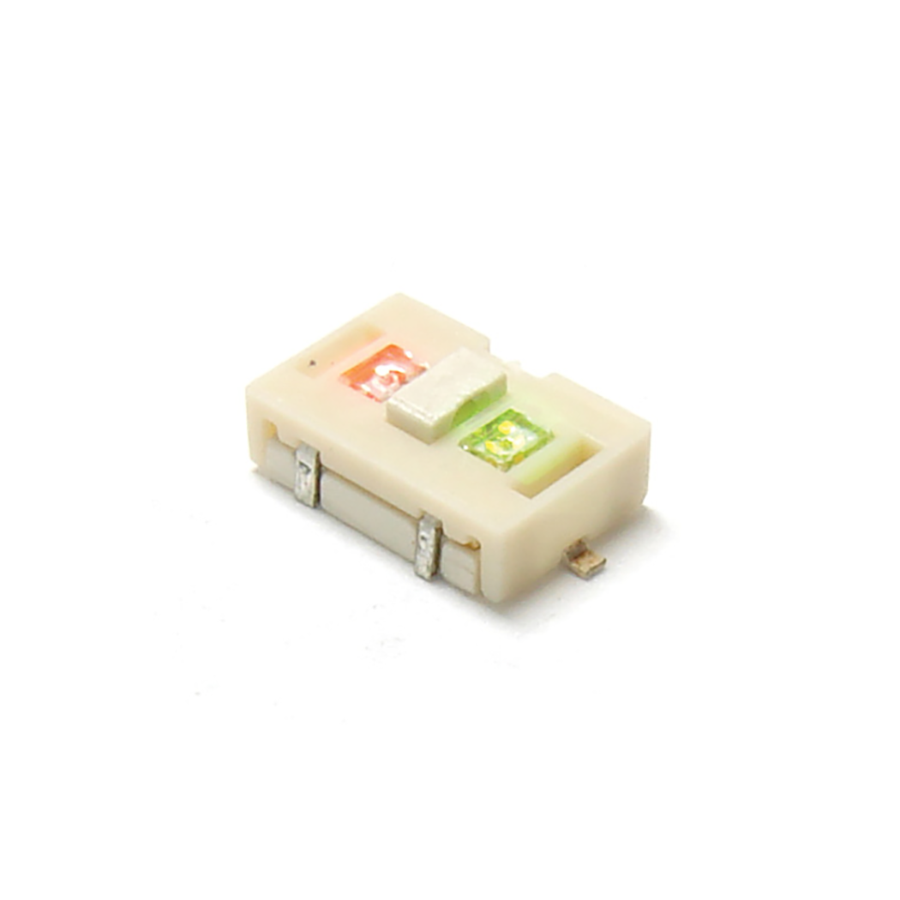

TL3200AF160WWQ
Manufacturer:
E-Switch
Mfr.Part #:
TL3200AF160WWQ
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 160 gf
| Parameter | Value |
|---|---|
| Termination | Gull Wing |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Material(Contact Finish) | Silver |
| Max Voltage Rating (DC) | 12 V |
| Illumination Color | White |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | LED |
| Operating Force | 160 gf |
| Switch Travel | 250 µm |
| Actuator Material | Liquid Crystal Polymer, Polymer |
| Mechanical Life | 30 kcycles |
| Actuator Type | Rectangular Button |
| Illumination Voltage | 3.7 V |
Stock: 1823
Distributors
pcbx
pcbxUnit Price$4.50464
Ext.Price$4.50464
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.50464 | $4.50464 |
| 10 | $3.74663 | $37.46630 |
| 25 | $3.47010 | $86.75250 |
| 50 | $3.27866 | $163.93300 |
| 100 | $3.09781 | $309.78100 |
| 300 | $2.92550 | $877.65000 |
| 500 | $2.76280 | $1381.40000 |
| 1000 | $2.60087 | $2600.87000 |
| 3000 | $2.44844 | $7345.32000 |
