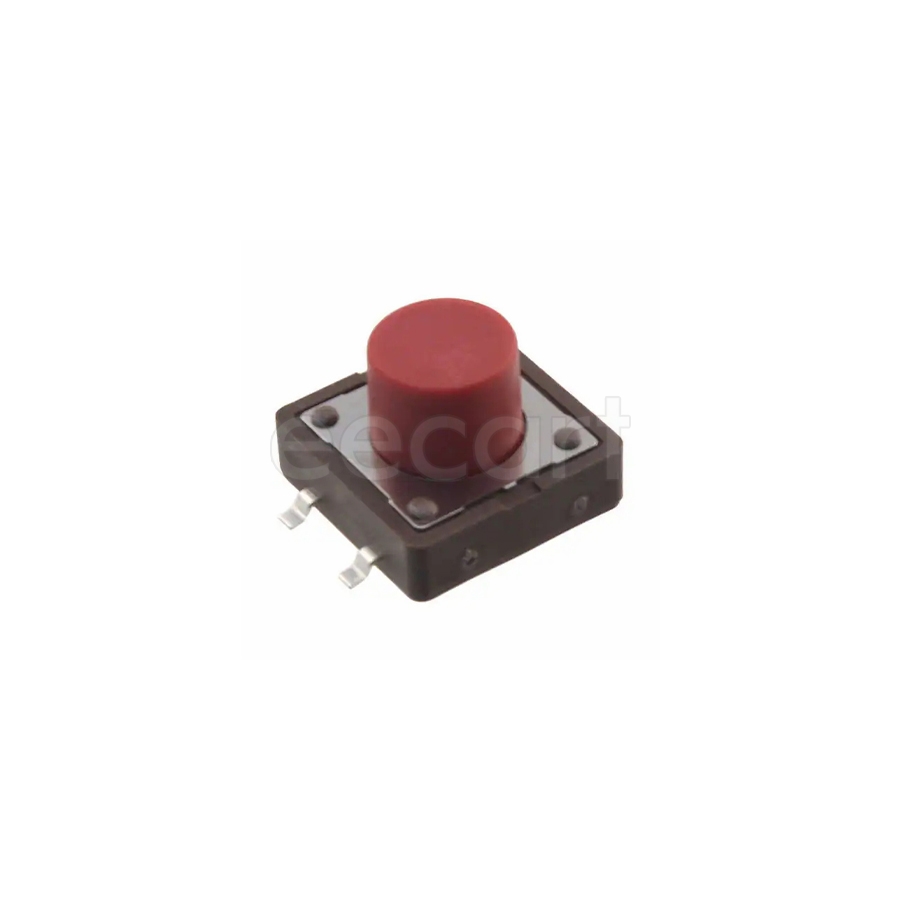

TL3300CF260Q
Manufacturer:
E-Switch
Mfr.Part #:
TL3300CF260Q
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 2.5 N
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Silver |
| Current Rating | 50 mA |
| Throw Configuration | SPST |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Operating Force | 2.5 N |
| Switch Travel | 350 µm |
| Mechanical Life | 100 kcycles |
| Actuator Type | Standard |
Stock: 1241
Distributors
pcbx
pcbxUnit Price$0.31889
Ext.Price$0.31889
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.31889 | $0.31889 |
| 10 | $0.31376 | $3.13760 |
| 25 | $0.30436 | $7.60900 |
| 50 | $0.29170 | $14.58500 |
| 100 | $0.27956 | $27.95600 |
| 300 | $0.26296 | $78.88800 |
| 500 | $0.24735 | $123.67500 |
| 1000 | $0.23267 | $232.67000 |
| 3000 | $0.21886 | $656.58000 |
