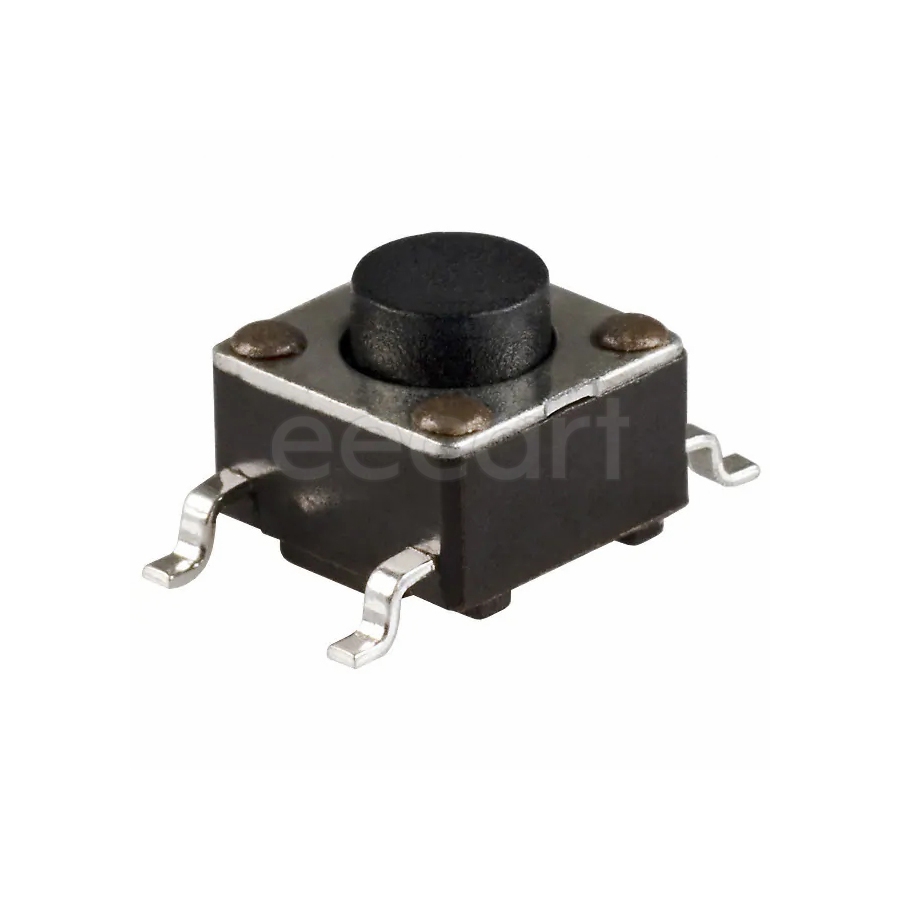

TL3301AF260QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3301AF260QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO Off-Mom 260 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Beige |
| Actuator Length | 1.4 mm |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Illuminated, Non-Illuminated |
| Electrical Life | 100 kcycles |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Mounting Direction | Straight |
| Actuator Type | Standard |
| Operating Force | 260 gf |
| Packaging | Reel |
Stock: 10786
Distributors
pcbx
pcbxUnit Price$0.23767
Ext.Price$0.23767
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.23767 | $0.23767 |
| 10 | $0.20433 | $2.04330 |
| 50 | $0.18738 | $9.36900 |
| 100 | $0.17184 | $17.18400 |
| 500 | $0.15047 | $75.23500 |
| 1000 | $0.12932 | $129.32000 |
| 3000 | $0.11114 | $333.42000 |
