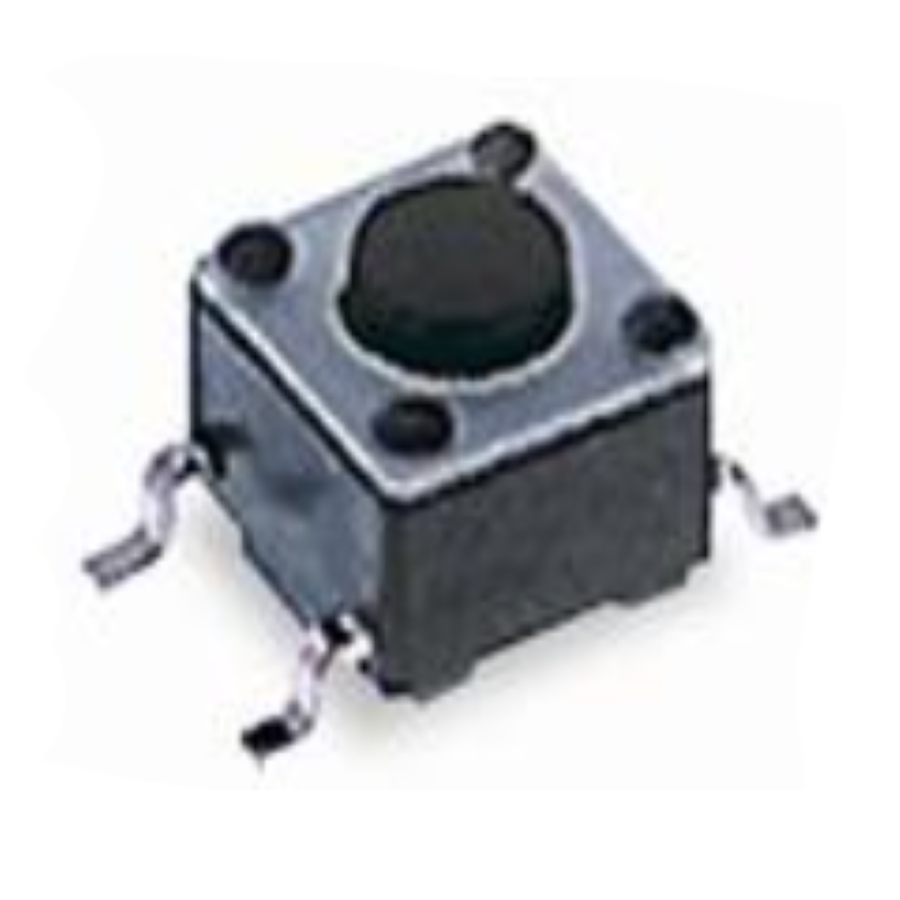

TL3301DF160QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3301DF160QG
Datasheet:
Description:
Tactile Switches SMD/SMT Off-Mom 160 gf Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -25 °C |
| Packaging | Reel |
| RoHS | Compliant |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Actuator Length | 9.4 mm |
| Throw Configuration | SPST |
| Contact Resistance | 100 mΩ |
| Switch Function | Off-Mom |
| Illumination Type | Non-Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 160 gf |
| Switch Travel | 250 µm |
| Actuator Material | Nylon, Polyamide |
| Mechanical Life | 100 kcycles |
| Actuator Type | Stem |
| Mounting Direction | Straight |
Stock: 4948
Distributors
pcbx
pcbxUnit Price$0.28811
Ext.Price$0.28811
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.28811 | $0.28811 |
| 10 | $0.24622 | $2.46220 |
| 25 | $0.22997 | $5.74925 |
| 50 | $0.21768 | $10.88400 |
| 100 | $0.20604 | $20.60400 |
| 300 | $0.15987 | $47.96100 |
| 500 | $0.14688 | $73.44000 |
| 1000 | $0.13494 | $134.94000 |
| 3000 | $0.12397 | $371.91000 |
