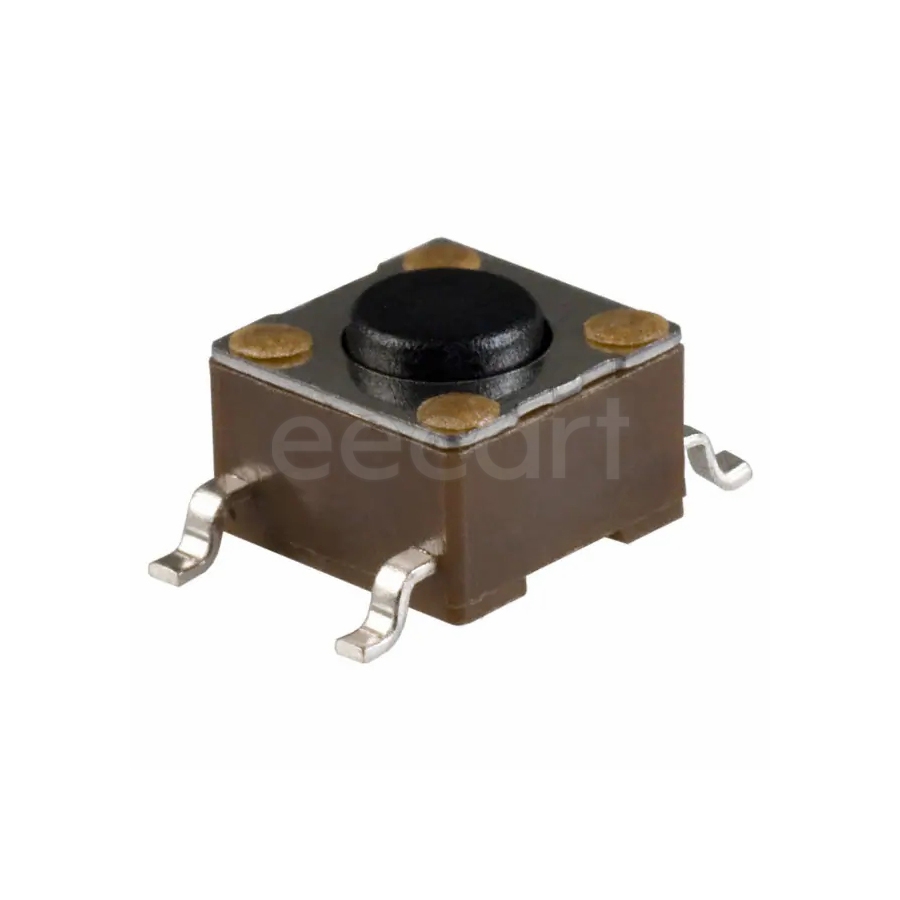

TL3301NF160QG
Manufacturer:
E-Switch
Mfr.Part #:
TL3301NF160QG
Datasheet:
Description:
Tactile Switches SMD/SMT SPST-NO OFF - (ON) 1.6 N Straight
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 12 V |
| Length | 6 mm |
| Width | 6 mm |
| Termination | Solder |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | -20 °C |
| Circuit Type | SPST-NO |
| Packaging | Reel |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Bronze, Silver |
| Current Rating | 50 mA |
| Max Voltage Rating (DC) | 12 V |
| Orientation | Straight |
| Color | Black |
| Throw Configuration | SPST |
| Housing Material | Nylon |
| Contact Resistance | 100 mΩ |
| Switch Function | OFF - (ON) |
| Illumination Type | Illuminated |
| Electrical Life | 100 kcycles |
| Operating Force | 1.6 N |
| Contact Current Rating | 50 mA |
| Actuator Type | Standard |
| Mounting Direction | Straight |
Stock: 24281
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.12995 | $1.29950 |
| 50 | $0.12155 | $6.07750 |
| 100 | $0.11370 | $11.37000 |
| 500 | $0.09404 | $47.02000 |
| 1000 | $0.08680 | $86.80000 |
| 3000 | $0.08011 | $240.33000 |
